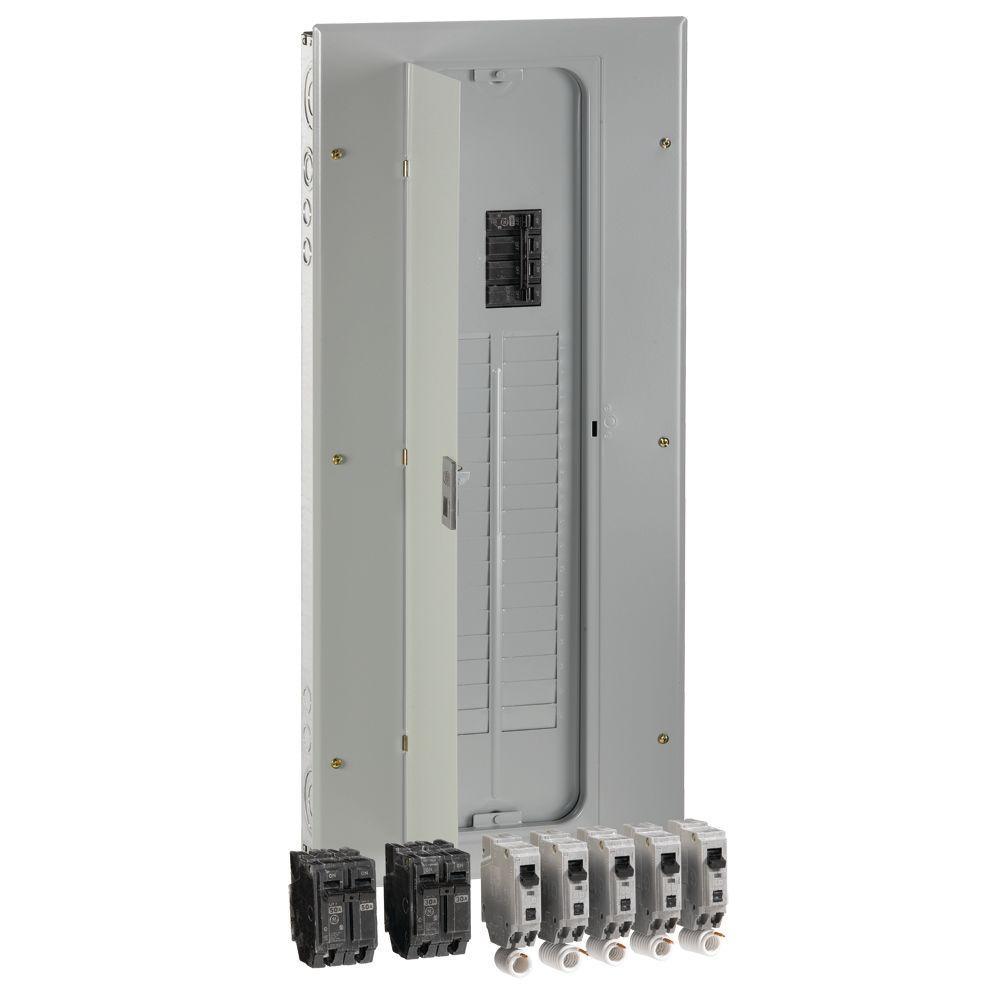

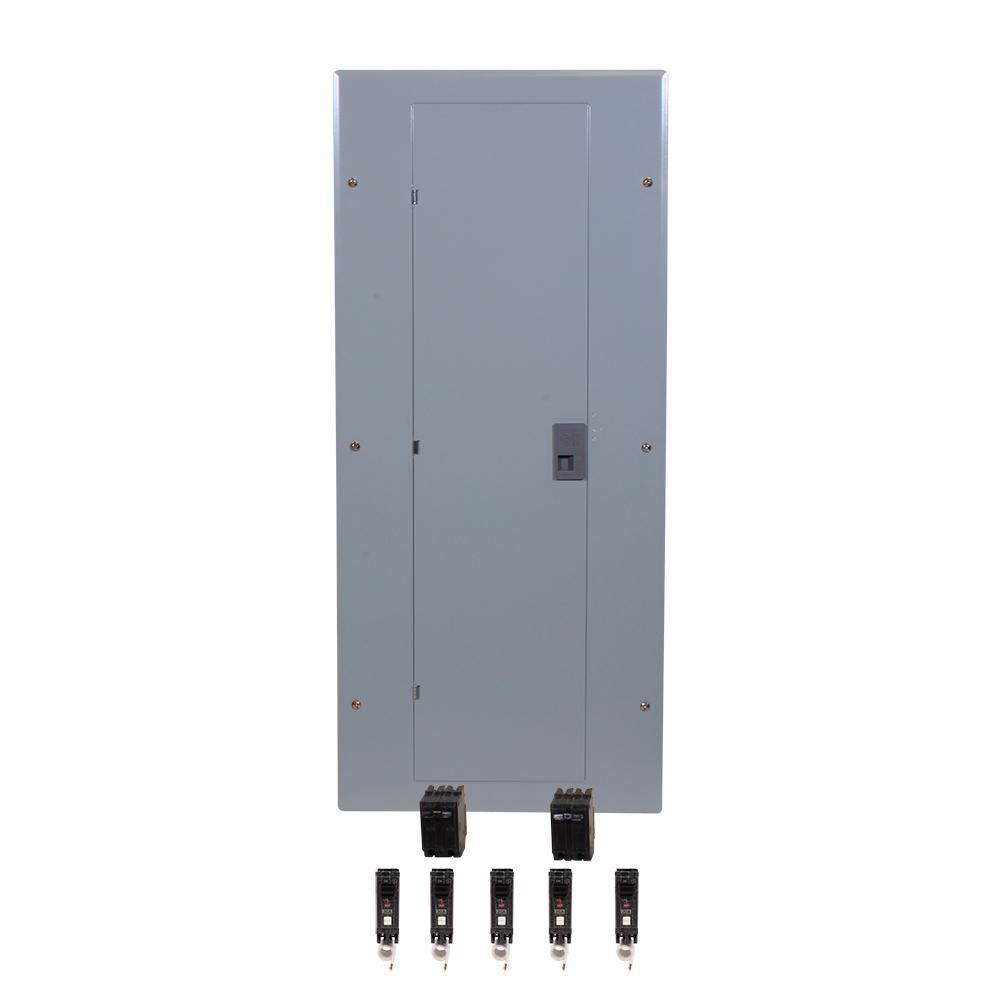

200 Amp 32-Space 40-Circuit Main Breaker Indoor Load Center Combination Arc Fault Kit with CAFCI Breakers Included
Regular price $313.41Shipping calculated at checkout.

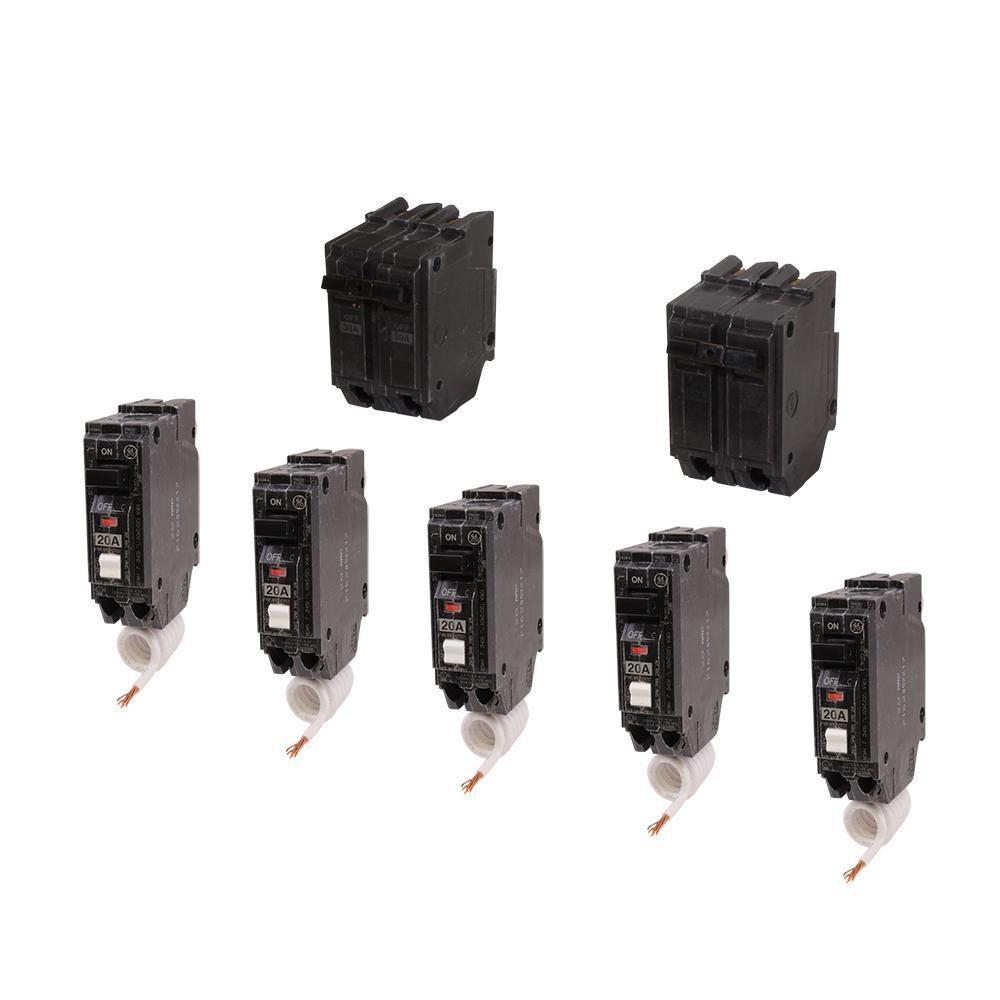

This GE PowerMark Gold 200 Amp 32-Space 40-Circuit Main Breaker Indoor Load Center Contractor Kit with CAFCIs is a great choice for convenience and savings. It features a factory-installed main breaker, full-length neutral bars and is pre-packaged with an assortment of breakers. The kit includes 5 single-pole 15 Amp combination arc fault breakers (CAFCIs), one 2-pole 30 Amp circuit breaker and one 2-pole 50 Amp circuit breaker.
Features
- Features a rust-resistant galvanized box for indoor use
- Product has a highly conductive copper bus bar
- Product comes with a factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- Contains a 100% rated split neutral on each side
- Rated a single phase, 3-wire, 120/240 VAC
- All neutral holes are rated for 14 - 4 wire
- Load center accepts 1/2 in. THQP and 1 in. THQL frame GE circuit breakers
Features
| Item Weight | 35 |
| Voltage (volts) | 240 |
| Product Weight (lb.) | 35 |
| Load Center Mounting Type | Flush,Surface |
| Electrical Product Type | Load Center and Breaker Kit |
| Load Center Type | Main Breaker |
| Number of Spaces | 32 |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 200 |
| Number of Circuits | 40 |

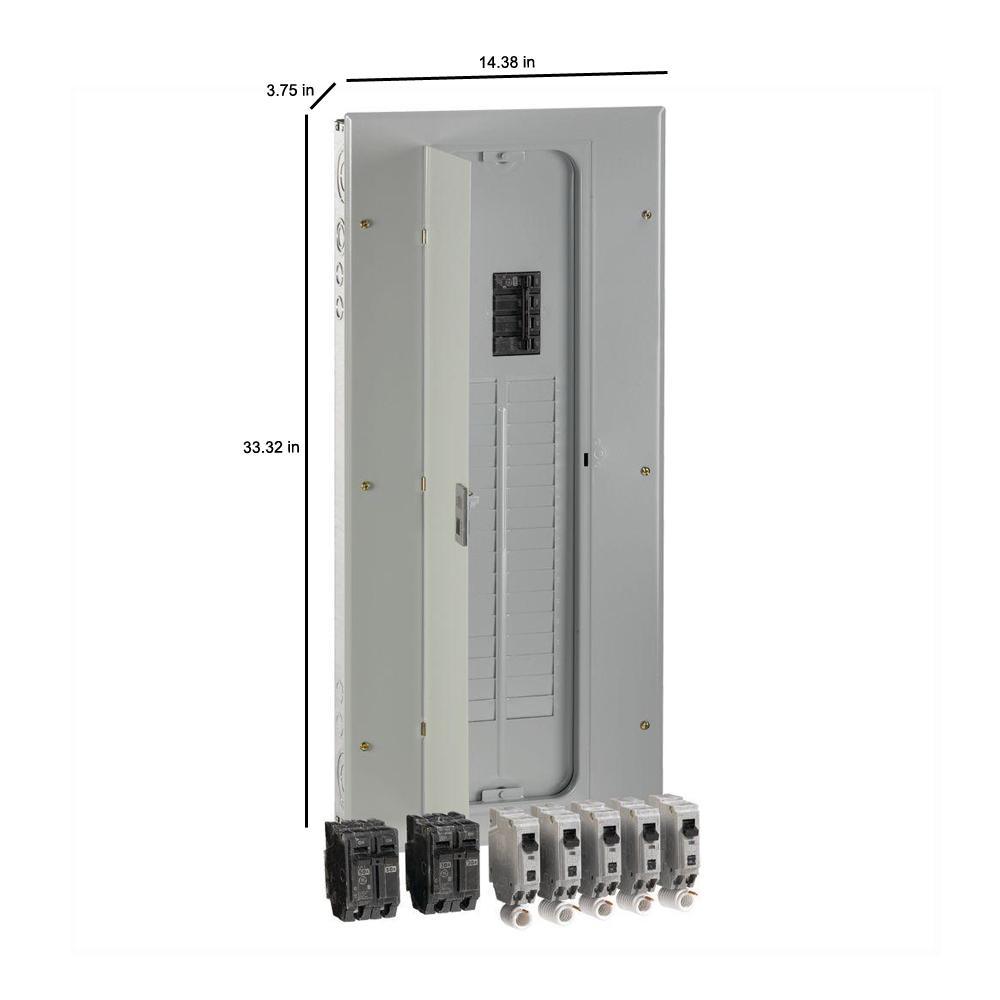

| Load center depth (in.) | 3.75 |
| Load center height (in.) | 33.32 |
| Load center width (in.) | 14.38 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
