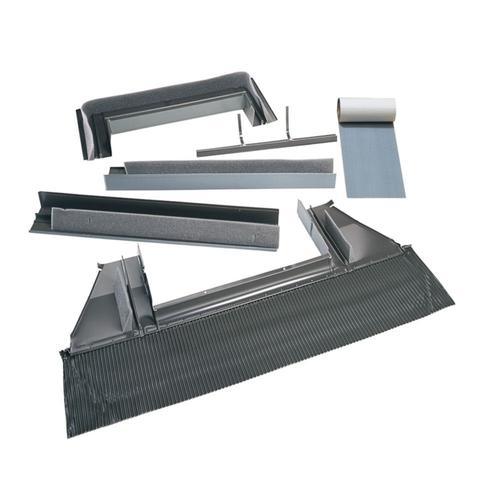

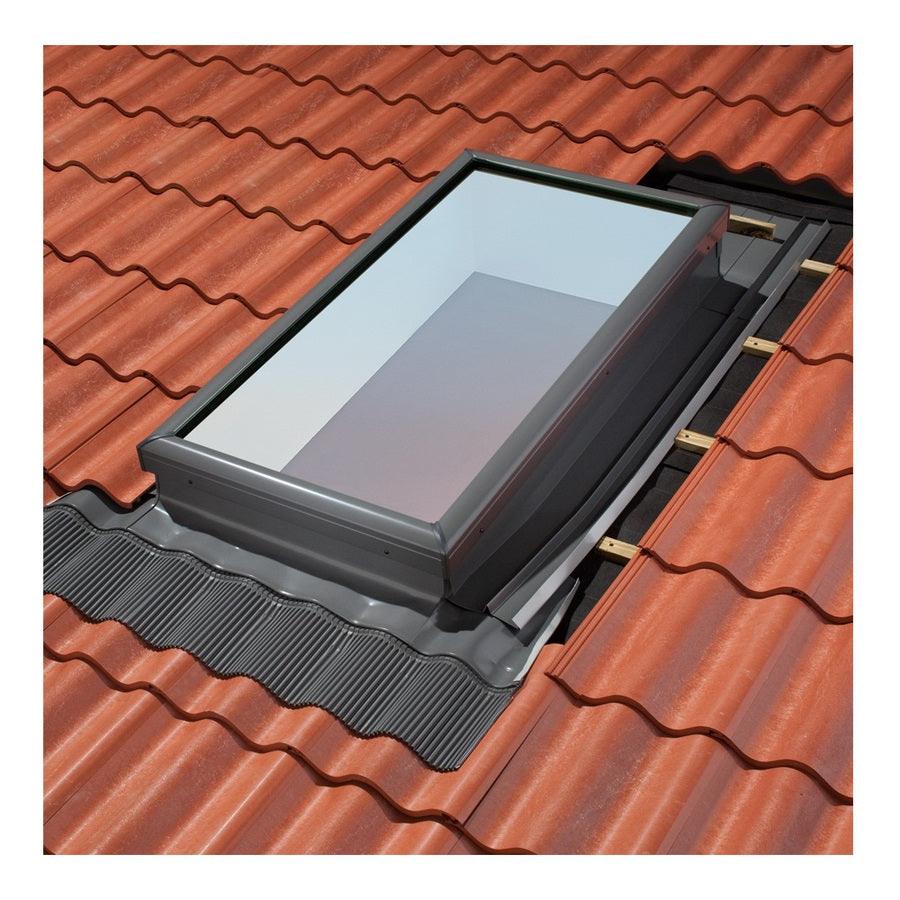

VELUX Curb Mount Tile Roof Aluminum Flashing Kit for Skylights

ECW flashing can be used with tile roofs (over 3/4 in. thickness) or high-profile roofing materials with a pitch between 14 and 60 degrees ECW 2270 flashing is designed specifically to fit VELUX curb mounted2270 models with an outside curb width of 25-1/2 in. and maximum 73-1/2 in. length Designedto work in conjunction with a site built curb, and the ECW cannot be installed on skylights from other manufacturers, or other VELUX skylight models not noted above Curb mounted flashing kits for shingle roofs are available (model ECL 2246)

Features

Series Name	2270 Curb Mount Tile Roof
Width (Inches)	31.5
Length (Inches)	80.5
For Use with Decks	No
For Use with Skylights	Yes
For Use with Chimneys	No
For Use with Windows	No
For Use with Roofs	No
For Use with Doors	No
For Use with Vents	No
For Use with Pipes	No
For Use with Gutters	No
For Use with Egress Windows	No
Gauge	23
Color/Finish Family	Gray
Manufacturer Color/Finish	Neutral gray
Warranty	10-year limited
Type	Curb mount skylight flashing kit
Material	Aluminum
CA Residents: Prop 65 Warning(s)	Yes
Profile	High
Application	Tile roof
