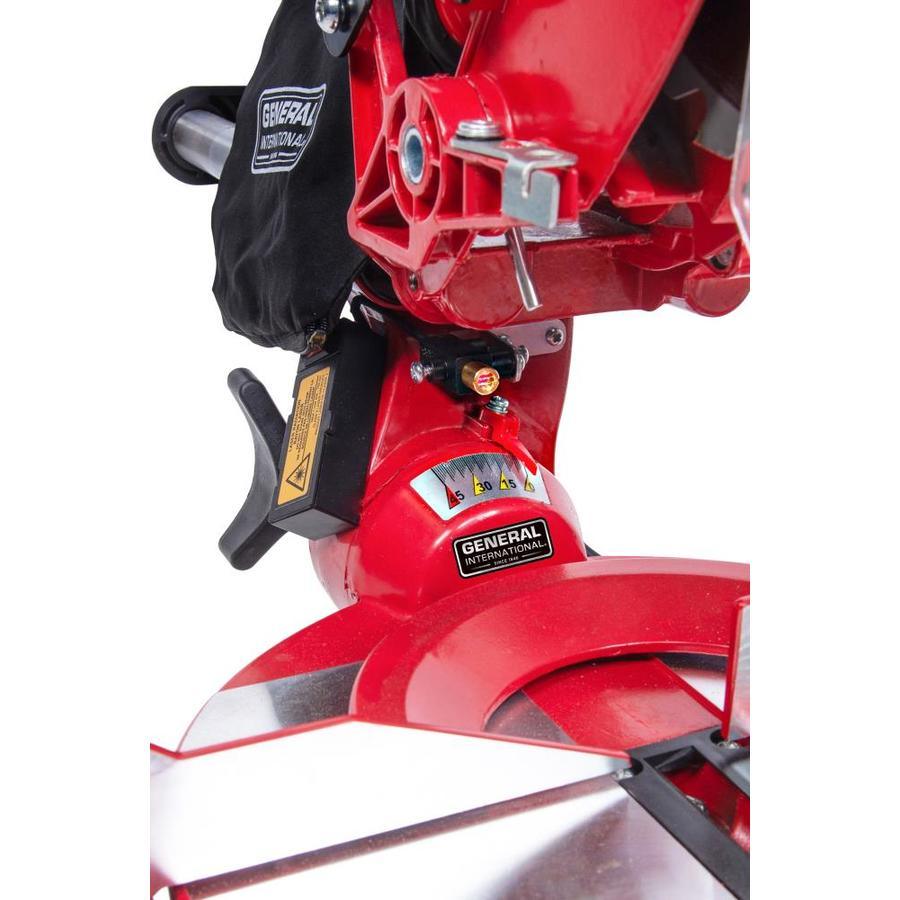

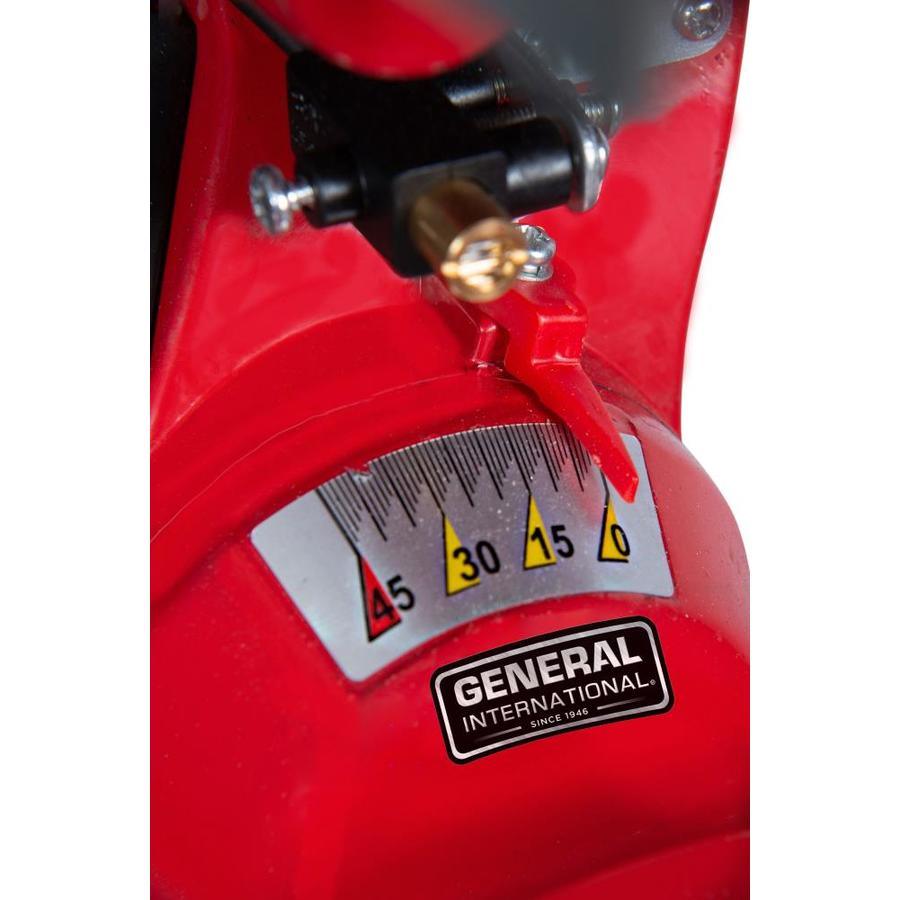

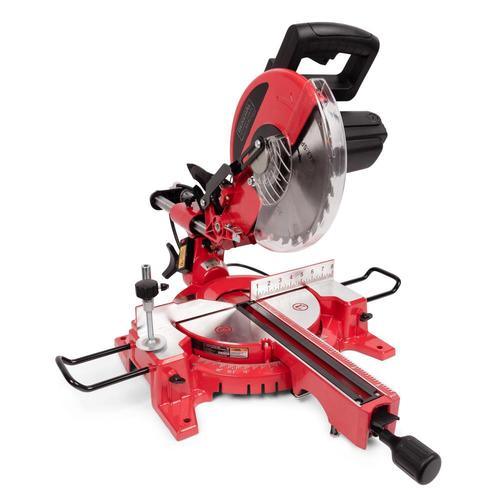

Precision cuts with laser alignment system, bevels at 0-45 ° for compound angles, sliding blade for extended reach, new oversized knob for blade tilt ease
Max cut capacities: cross cut at 90 ° = 3 In. x 12 In., miter cut at 45 ° = 3 In. x 8 In., miter and bevel compound cut at 45 ° = 1.5 In. x 8 In., cuts up to 45 left, miter cuts up to 45 left and right
1800 W, 120 V~ 60 Hz, no-load speed 4400 rpm, powerful 15 Amp, easy-access motor brushes, oversized front large knob for ease, detentes at primary cutting angles
Cuts wood, plastic and aluminum (with correct blade), push-button shaft lock eases blade changes, adjustable cut depth stop
Features
Sub-Brand |
General International Power Products Division |
Series Name |
Power Tool |
Saw Blade Diameter |
10-in |
Bevel |
Single |
Electric Brake |
Yes |
Spindle Lock |
Yes |

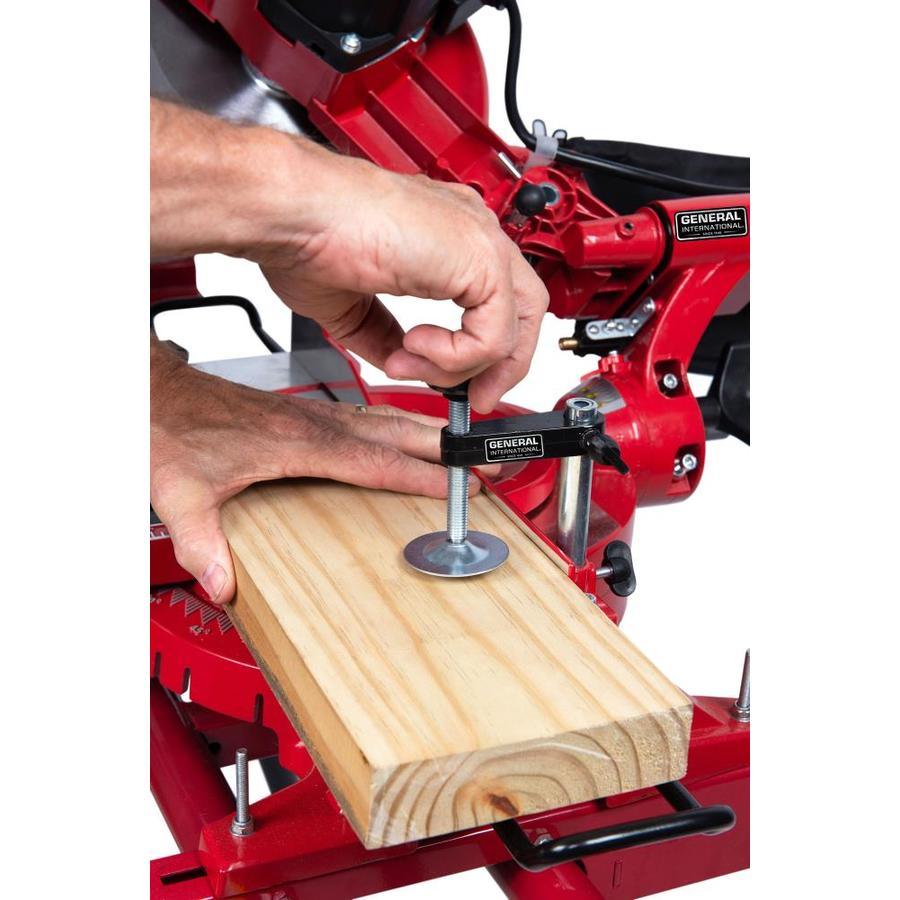

Quick Release Vise |
Yes |
Slide |
Yes |
Miter Stop |
Yes |
Compound |
Yes |
Depth of Cut at 90 Degrees (Inches) |
3 |
Depth of Cut at 45 Degrees (Inches) |
3 |
Maximum Miter Cut - Left (Degrees) |
45 |
Maximum Miter Cut - Right (Degrees) |
45 |
Power Rating (HP) |
2 |
Maximum Speed (RPM) |
4400 |
Dust Handling |
Chute |
Length (Inches) |
27 |
Width (Inches) |
19.5 |
Height (Inches) |
23 |
Tool Weight (lbs.) |
29 |
Warranty |
2-year limited |
Cordless |
No |
Battery Voltage |
1.5-volt |
CA Residents: Prop 65 Warning(s) |
Yes |
Amperage |
15 |
Bevel Capacity (Degrees) |
45 |
Laser Guide |
Yes |
UNSPSC |
27112700 |
Laser Color |
N/A |
Arbor Diameter |
5/8-in |
Safety Listing |
Not third party lab tested |
Folding |
No |
