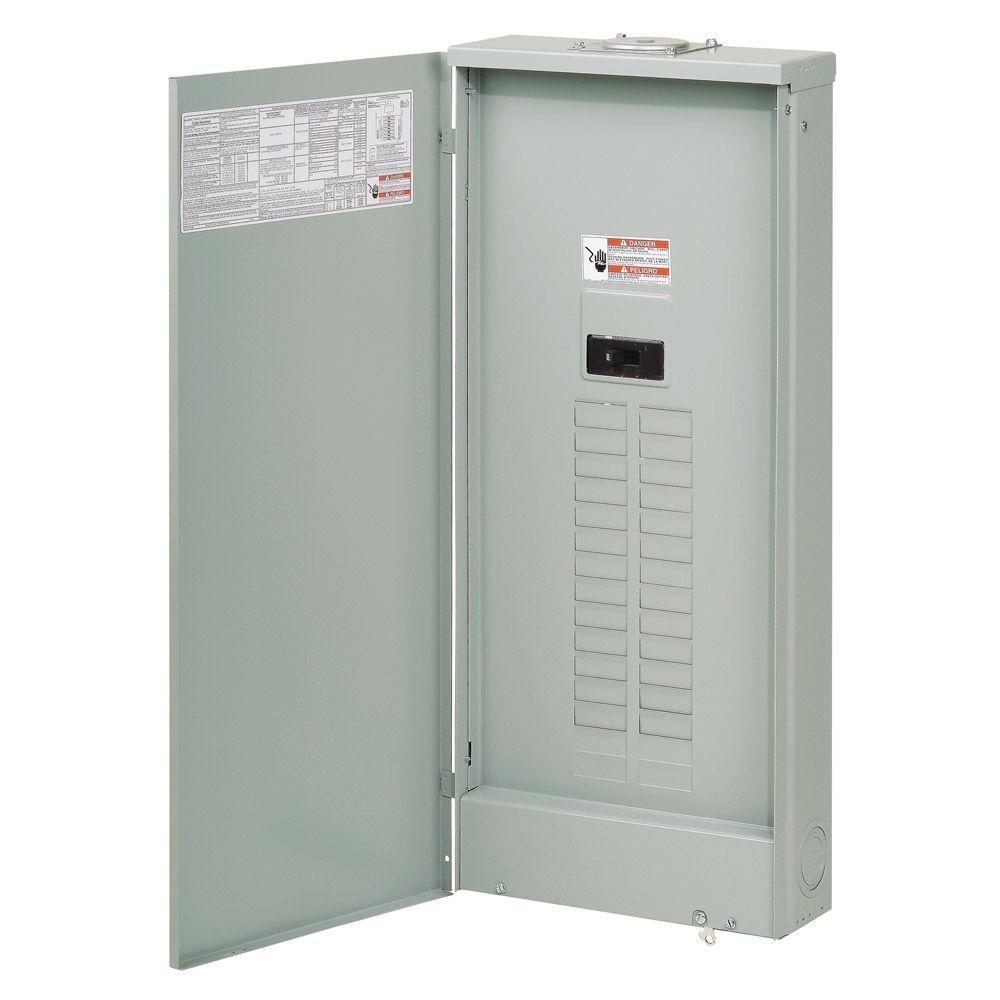

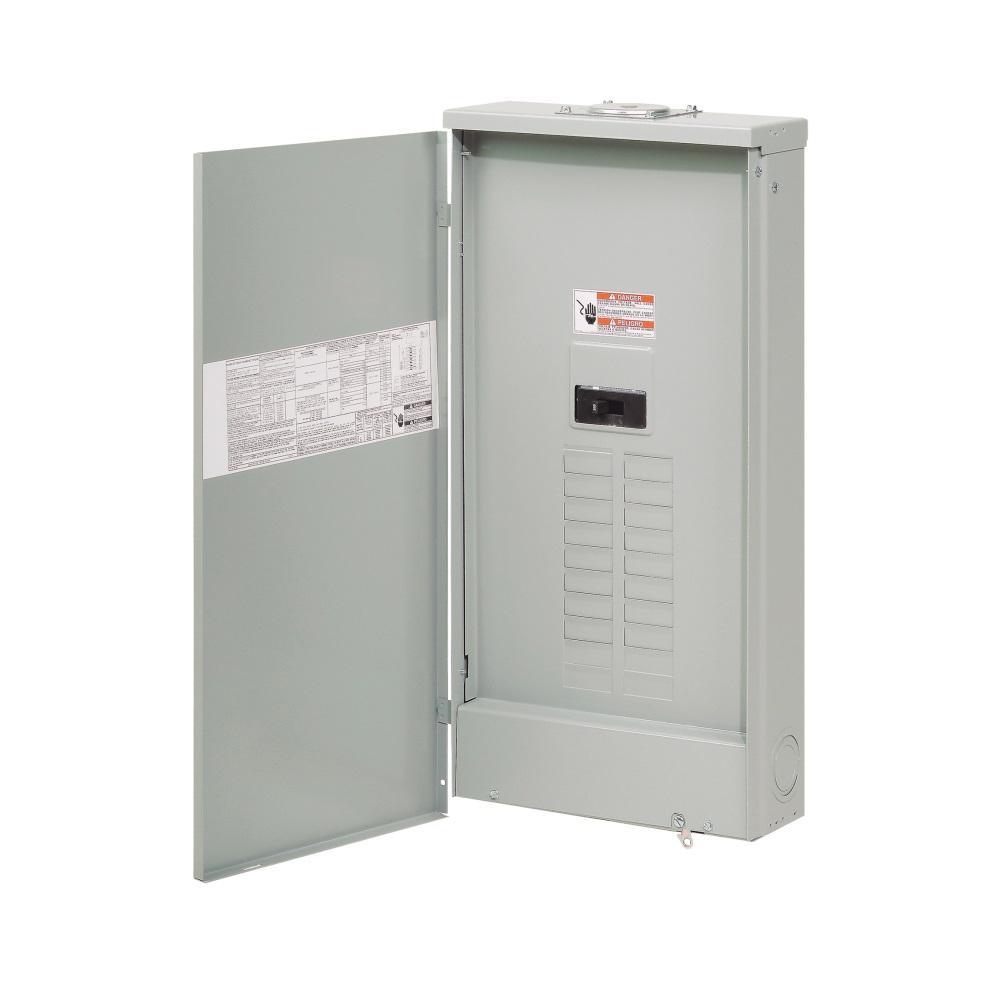

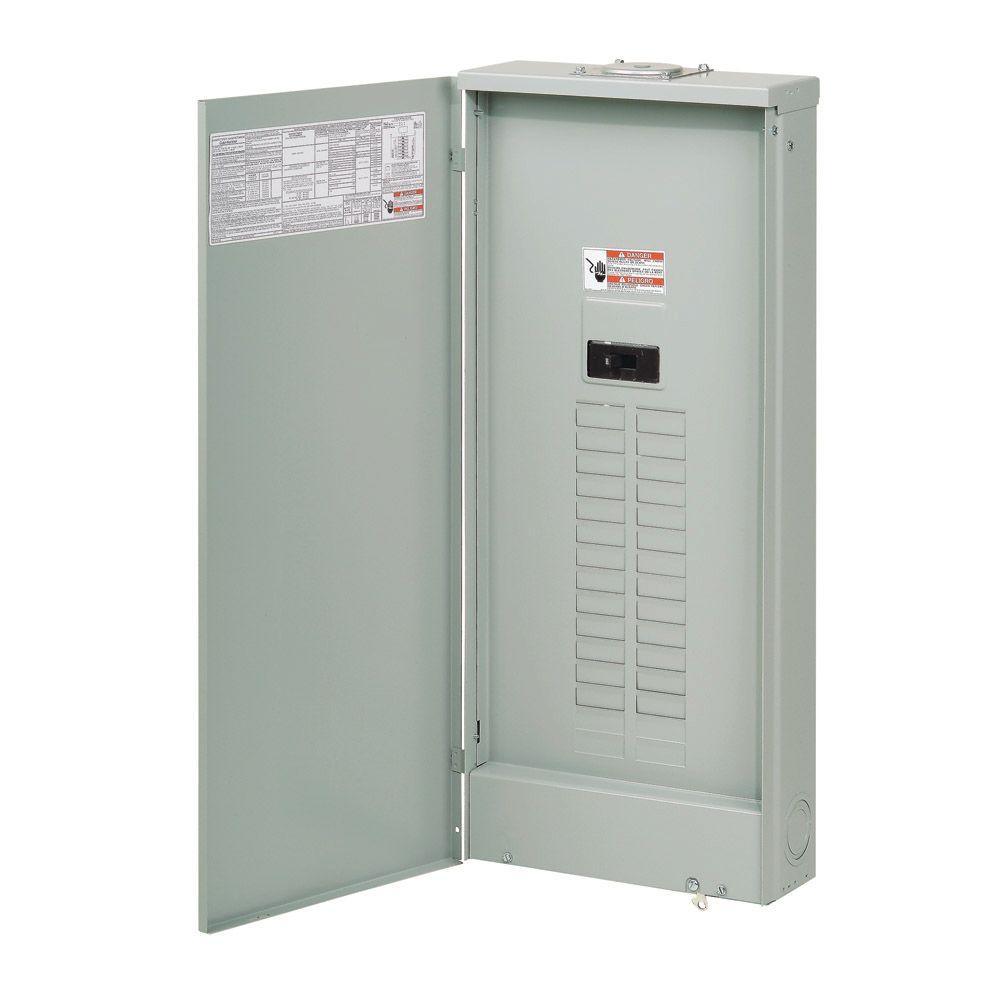

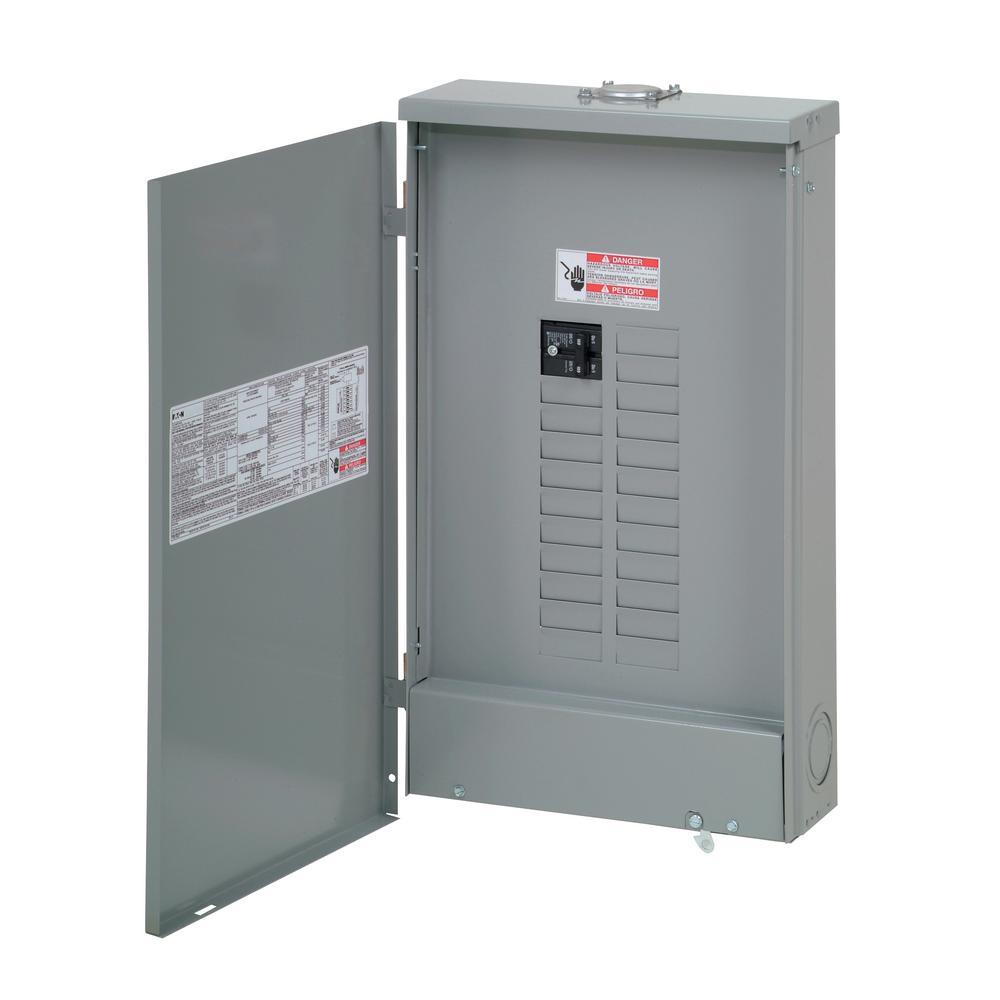

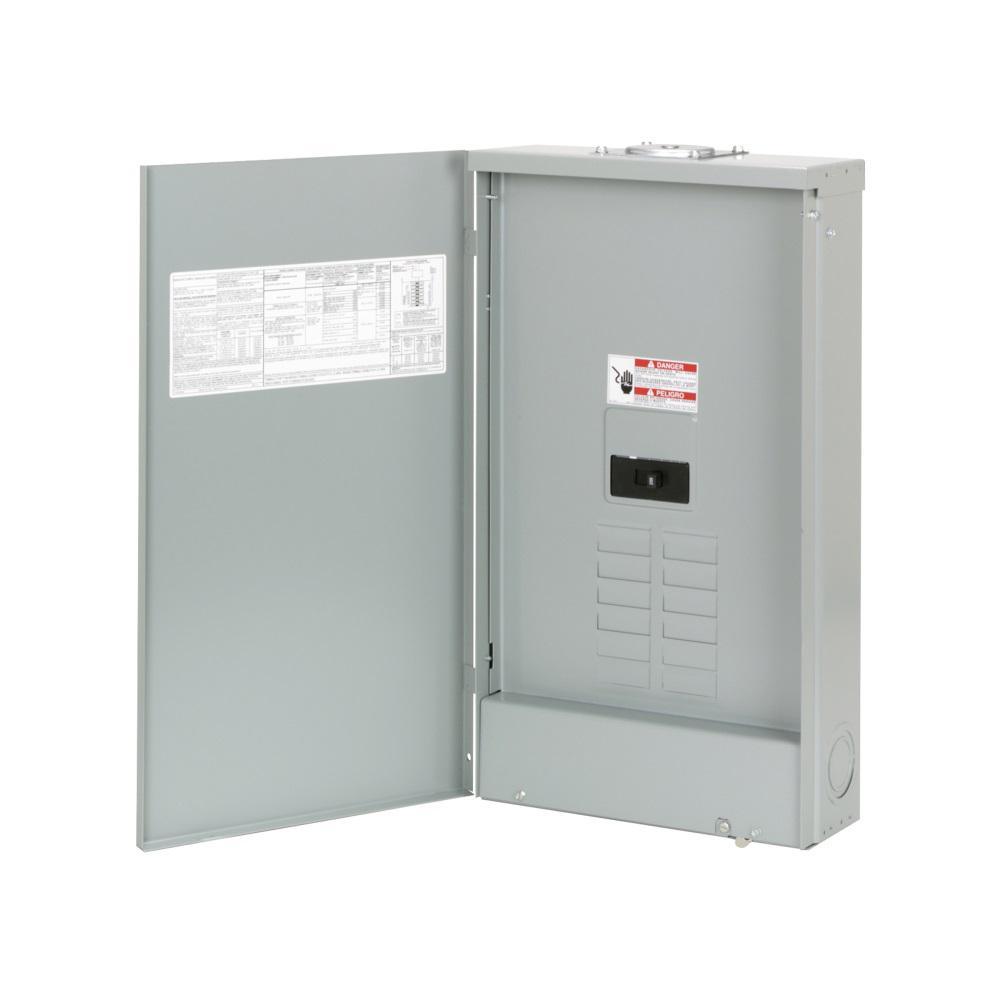

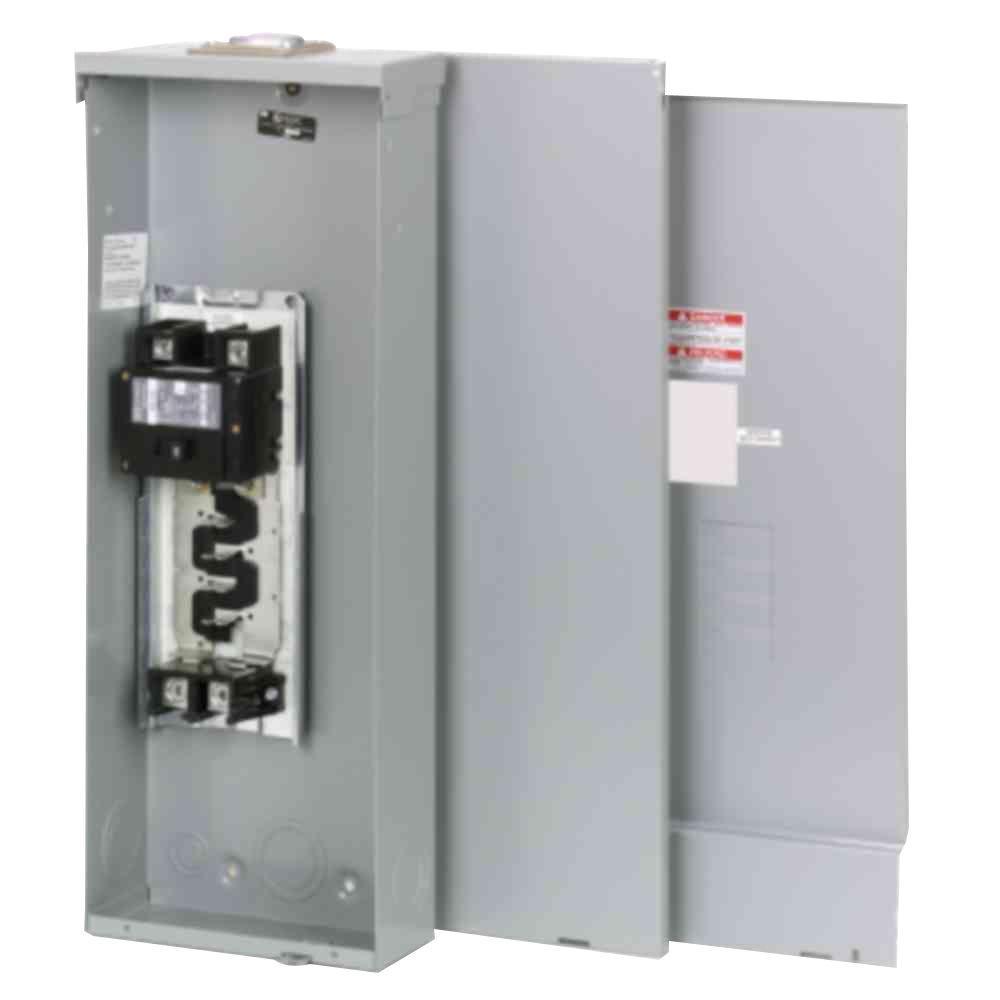

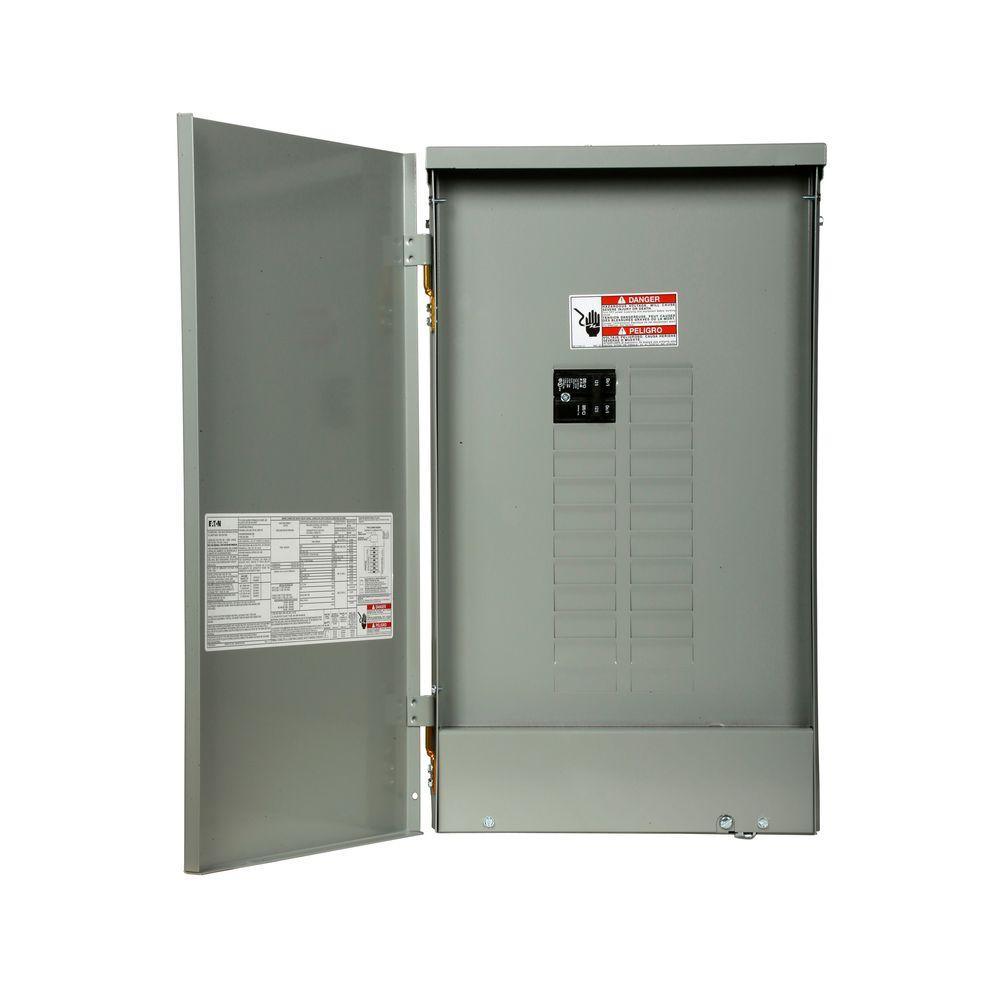

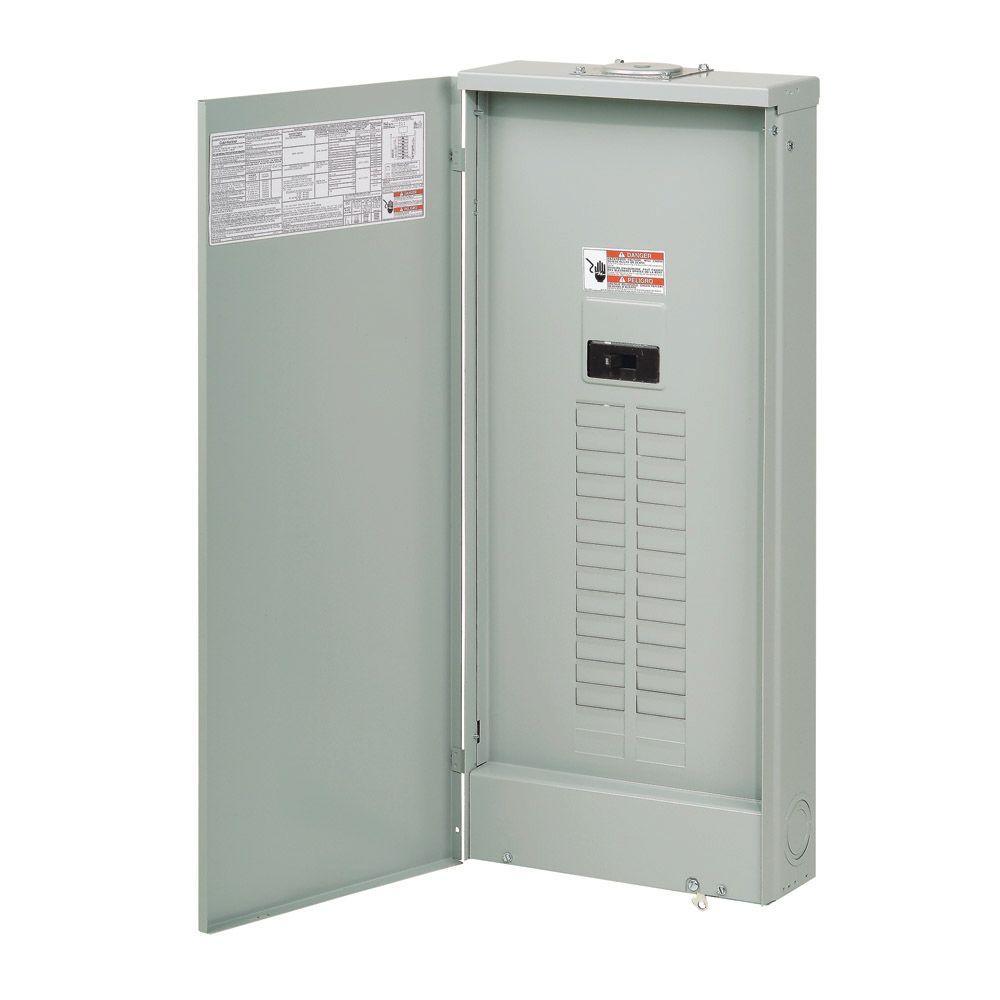

BR 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Loadcenter with Cover

$136.53

/
Shipping calculated at checkout.
  • Amperage rating: 200
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of circuits: 16
  • Number of spaces: 8
  • Phase: single-phase
  • Tangential center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
  • Single keyhole mounting - 1 keyhole at the top and bottom provides easier mounting and leveling
  • Used with: type BR breakers
Features
Item Weight 31.24
Mounting Type Bolt On
Product Weight (lb.) 29.74
Voltage (volts) 120/240
Number of Spaces 8
Load Center Type Main Breaker
Electrical Product Type Load Center
Number of Circuits 16
Indoor/Outdoor Outdoor
Returnable 180-Day
Phase Type 1 Phase
Load Center Mounting Type Flush
Maximum Amperage (amps) 200
Load center width (in.) 14.31
Load center depth (in.) 5.19
Load center height (in.) 25.0
Certifications and Listings ANSI Certified,UL Listed
Manufacturer Warranty 10 Years
