QO 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug
Regular price $209.48/
Shipping calculated at checkout.

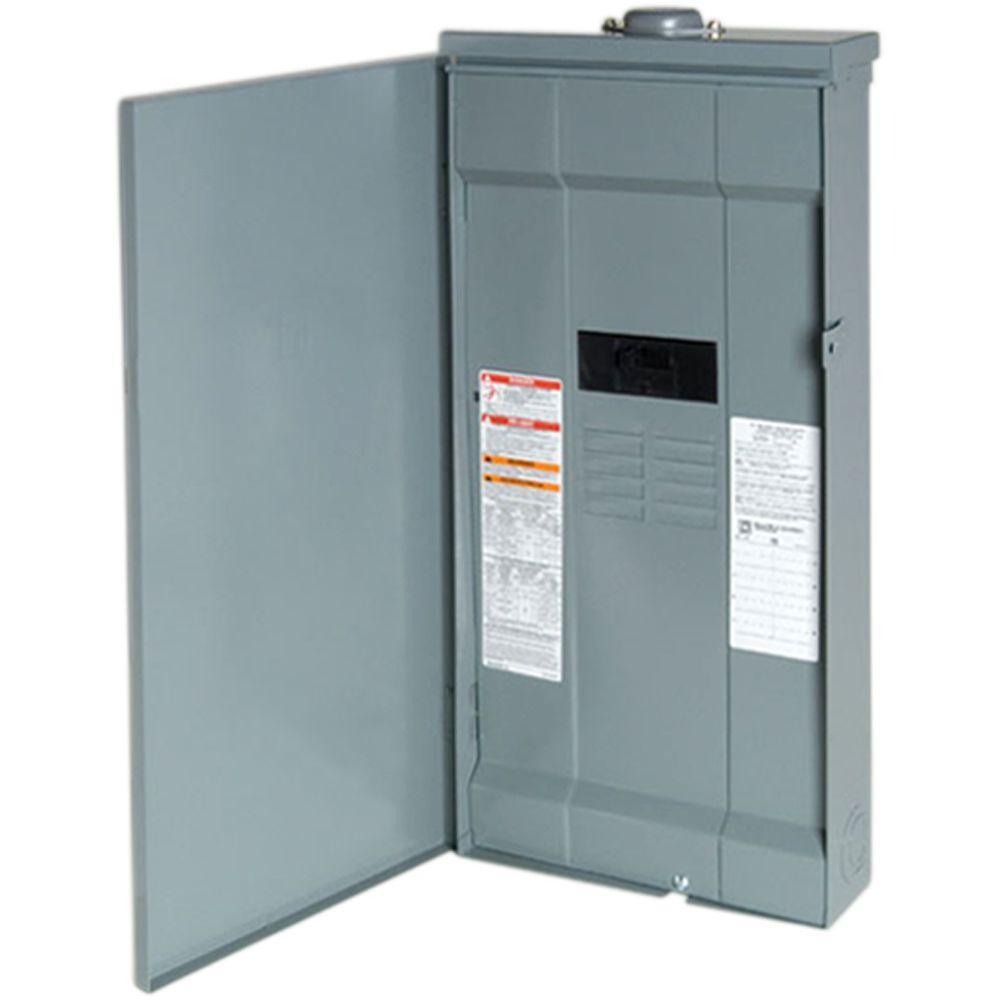

The Square D QO 150 Amp 8-Space 16-Circuit Convertible Main Breaker Outdoor Load Center with Feed-Thru Lugs is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
Features
- California residents
- Contact your local building inspector for adoptions and details.
- Includes an outdoor cover and factory-installed QOM2150VH main breaker with feed-thru lug
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase
- Rated 120/240 VAC and 10,000 AIR short circuit current rating

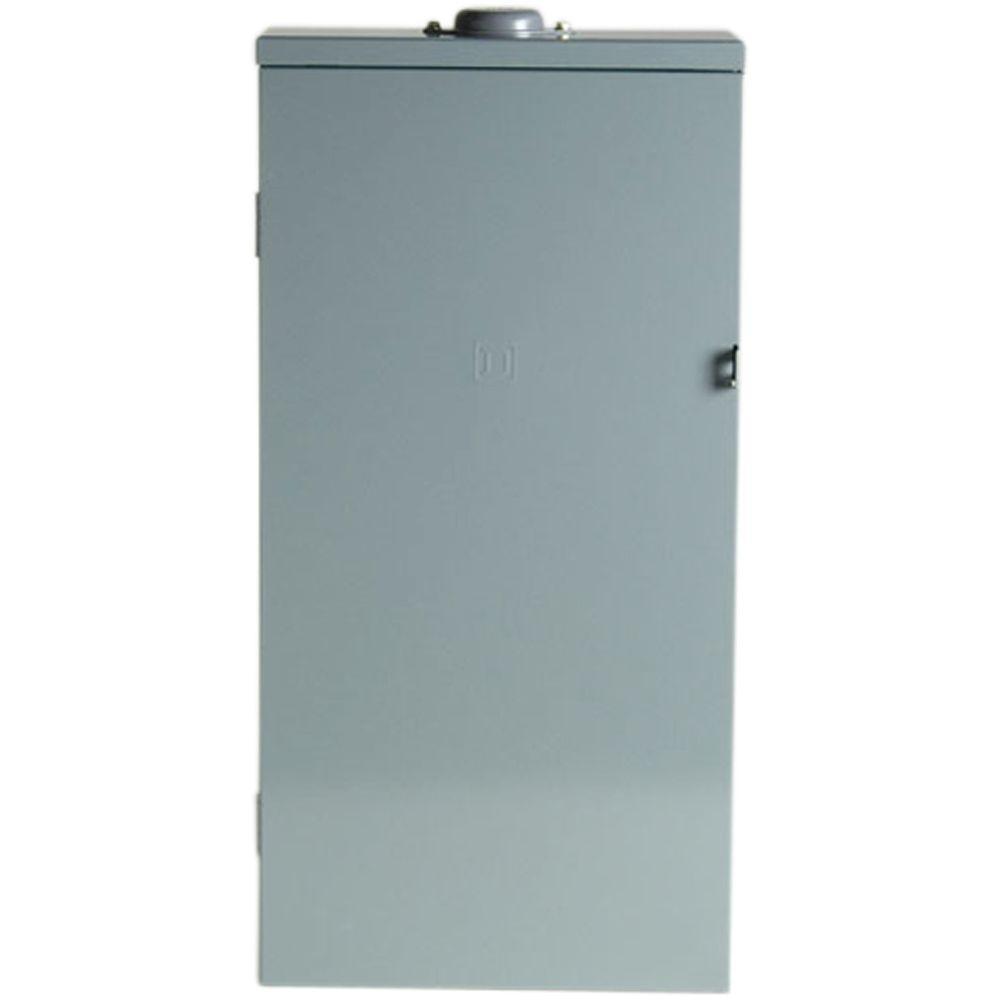

- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Designed with straight-in mains to save expensive cable and time
- Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
Features
| Item Weight | 33.19 |
| Maximum Amperage (amps) | 150 |
| Voltage (volts) | 120/240 |
| Number of Spaces | 8 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Number of Circuits | 16 |
| Product Weight (lb.) | 33.19 |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |

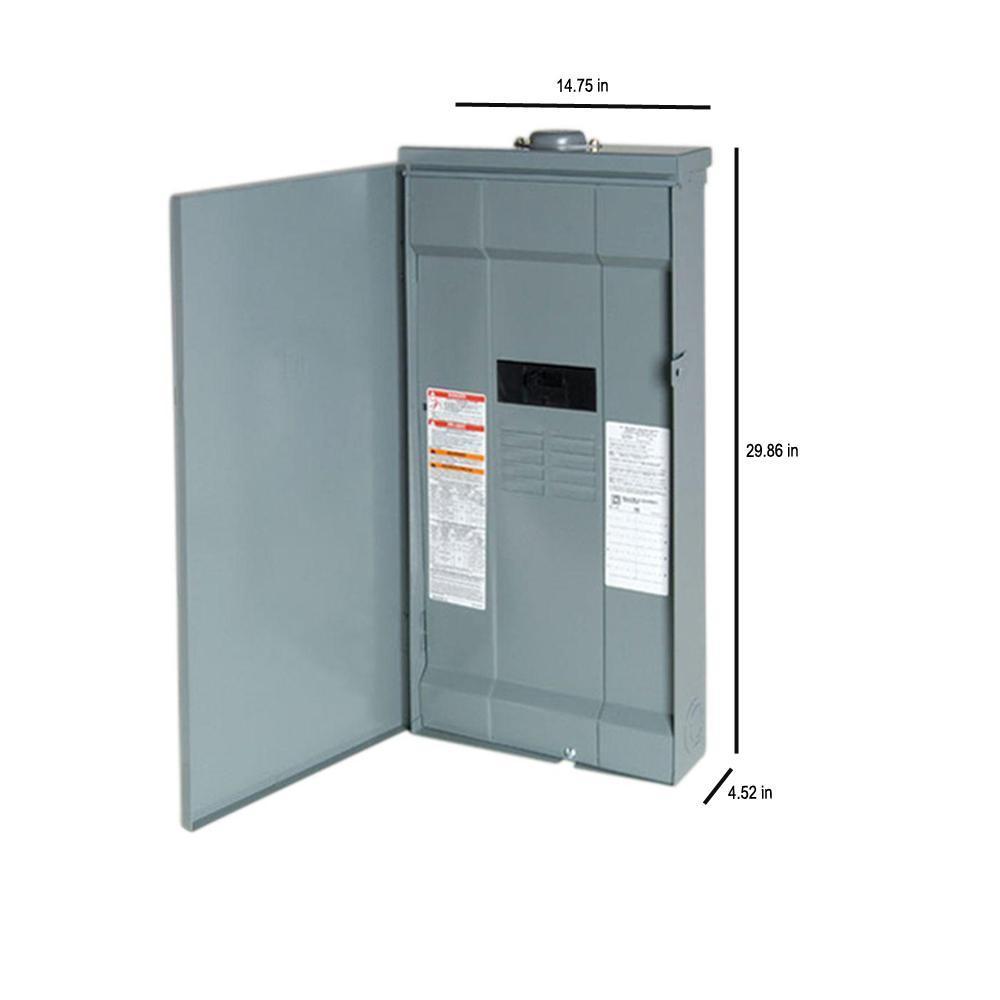

| Load center depth (in.) | 4.52 |
| Load center height (in.) | 29.86 |
| Load center width (in.) | 14.75 |
| Manufacturer Warranty | Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty. |
| Certifications and Listings | UL Listed |
