PowerMark Gold 200 Amp 32-Space 40-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breakers
Regular price $167.30/
Shipping calculated at checkout.

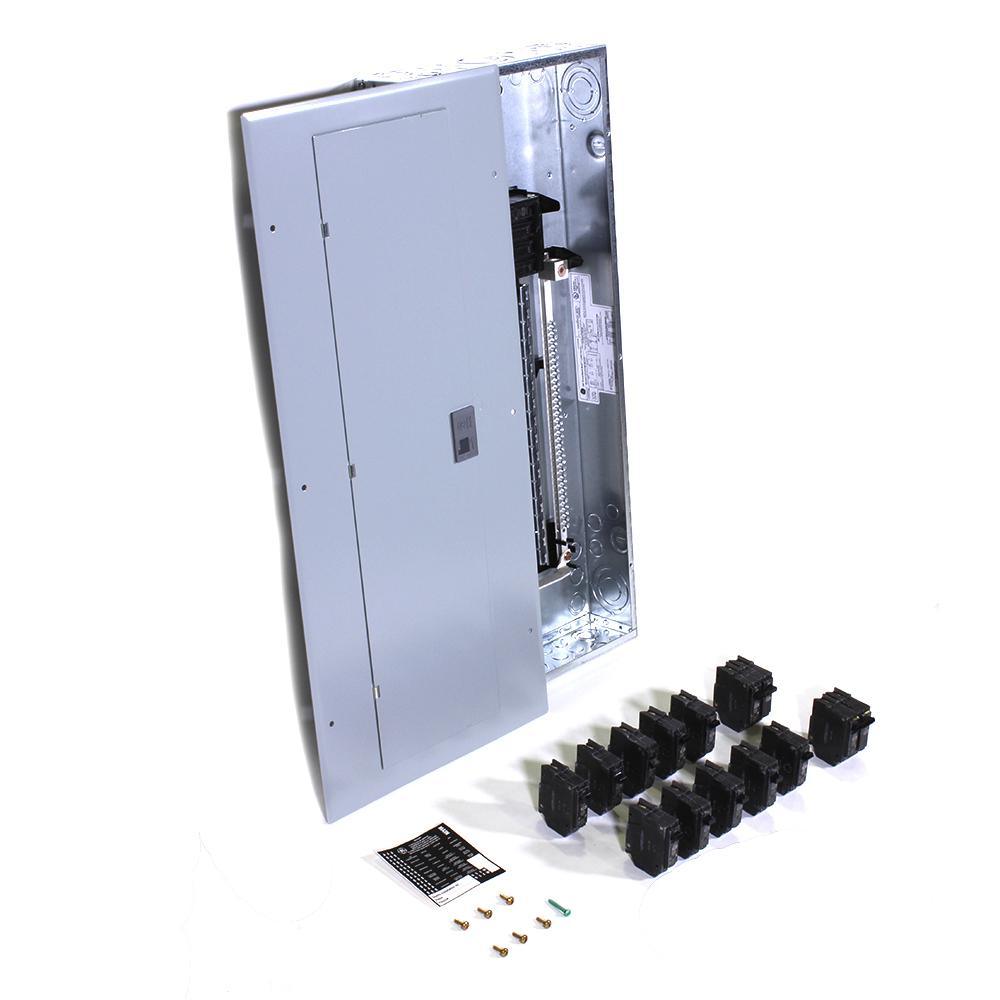

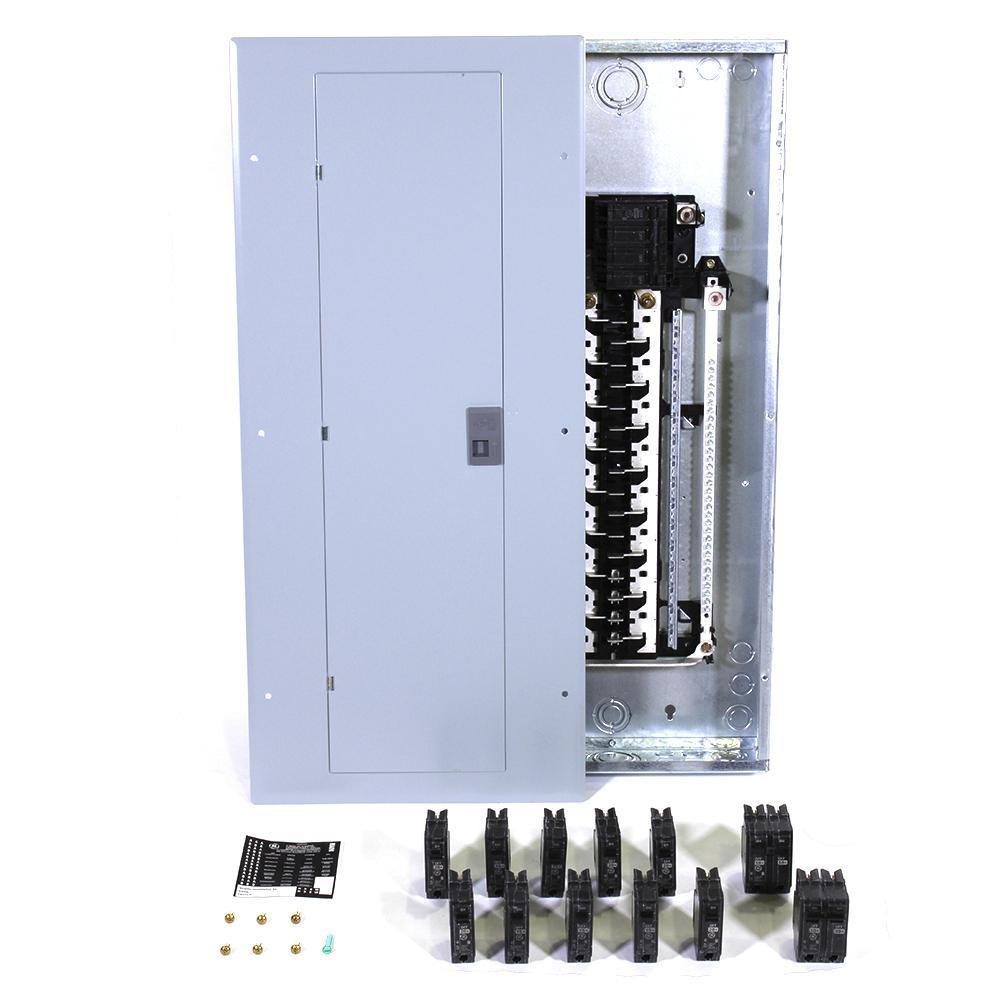

This value kit includes 10 20 Amp Single-Pole, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The 1-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
Features
- Use as an indoor main breaker load center
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring
- 100% split neutral holes on each side are rated for #14-4 wire
- Top or bottom feed
- 240 VAC and 22,000 AIC rating
- Compatible with GFCIs, AFCIs and standard circuit breakers
- ANSI certified and UL listed
- Can be used for surface or flush installations
- Includes 10 THQL-1120 20 Amp single-pole circuit breakers, 1 THQL-2130 30 Amp double-pole circuit breaker and 1 THQL-2150 50 Amp double-pole circuit breaker
Features
Item Weight | 40.5 |
Voltage (volts) | 240 |
Load Center Mounting Type | Flush,Surface |
Electrical Product Type | Load Center and Breaker Kit |
Load Center Type | Main Breaker |
Product Weight (lb.) | 40 |
Number of Spaces | 32 |
Indoor/Outdoor | Indoor |
Returnable | 180-Day |
Phase Type | 1 Phase |
Mounting Type | Plug-On |
Maximum Amperage (amps) | 200 |
Number of Circuits | 40 |

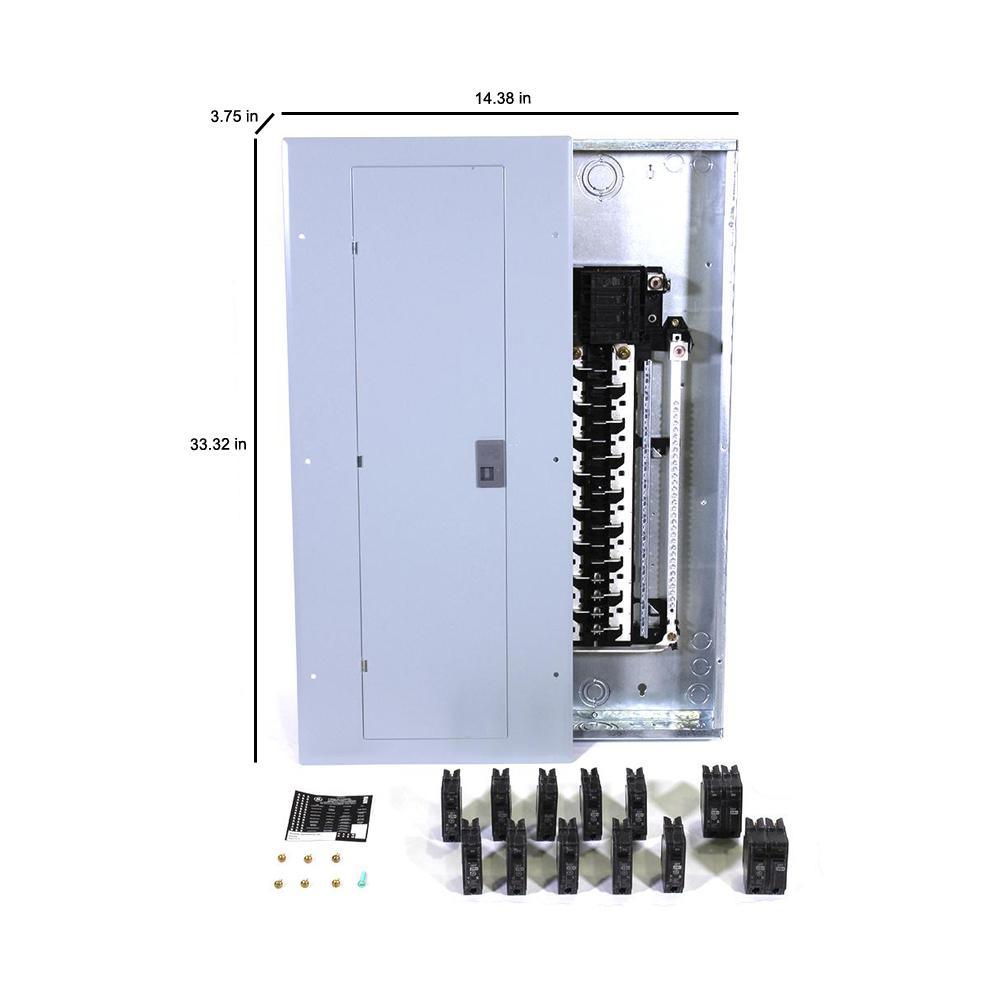

Load center depth (in.) | 3.75 |
Load center height (in.) | 33.32 |
Load center width (in.) | 14.38 |
Certifications and Listings | UL Listed |
Manufacturer Warranty | One year warranty from first use |
