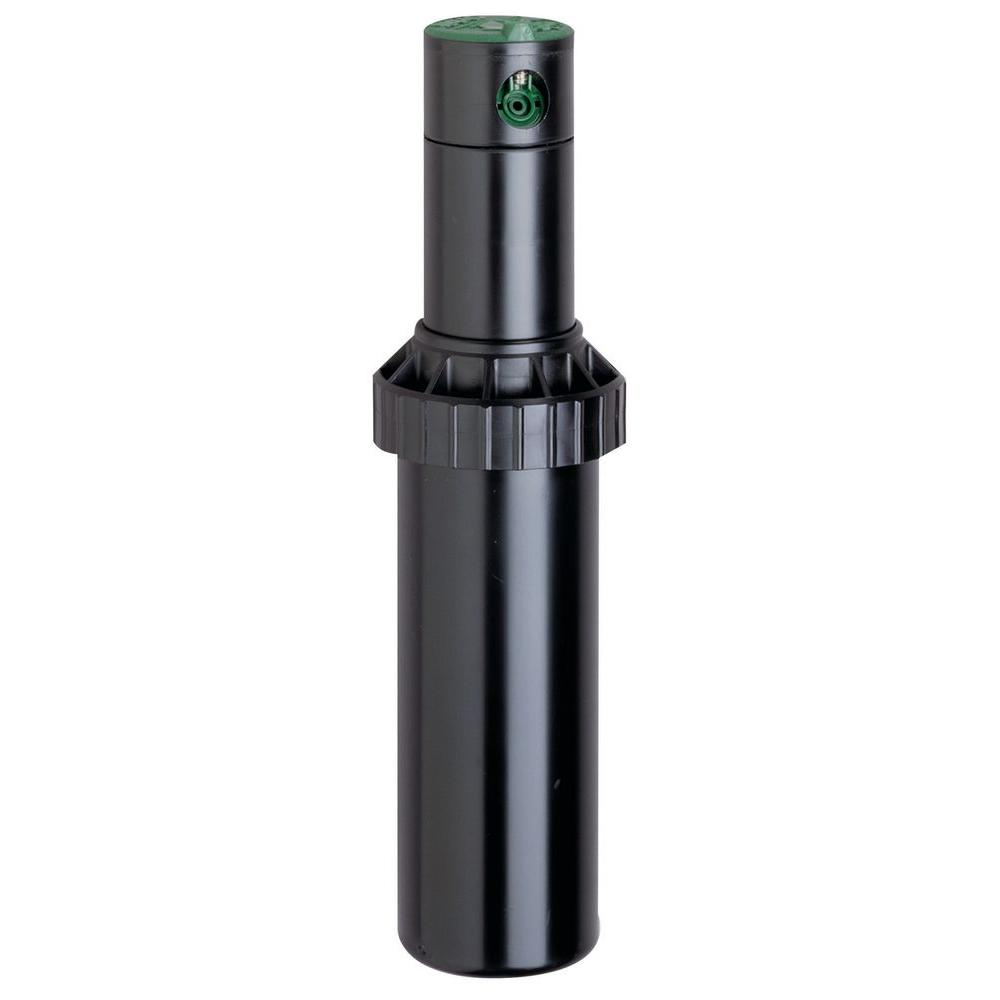

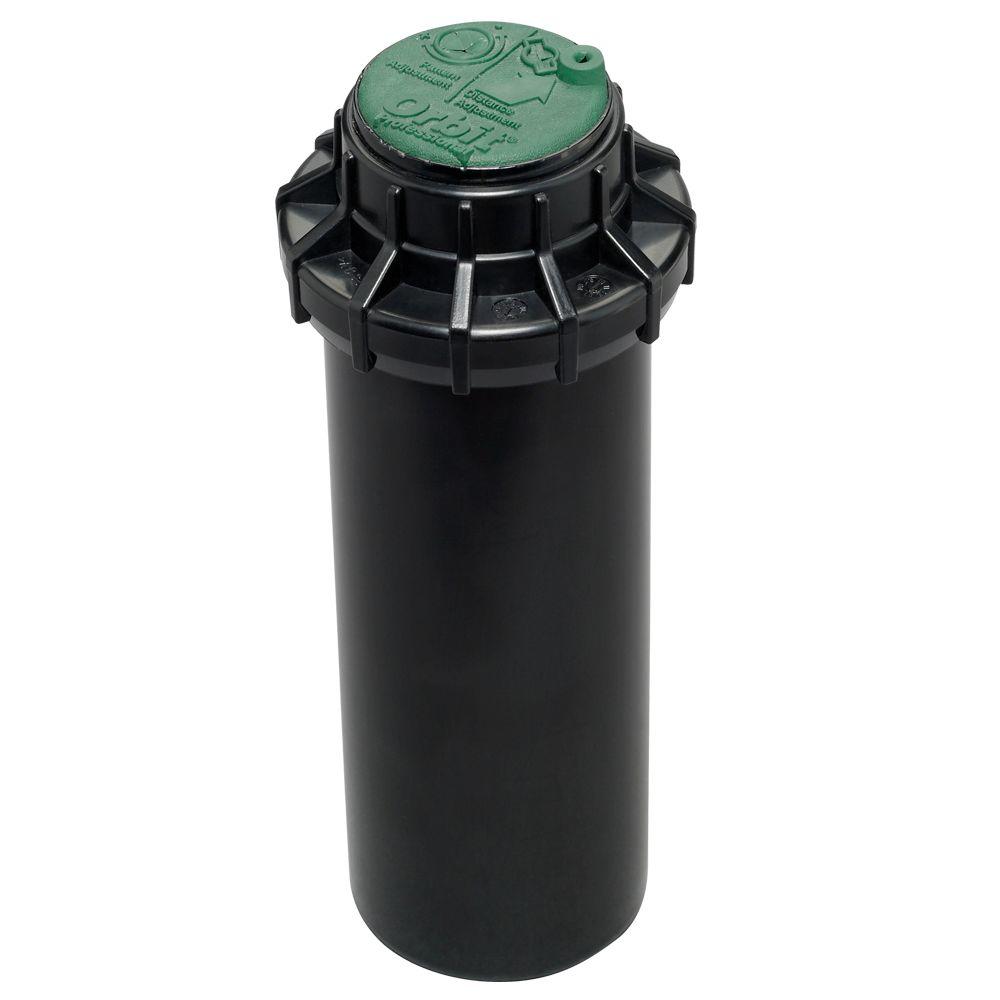

Voyager II Pop-Up Gear Drive Sprinkler

Orbit's Professional Gear Drive is the best in class of all gear drive pop-up sprinkler heads. It is the #1 consumer choice for medium to large area gear drive sprinkler heads. Its versatility allows coverage from a 25 ft. up to a 52 ft. radius in a part- to full-circle spray pattern. The gear drive rotor ensures even and complete water coverage as well as a quiet spray. A filter protects the nozzle from clogging and is easily accessible for cleaning. It is compatible with all major brands of gear drive rotors including Rain Bird, Hunter, and Toro.

Features

Item Weight	0.61
Nozzle Material	Plastic
Irrigation System Component	Sprinkler
Color Family	Blacks
Sprinkler Angle Minimum (Degrees)	5
Sprinkler Angle Maximum (Degrees)	25
Pack Size	1
Sprinkler Location	Above ground,Below ground
Sprinkler Head Type	Gear Drive
Maximum Rotation (Degrees)	360
Mounting	In-Ground Install
Sprinkler Head Material	Plastic
Inlet Type	Female
Sprinkler Head Spray Pattern	Adjustable
Sprinkler Type	Rotary
Material	ABS Plastic
Riser	Riser Not Required
Returnable	180-Day
Thread Type	Female
Maximum Gallons Per Minute	3.9
Head Material	Plastic
Pressure Rating	120
Maximum Spray Distance (ft.)	52
Maximum Coverage Area (sq ft.)	8495
Features	Adjustable
Minimum Spray Distance (ft.)	25
Package Quantity	1
Product Height (in.)	7.5 in
Product Width (in.)	3.5 in
Retracted Height (in.)	0
Product Depth (in.)	3.5 in
Product Diameter (in.)	3.5 in
Manufacturer Warranty	5 Years
