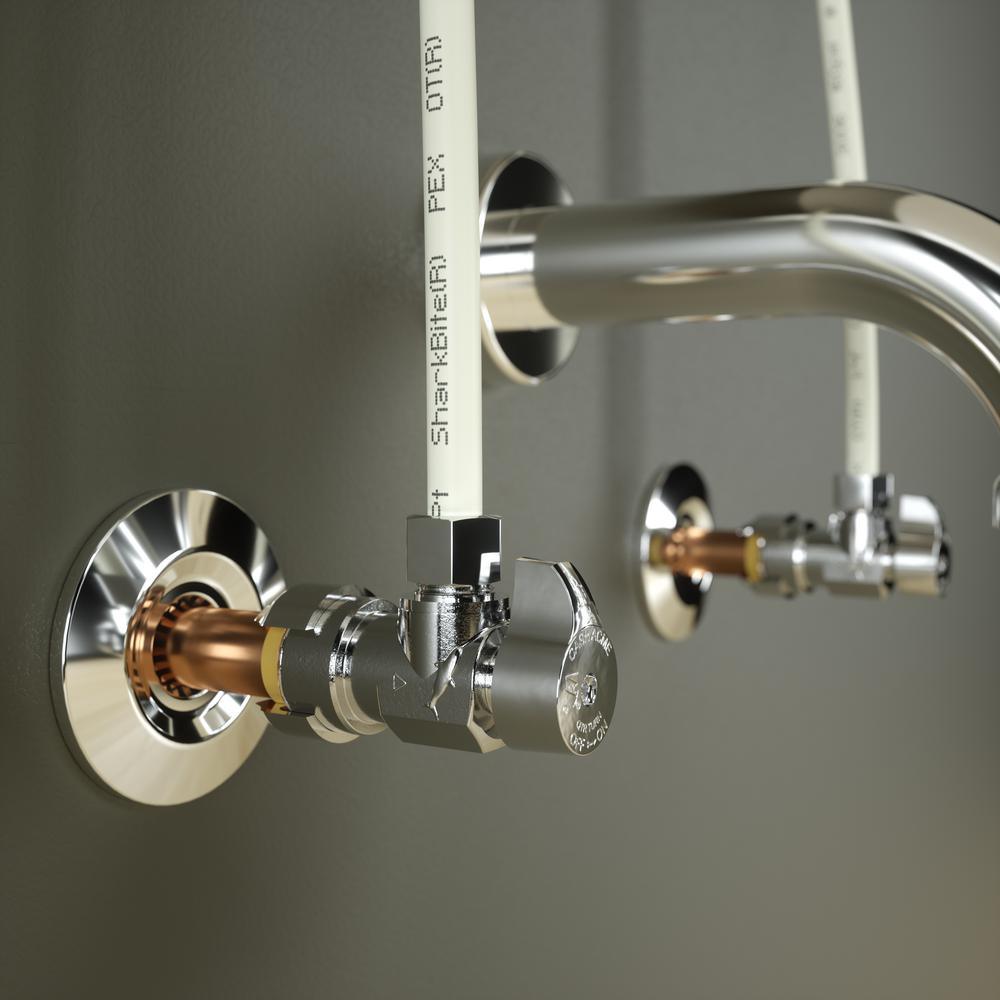

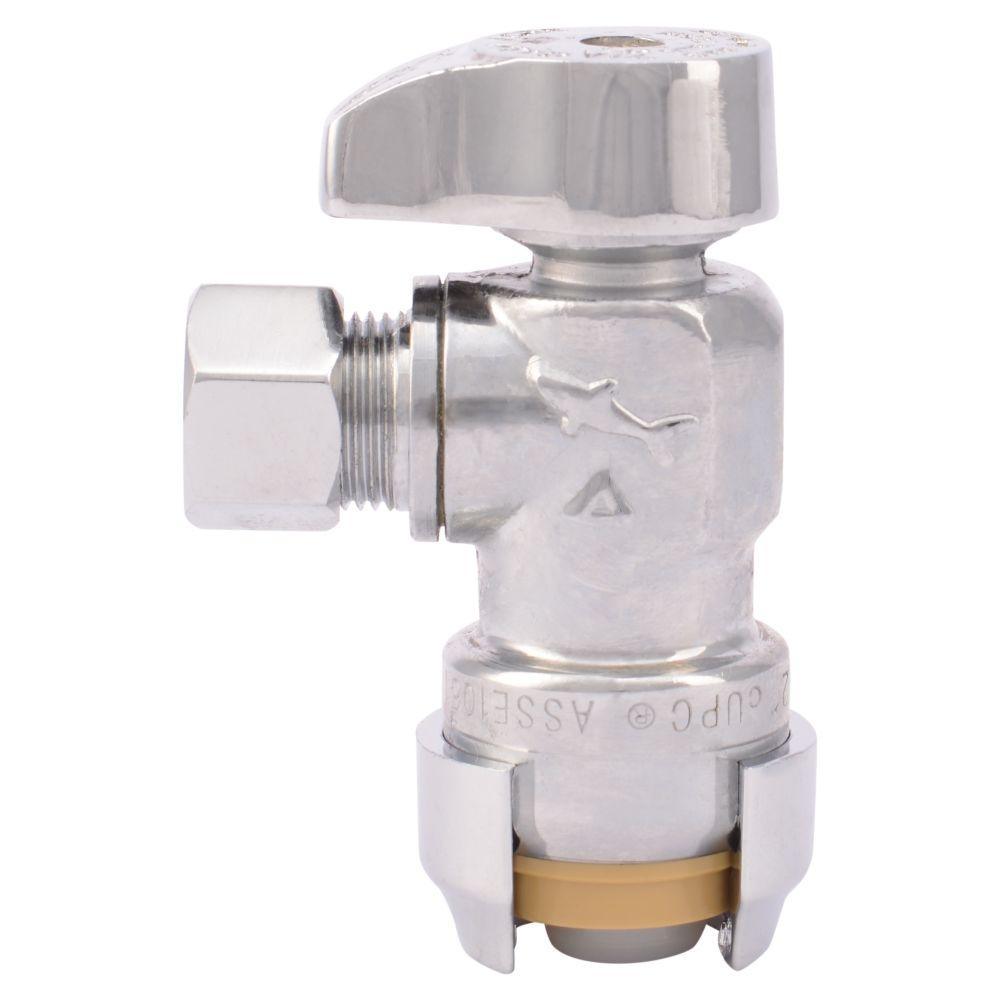

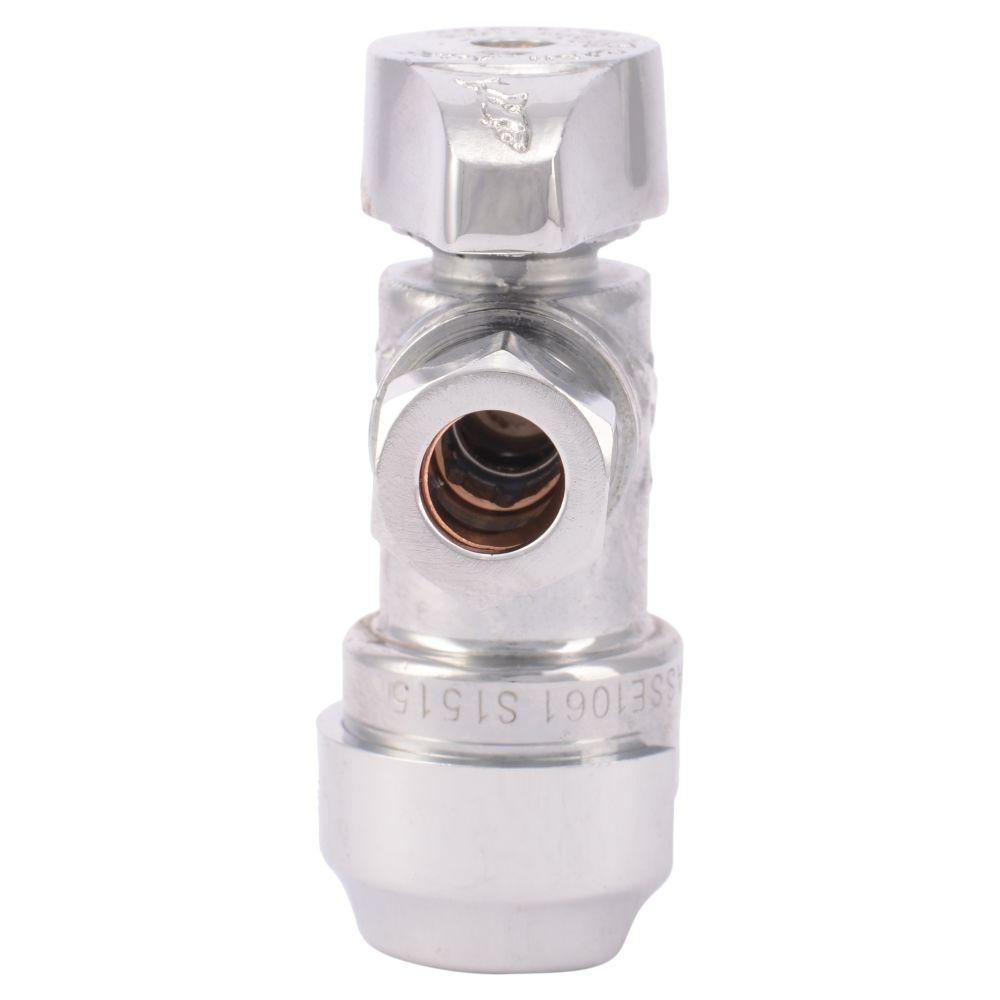

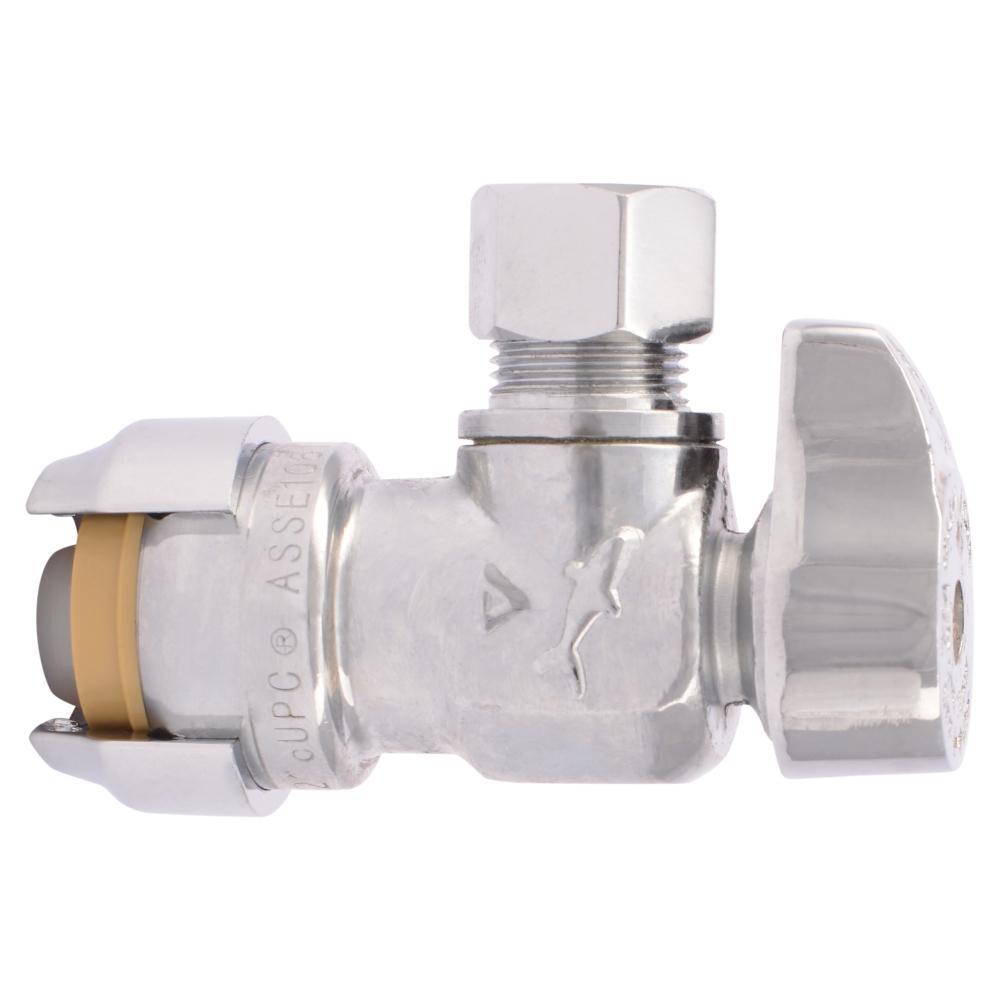

The SharkBite 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Angle Stop Quarter-Turn Angle Valve controls water flow to household plumbing fixtures. The Angle Stop Valve is used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. The SharkBite push-fit end allows you to simply push on to Copper, CPVC or PEX with no solder, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Dis-assembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.
California residents
Lead free chrome-plated DZR brass construction for durability and reliability
Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
Innovative push-to-connect design makes for quick and easy installation
Push-to-connect fittings require no solder, glue, unions, or tools
Fitting can be rotated on pipe after installation making it easier to work in tight spaces
Designed for easy-shut off at end fixtures
Corrosion resistant to improve longevity
Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
Meets all UPC, IPC and cUPC requirements
Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
Rated to 200°F and 200 psi
1/2 in. pipe insertion depth = 15/16 in.
Features
Item Weight
0.252
Application
Potable Water
Inlet Fitting End Type
Push to Connect
Valve Configuration
Angle
Compatible Product
Faucet,Toilet
Valve Type
Supply Stop
Color/Finish Family
Chrome
Returnable
180-Day
Compatible Pipe Material
Multi-Purpose
Features
Quarter Turn
Product Weight (lb.)
0.252
Outlet Fitting End Type
Compression
Material
Brass
Connection
PTC x Comp
Maximum Pressure (psi)
200
Indoor/Outdoor
Indoor
Valve Connection
Push Connect
Stop Valve Type
Angle
Color/Finish
Stainless Steel
Maximum Working Temperature (F)
200
Valve Inlet Diameter (in.)
0.5
Product Width (in.)
1.65

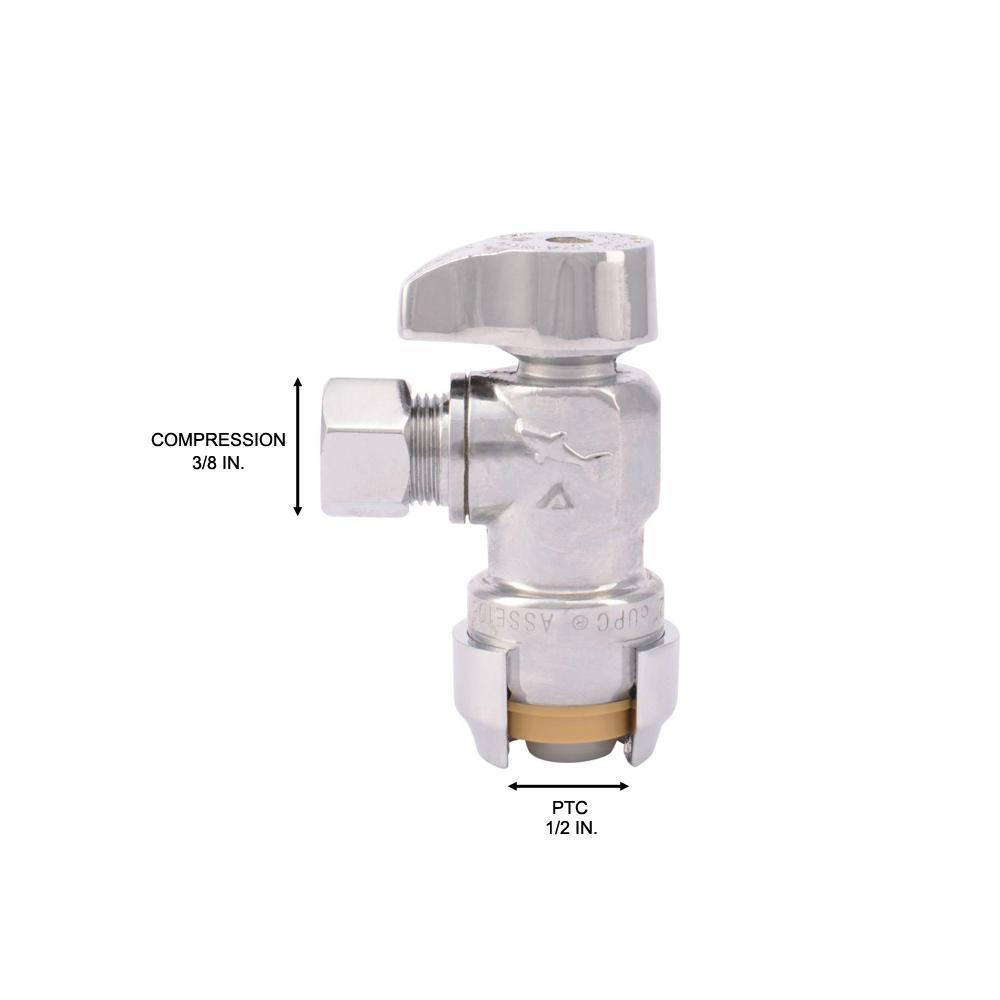

Outlet Diameter (In.)
3/8
Product Height (in.)
2.57
Product Length (in.)
1.25
Product Depth (in.)
1.65
Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
