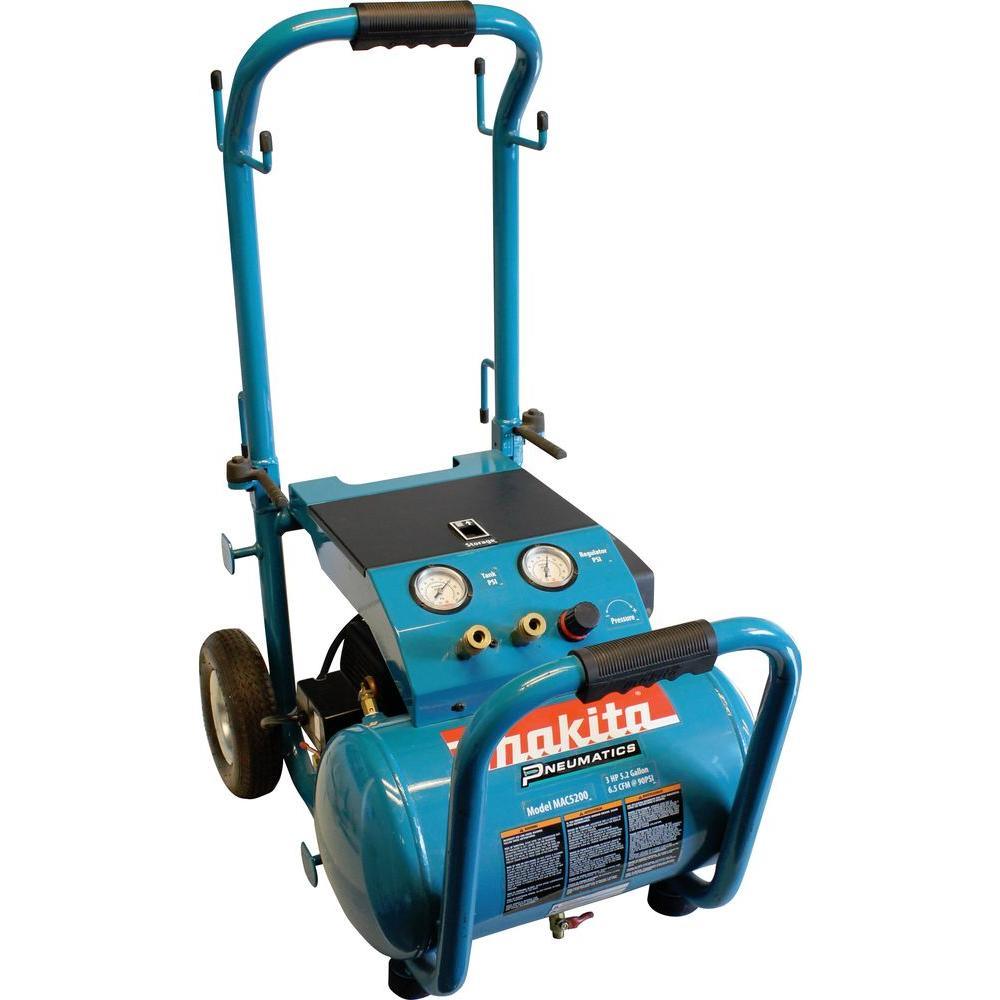

5.2 Gal. 3.0 HP Electric Single Tank Air Compressor

$419.00

/
Shipping calculated at checkout.
Makita's 3.0 HP Air Compressor is equipped with Makita's Big Bore engineered pump cylinder and piston for higher output for two nailers, with less noise and improved job site performance. The MAC5200 delivers industrial power and results with improved durability, and it also includes rugged wheels and a folding handle for easy transport. The MAC5200 is powered by a 3.0 HP motor with built-in thermal overload for additional protection. The engineered pump with cast iron cylinder has greater bore and stroke for increased compression, faster recovery and less noise.
  • California residents

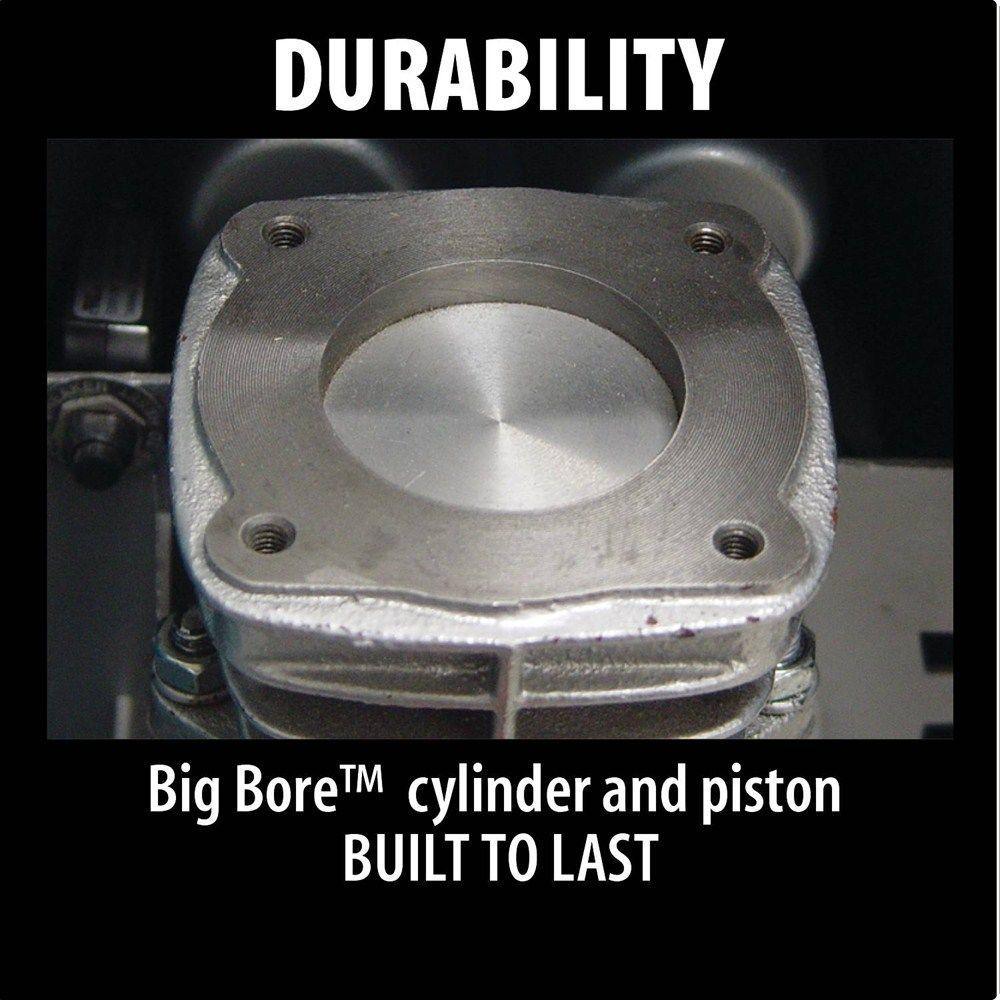

  • Cast iron pump with big bore cylinder and piston is engineered to provide faster recovery time for improved performance

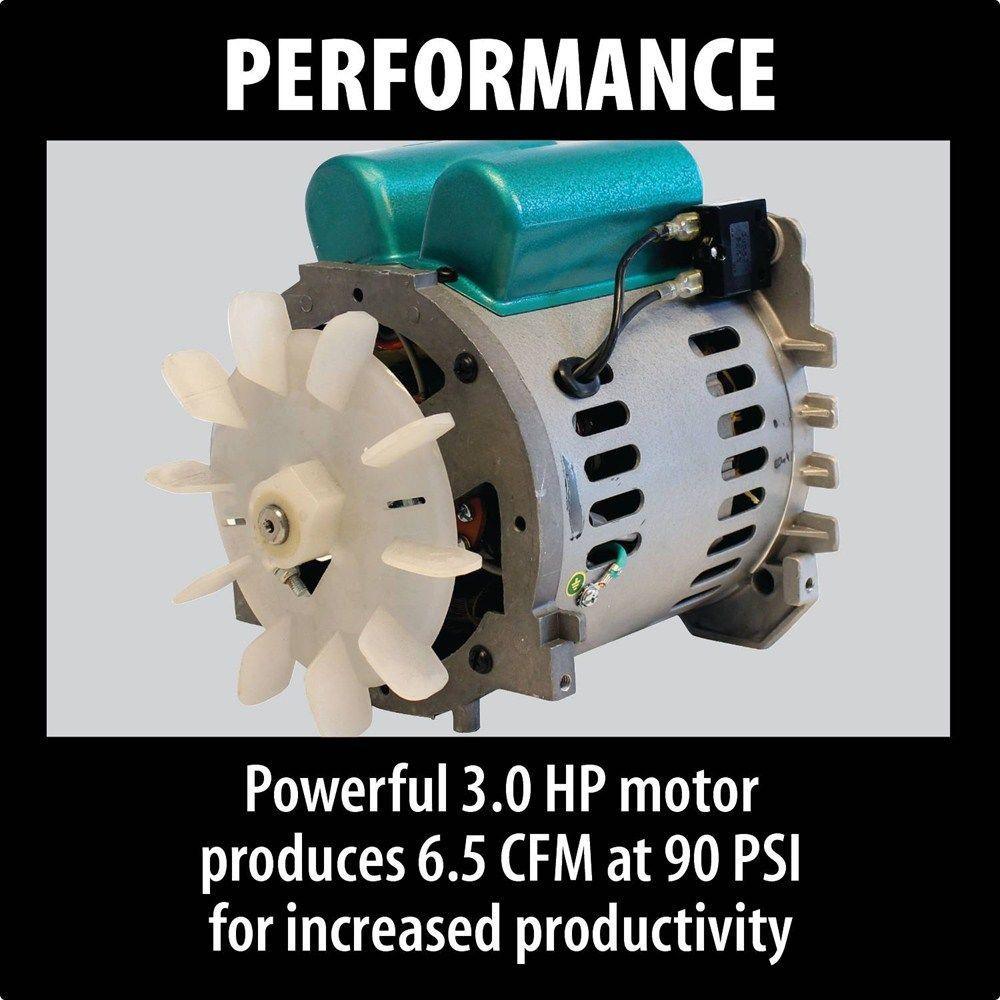

  • Powerful 3 HP motor produces 6.5 CFM at 90 psi for increased productivity
  • Pump is oil-lubricated for cooler running temperatures and reduced wear
  • Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance

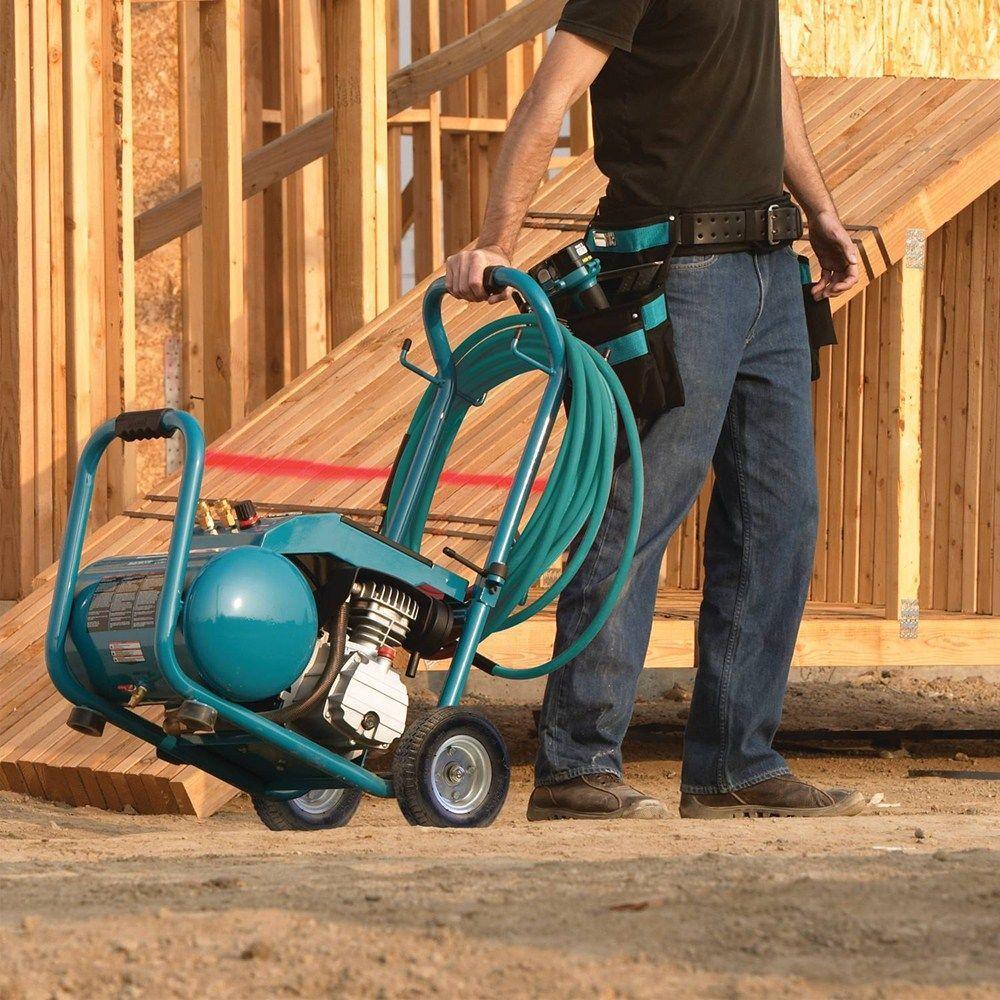

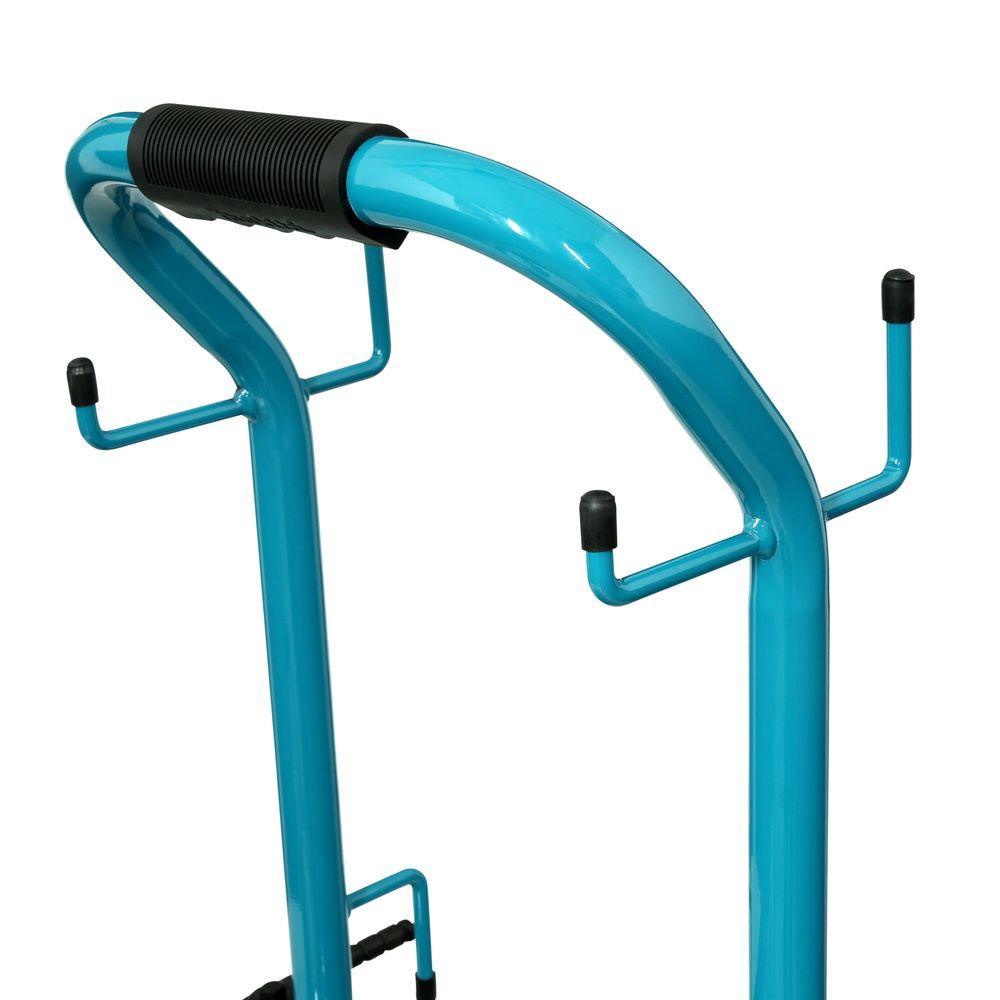

  • Folding handle with low-profile design for easy storage with handle folded

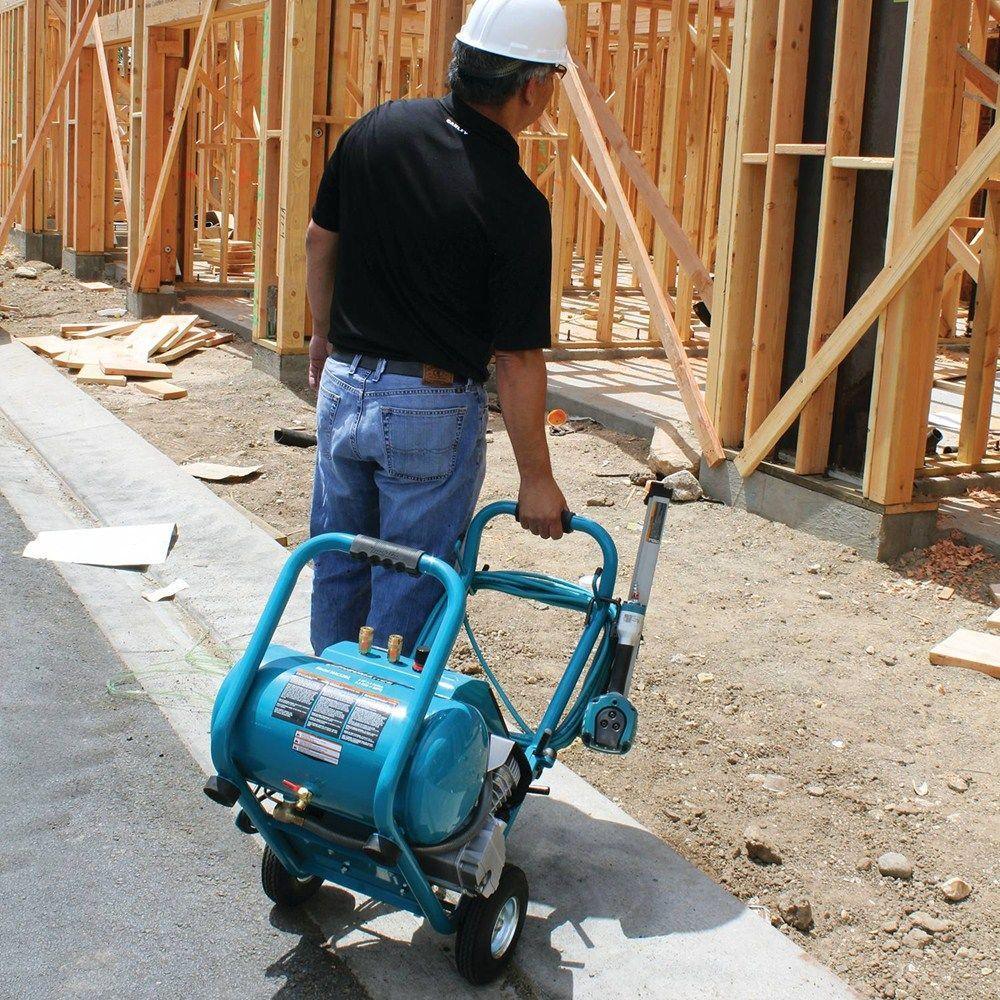

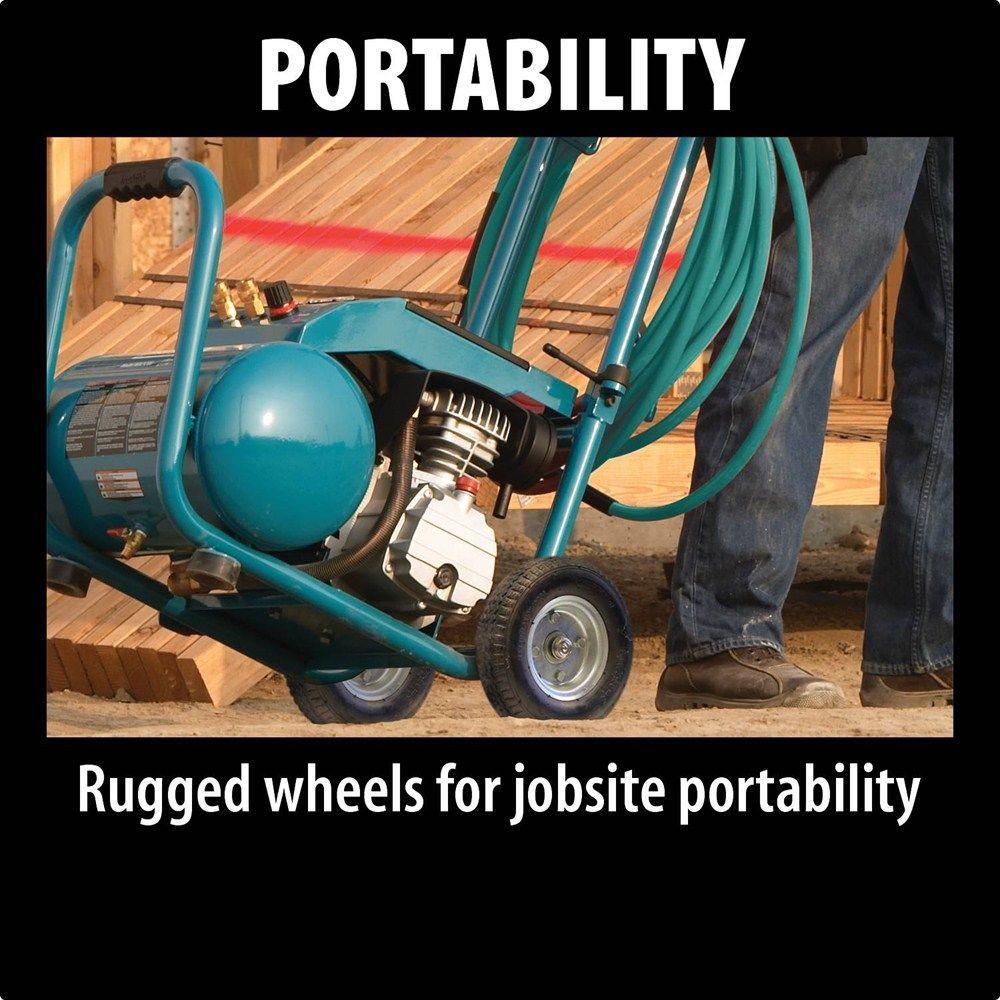

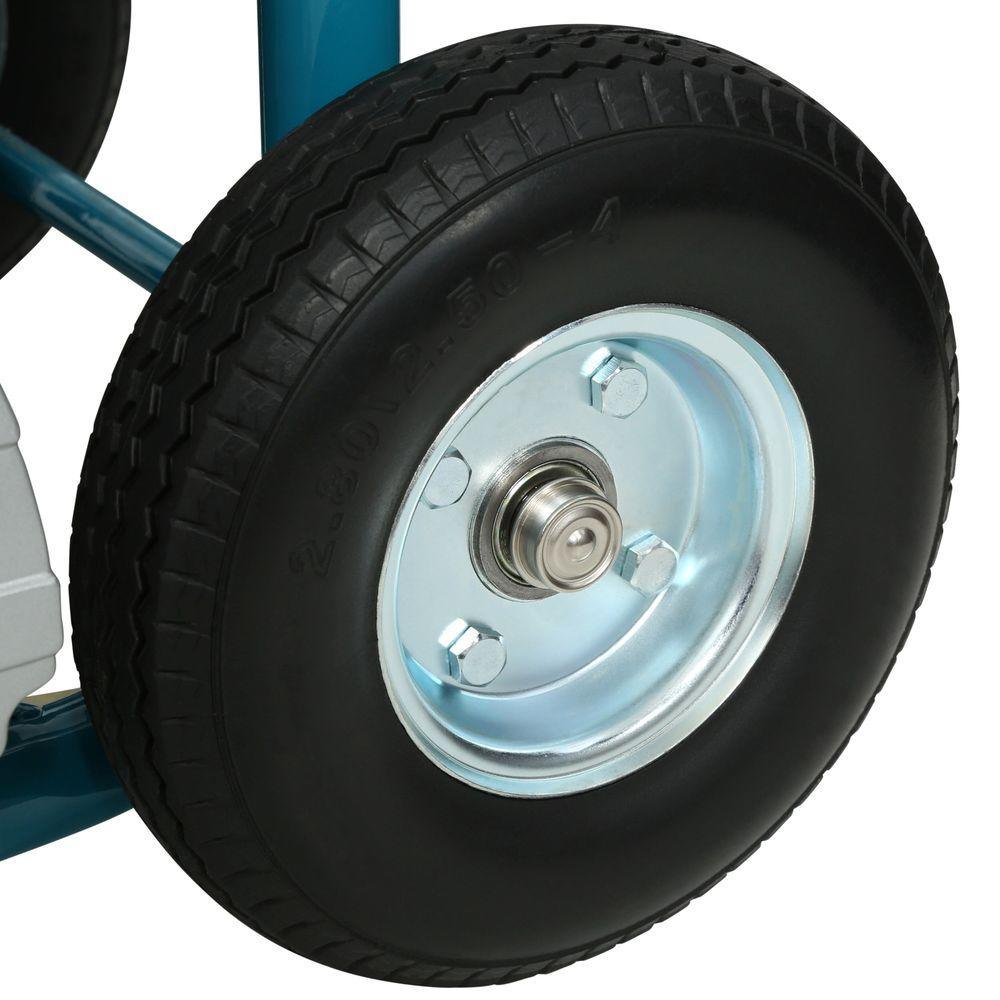

  • Rugged wheels for job site portability
  • Built-in storage compartment conveniently stores air fittings and accessories
  • Air hose wrap stores 50 ft. of 3/8 in. air hose with handle folded or upright
  • Copper finned discharge tubing for increased heat dissipation and reduced water in the tank
  • Tool hangers store tools when not in use

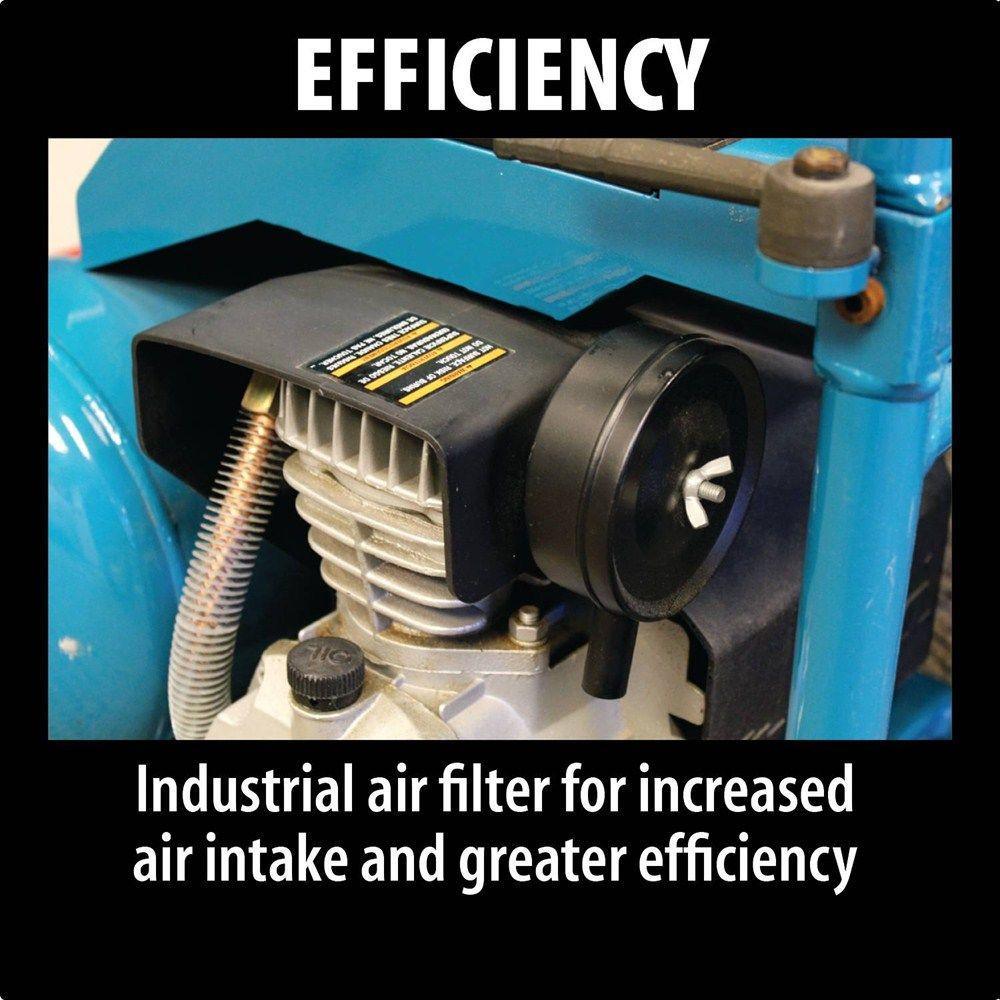

  • Large automotive style industrial air filter for increased air intake and greater efficiency
  • Roll cage construction for extra protection to pump and motor assembly
  • Oil sight glass for fast, easy and efficient maintenance
  • Lever handle ball valve - tank drain valve improves upon standard petcock design for easier maintenance
  • Convenient oil drain at the front of the pump for easy access
  • Built-in thermal overload for additional motor protection
  • 1-year warranty
  • Includes compressor oil (181122-A) and 1/4 in. universal quick coupler (447013-E)
  • <>Need help? CLICK HERE to view our Air Compressor Buying Guide


Features
Item Weight 88
Portable Yes
Compressor Type Framing & Roofing
Amperage (amps) 13.8
Compressor Tank Capacity (Gallons) 5.2
Power Type Corded Electric
Air Delivery SCFM @ 90PSI 6.5
Returnable 30-Day
Product Weight (lb.) 88
Number of Total Batteries Included 0
Voltage (volts) 120
Tank Style Horizontal
Included No additional components or accessories are included
Condition New
Compressor Volume Rating Standard
Horsepower (hp) 3 hp
Application Use Blow Cleaning,Brad Nailing/Stapling,Drilling,Finish Nailing,Hobby Nailing,Hobby Painting,Roof Nailing,Spraying
Decibel Rating (Outdoor) 90 dBA
Lubrication Type Oil-Lubricated
Tools Product Type Air Compressor
Maximum Pressure (psi) 140
Charger Included Charger Not Included
Reconditioned No
Air Delivery SCFM @ 40PSI 6.9
Battery Amp Hours No Battery
Battery/Charger Tool Only
Compressor/Air Tool Features Handle
Tank Material Steel
Compressor Tank Capacity (Gal.) 5.2 Gal.
Power Source Electric
Voltage (v) 120v
Stage Count Single Stage
Product Depth (in.) 29
Product Width (in.) 19
Product Height (in.) 19.5
Certifications and Listings UL Listed
Manufacturer Warranty 1 Year Warranty
