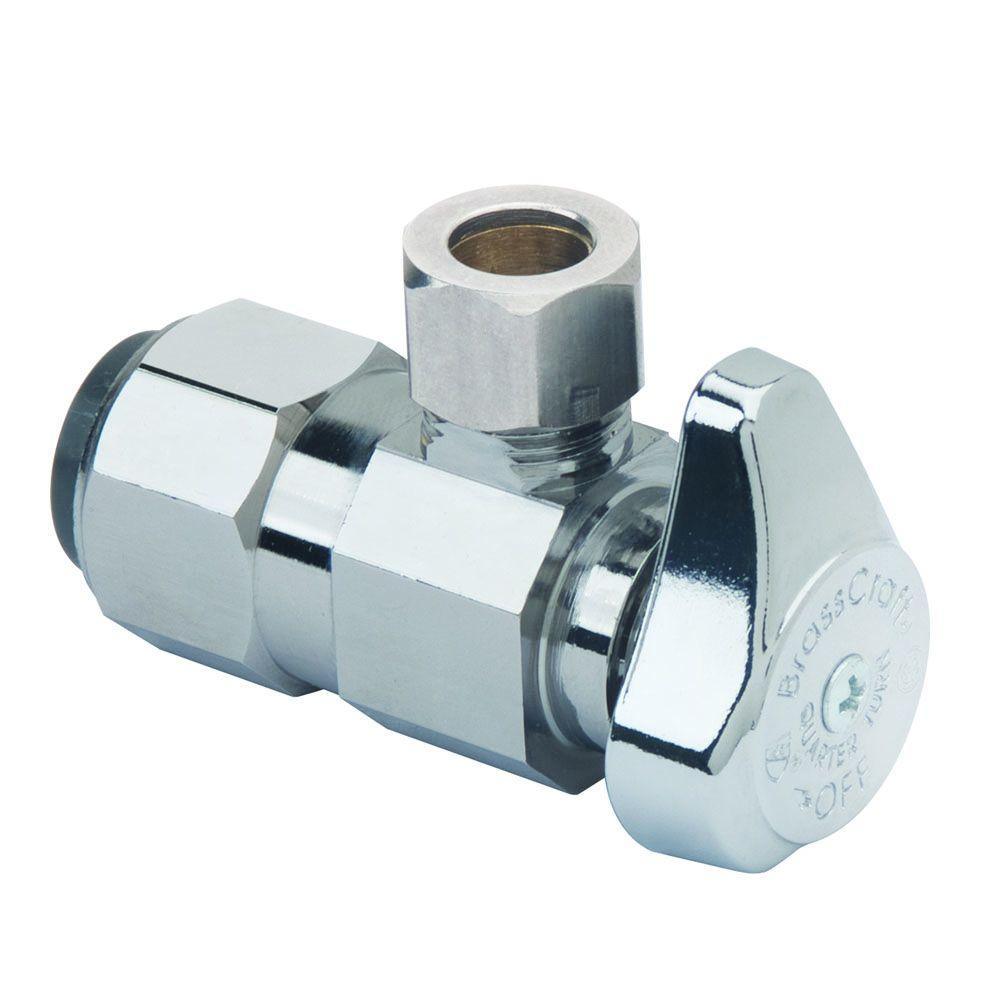

1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
Regular price $10.62/
Shipping calculated at checkout.
The 90 degree handle design on the BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Valve allows you to stop the water flow leading to a plumbing fixture without disrupting the entire house flow. The Push Connect valve feature makes installation easy requiring no special tools, soldering or glue for a watertight seal. This angle valve is best used where the water pipe enters the room from the floor and on faucets, toilets, dishwashers, icemakers or washing machines.
Features
- Compatible with PEX, copper and CPVC
- Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
- Installation ready: requires no special tools, soldering or glue for a watertight seal
- 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
- Pre-inserted tube stiffener is “installation ready” for a faster connection
- Easy-to-remove handle protects against accidental operation during rough-ins
- Chrome-plated brass
- Temperature rating: 40° to 140°F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
Features
| Item Weight | 0.253 |
| Color/Finish Family | Brass |
| Application | Potable Water |
| Color/Finish | Chrome |
| Inlet Fitting End Type | Push to Connect |
| Features | Lead Free |
| Valve Configuration | Angle |
| Valve Type | Stop |
| Maximum Working Temperature (F) | 140 |
| Returnable | 180-Day |
| Maximum Pressure (psi) | 125 |
| Outlet Fitting End Type | Push to Connect |
| Compatible Product | Faucet,Toilet,Washing Machine |
| Compatible Pipe Material | Copper |
| Indoor/Outdoor | Indoor,Outdoor |
| Product Weight (lb.) | 0.253 |
| Material | Brass |
| Connection | PTC x Comp |
| Valve Connection | Push Connect |
| Pack Size | 1 |
| Stop Valve Type | Angle |
| Outlet Diameter (In.) | 3/8 |
| Product Length (in.) | 2.25 |
| Product Height (in.) | 2.25 |
| Product Depth (in.) | 1.19 in |
| Inlet Diameter (In.) | 1/2 |
| Product Width (in.) | 1.19 |
| Valve Inlet Diameter (in.) | .500 |
| Inlet Size | 1/2 In. |
| Manufacturer Warranty | Limited Manufacturer Warranty |
