QO 200 Amp 42-Space 52-Circuit Indoor Main Breaker Plug-On Neutral Load Center without Cover

$252.57

/
Shipping calculated at checkout.
The Square D QO 200 Amp 42-Space 42-Circuit Convertible Main Breaker Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • California residents
  • Cover sold separately
  • Engineered for a quick plug-on neutral breaker connection on every circuit, fewer connections, faster installation, and no pigtails frees up gutter space
  • Includes a factory-installed 200 Amp main breaker, cover QOC42UF or QOC42US sold separately
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA


Features
Item Weight 23.0
Load Center Mounting Type Flush,Surface
Voltage (volts) 120/240
Number of Spaces 42
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Electrical Product Type Load Center
Product Weight (lb.) 23.0
Indoor/Outdoor Indoor
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 200
Number of Circuits 52

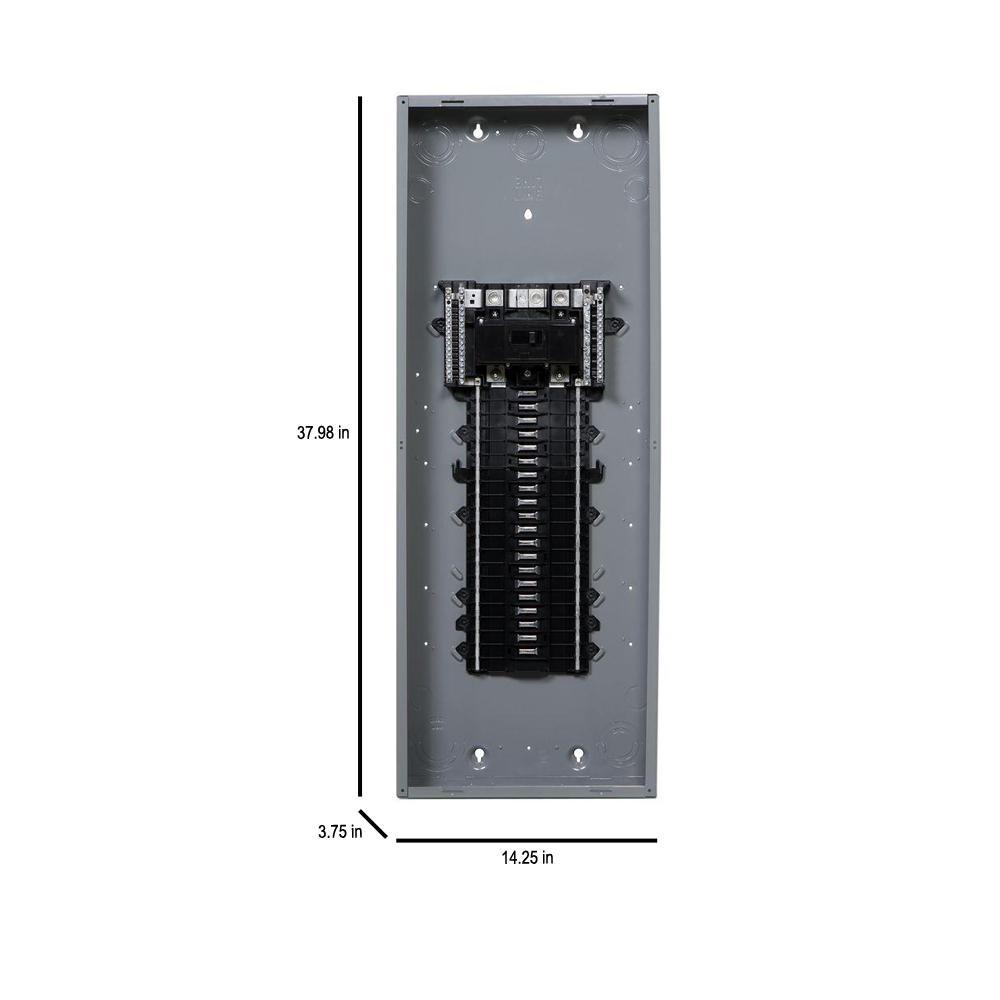

Load center width (in.) 14.25
Load center depth (in.) 3.75
Load center height (in.) 37.98
Manufacturer Warranty Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.
Certifications and Listings UL Listed
