QO 200 Amp 42-Space 42-Circuit 3-Phase Main Breaker Load Center

$507.29

/
Shipping calculated at checkout.

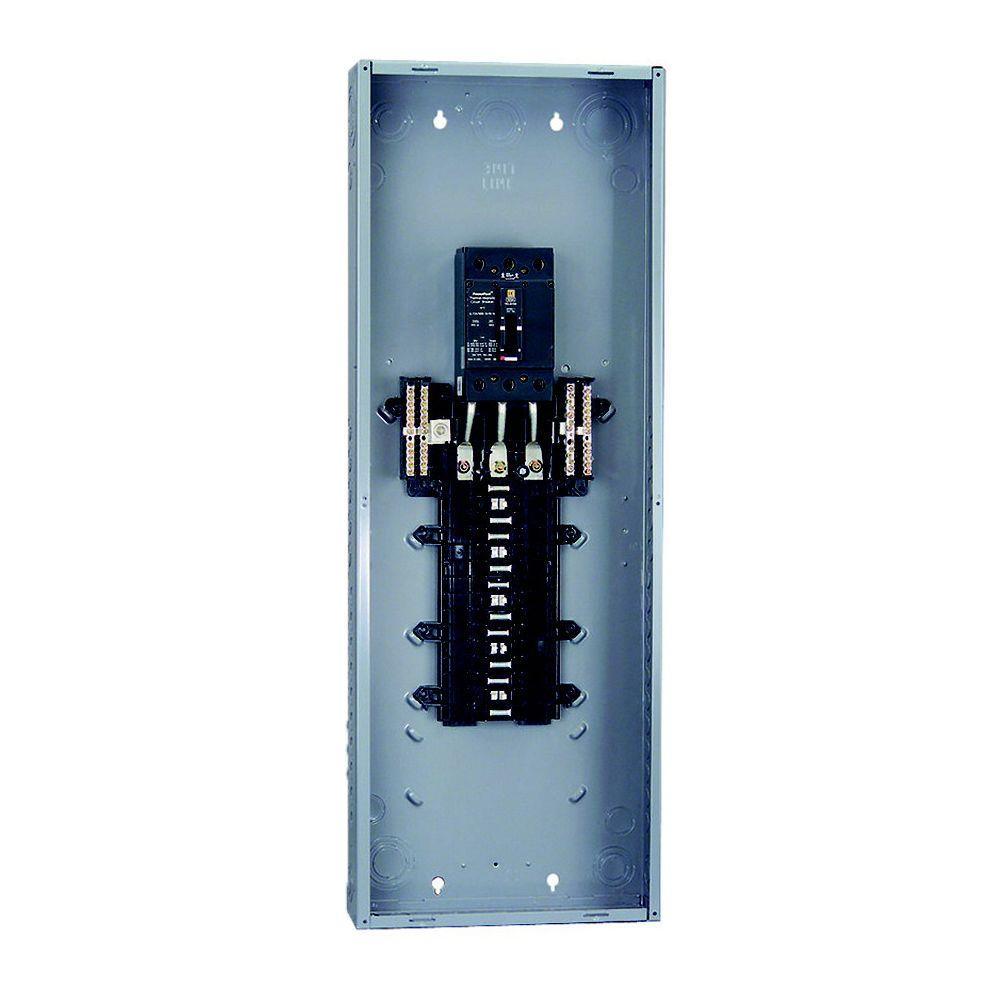

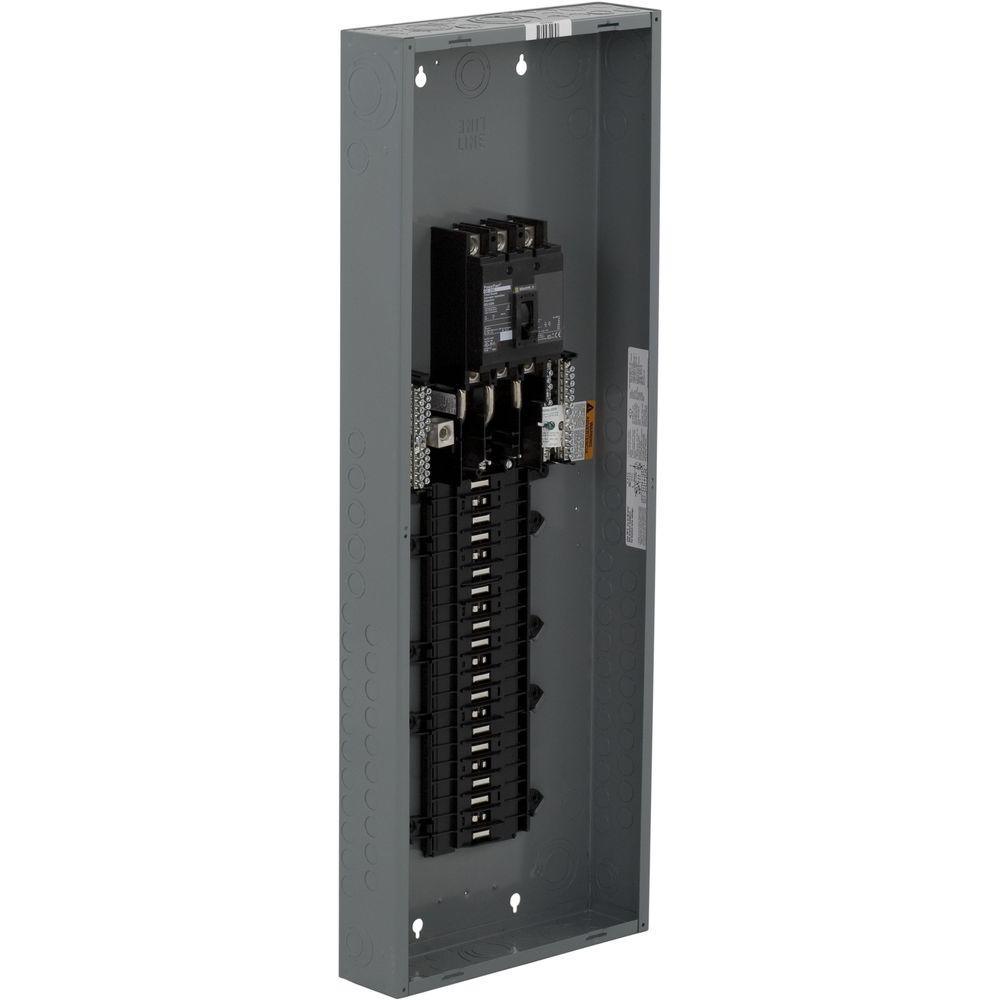

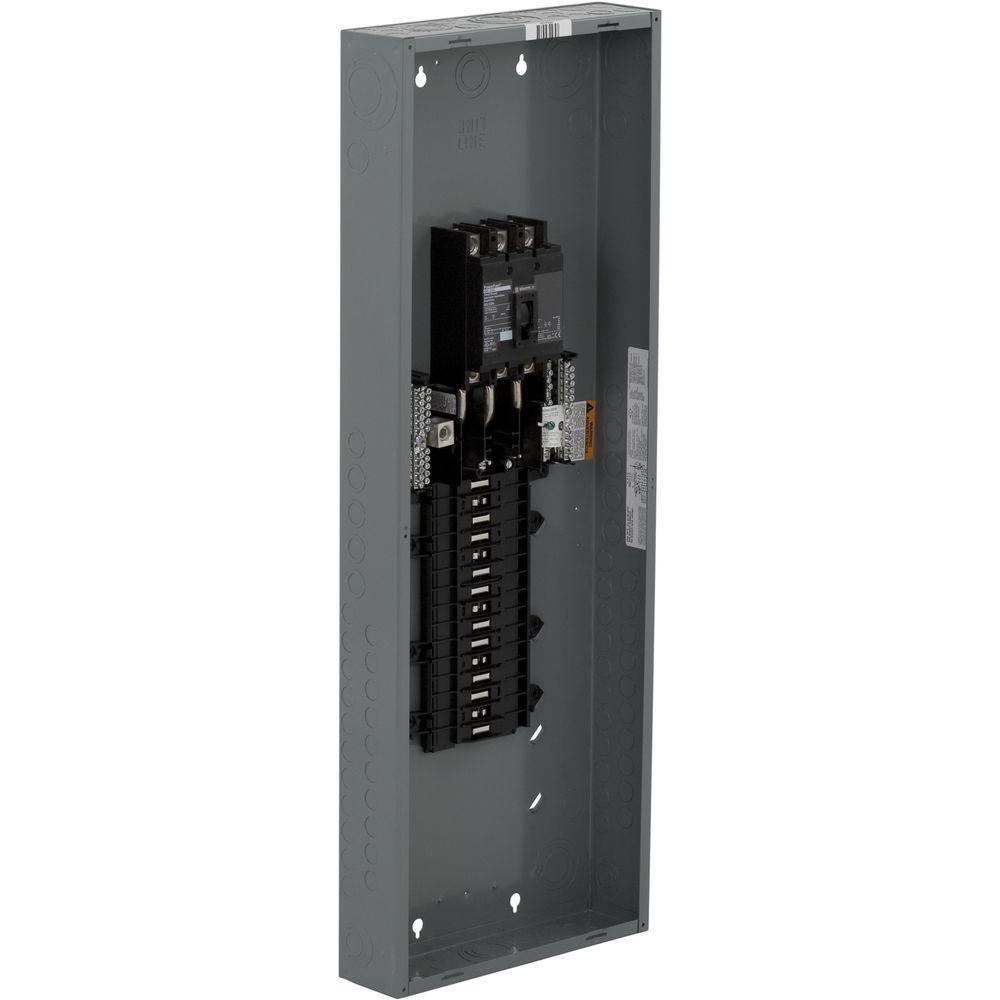

The Square D QO 3-Phase 200 Amp Main Breaker 42-Space 42-Circuit Convertible Indoor Load Center is UL Listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the World's Finest designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • California residents
  • Cover sold separately
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • 3 phase
  • Rated 208Y/120 VAC and 25,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire


Features
Item Weight 26.5
Number of Circuits 42
Load Center Mounting Type Flush,Surface
Voltage (volts) 120/240
Load Center Type Main Breaker
Electrical Product Type Load Center
Product Weight (lb.) 26.5
Number of Spaces 42
Phase Type 3 Phase
Indoor/Outdoor Indoor
Returnable 180-Day
Mounting Type Plug-On
Maximum Amperage (amps) 200
Load center width (in.) 14.25
Load center depth (in.) 3.75
Load center height (in.) 39.37
Manufacturer Warranty Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.
Certifications and Listings UL Listed
