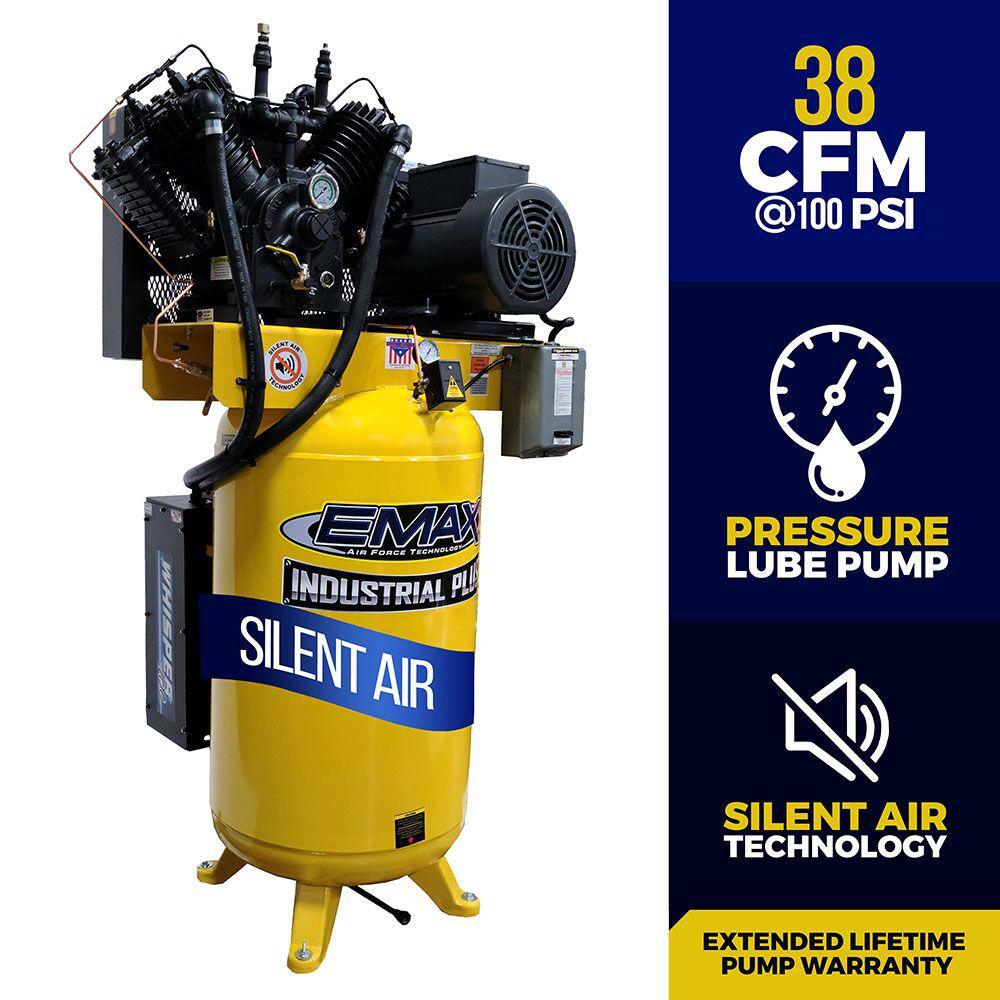

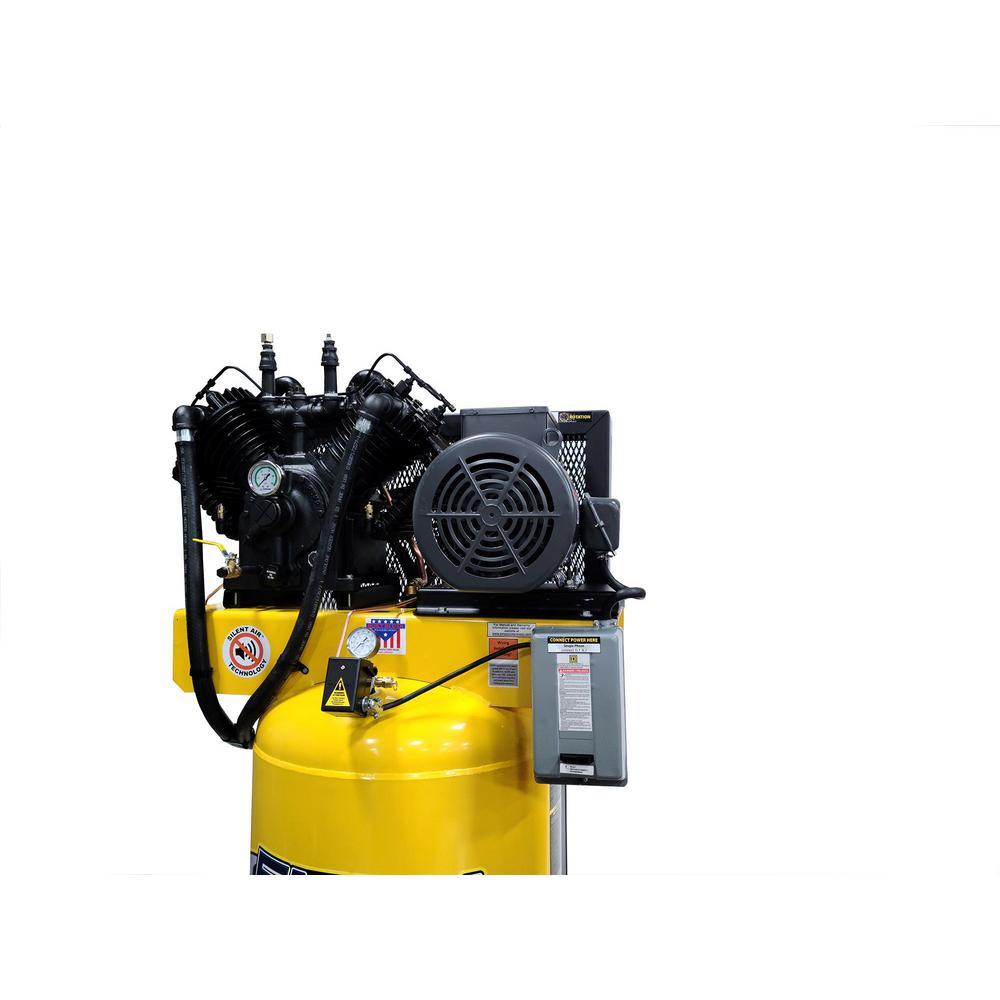

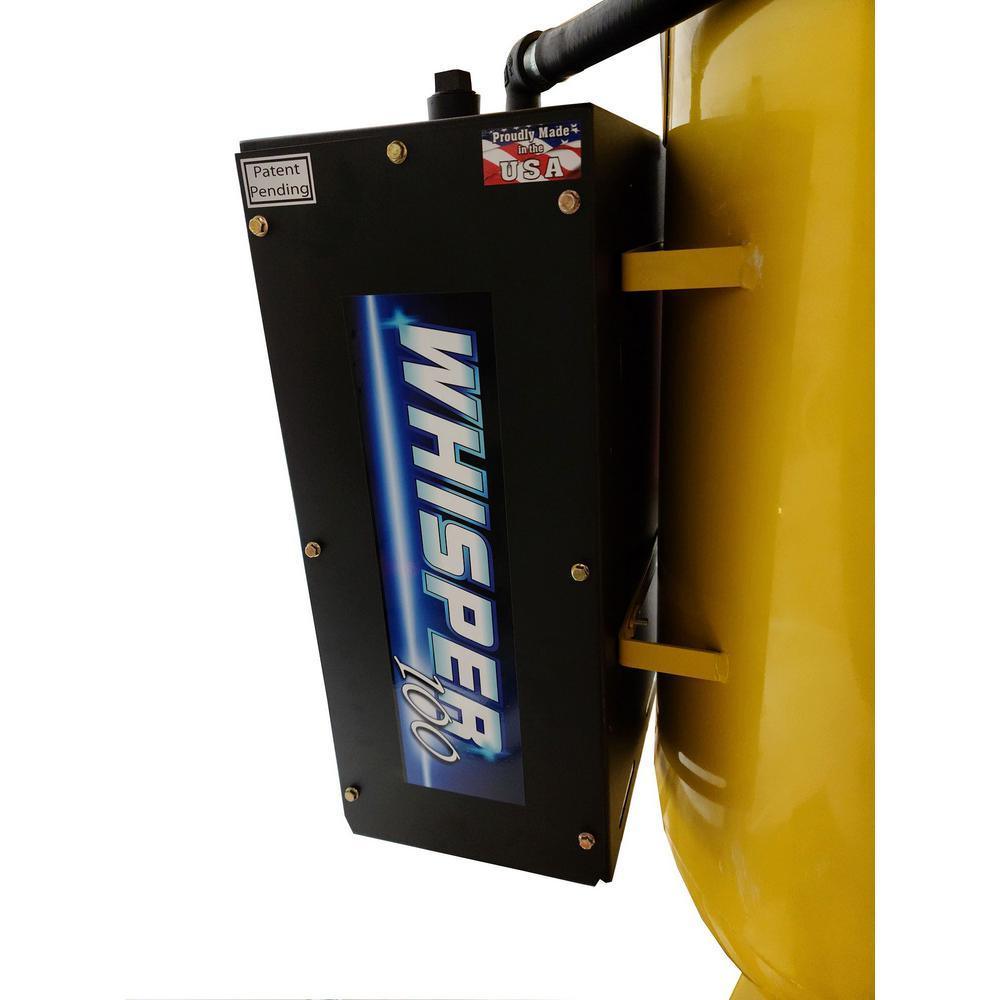

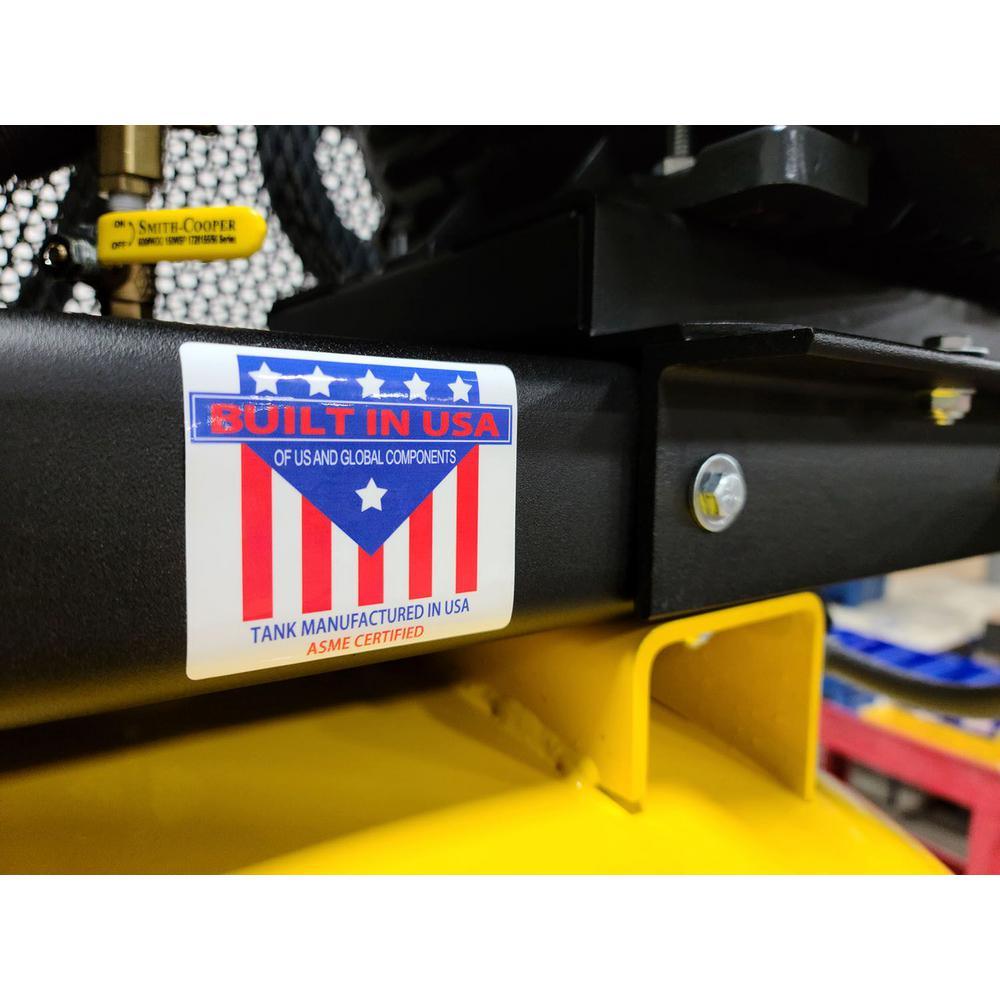

EMAX Compressor Tools and Equipment deliver overwhelming performance to ensure they meet the needs of the most demanding environments. All products are designed with exacting tolerance and specifications to deliver all the power that is needed at the Job site, Garage or Shop for extreme performance. This EMAX Industrial Plus 10 HP 2 Stage V4 1 Phase vertical 80 Gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 CFM @ 100 PSI, top PSI of 175. Our unit features industrial TEFC electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Patented Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry.
Item Weight |
952 |
Power Type |
Corded Electric |
Voltage (v) |
208/230v |
Returnable |
30-Day |
Number of Total Batteries Included |
0 |
Compressor/Air Tool Features |
Tank Pressure Gauge |
Decibel Rating (Outdoor) |
67 dBA |
Air Delivery SCFM @ 40PSI |
42.0 |
Compressor Tank Capacity (Gallons) |
80 |
Included |
No additional components or accessories are included |
Condition |
New |
Application Use |
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep |
Tank Style |
Vertical |
Maximum Pressure (psi) |
175 |
Voltage (volts) |
208/230 |
Portable |
No |
Compressor Volume Rating |
Quiet |
Compressor Tank Capacity (Gal.) |
80 Gal. |
Horsepower (hp) |
10 hp |
Lubrication Type |
Oil-Lubricated |
Tools Product Type |
Air Compressor |
Compressor Type |
Garage & Industrial |
Product Weight (lb.) |
870 lb |
Charger Included |
Charger Not Included |
Reconditioned |
No |
Battery Amp Hours |
No Battery |
Battery/Charger |
Tool Only |
Air Delivery SCFM @ 90PSI |
39.0 |
Tank Material |
Steel |
Stage Count |
Two Stage |
Amperage (amps) |
40 A |
Power Source |
Electric |

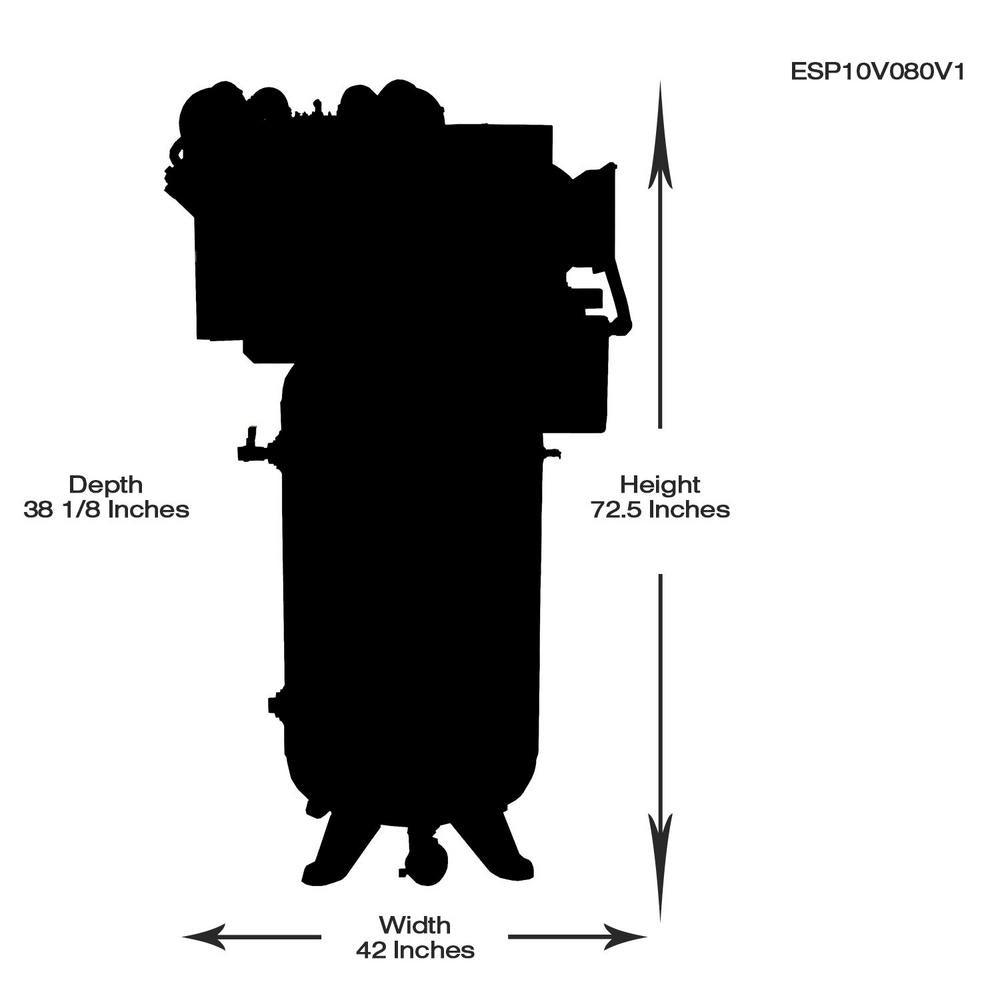

Product Width (in.) |
42 in |
Product Depth (in.) |
38 in |
Product Height (in.) |
72 in |
Certifications and Listings |
CSA Certified,ETL Classified,UL Certified |
Manufacturer Warranty |
5 Year |
