3/4 in. Push-to-Connect x 3/4 in. Female Pipe Thread x 18 in. Braided Stainless Steel Water Heater Connector with BV
Regular price $29.96/
Shipping calculated at checkout.

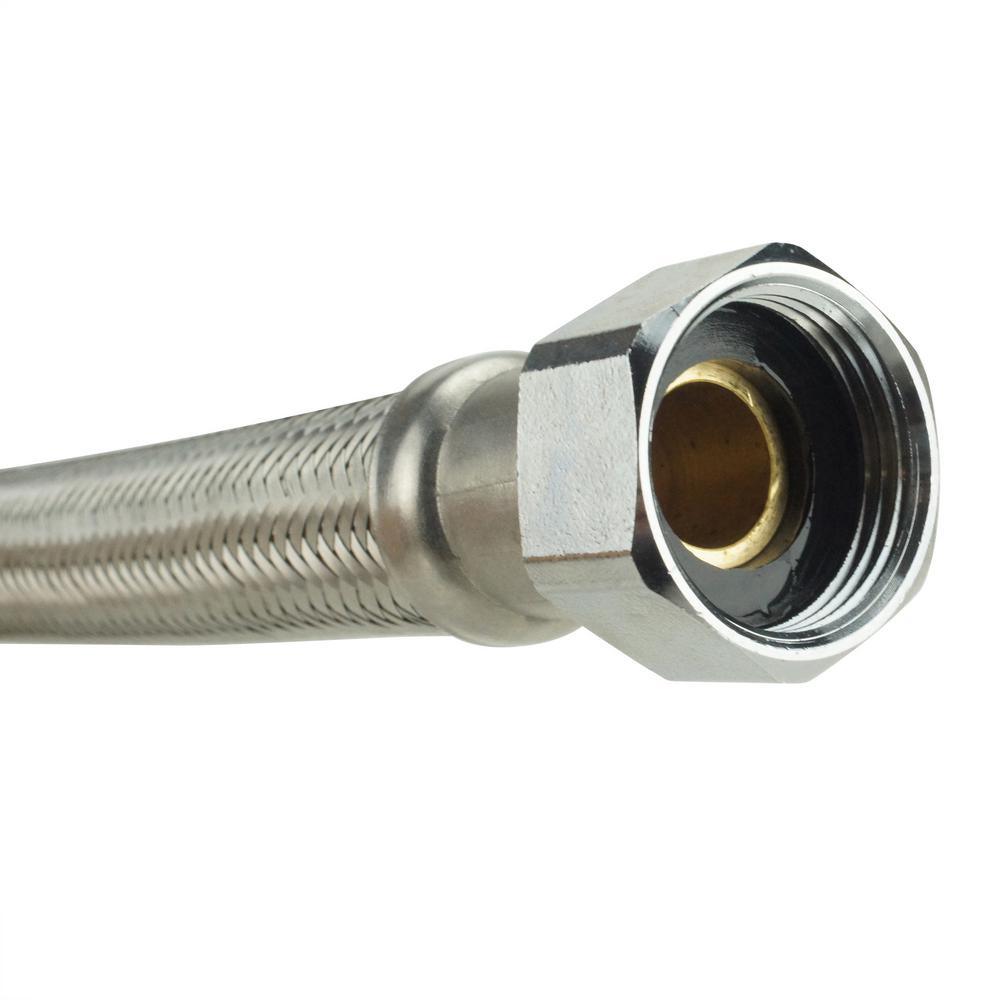

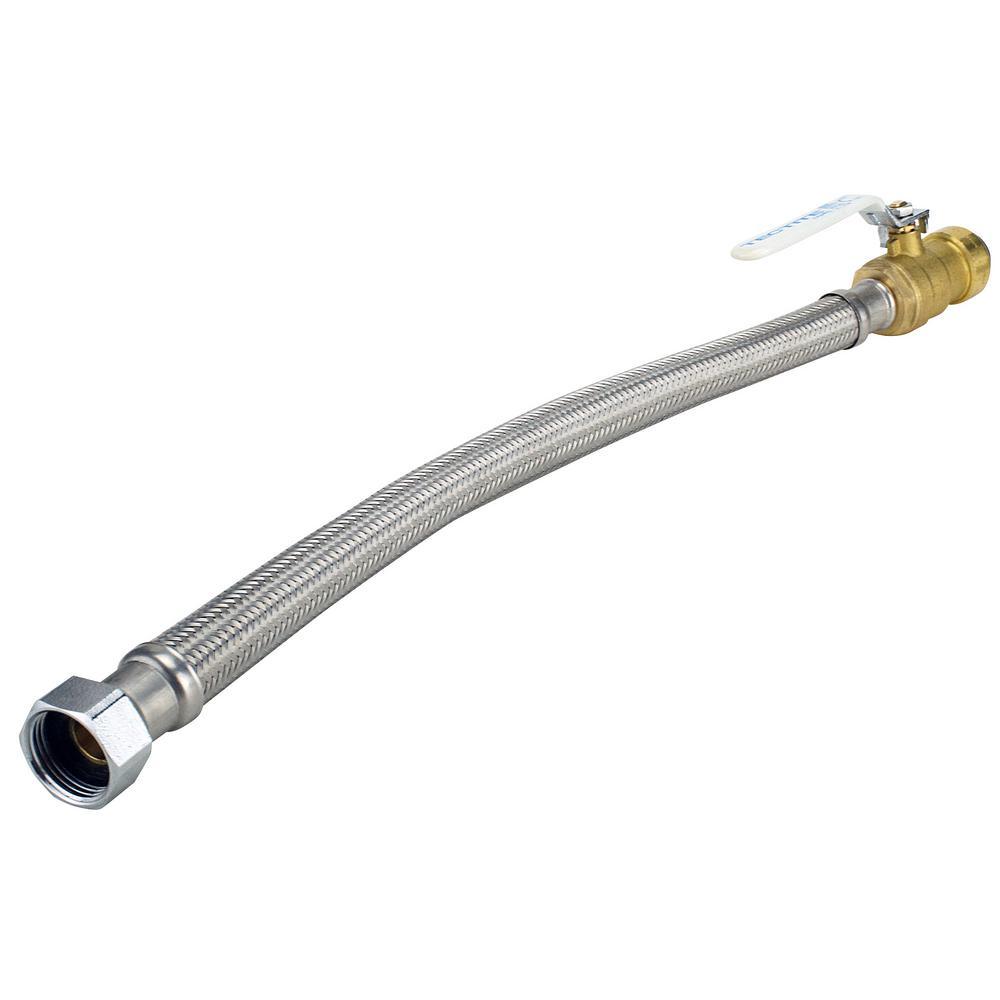

The 3/4 in. x 18 in. Tectite by Apollo Water Heater Connector with Factory Integrated Ball Valve was designed for the fast and simple installation of hot and cold water lines to water heaters. After applying pipe thread tape to the MNPT nipples on your water heater, thread the FNPT end of the Water Heater connector onto the tank and tighten with pliers. Then simply push the Tectite by Apollo Push-To-Connect end onto Copper, PEX, or CPVC pipes and your water heater is connected. The Integrated Ball Valve on the Tectite by Apollo Water Heater Connector provides a quarter-turn, single handle shut-off. The braided stainless steel lines are available in different lengths from 12 in. - 24 in. (without Ball Valve) and are also available in Corrugated Stainless Steel. Tectite by Apollo Water Heater Connectors dramatically reduce water heater installation times.
Features
- California residents
- Constructed of lead free dezincification resistant (DZR) brass and braided stainless steel for superior reliability and strength
- Push-to-connect joints require no heat, solder, solvents or tools
- Push-to-connect design allows for a simple and fast installation of water heaters to any combination of copper, PEX, CPVC or PE-RT pipe
- Fittings can be rotated after being installed for ease of use in tight spaces
- Ideal for potable water and hydronic heating applications

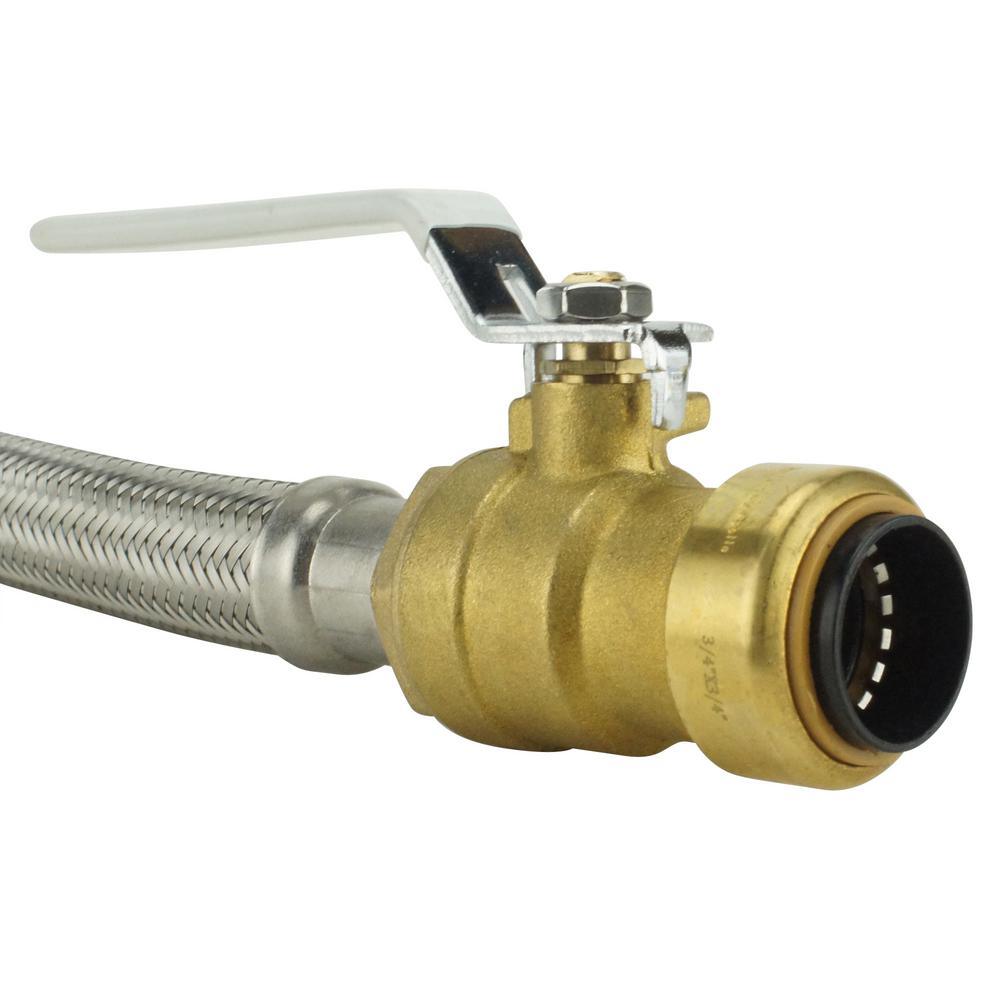

- Quarter turn lever handle for simple flow control
- Meets UPC, IPC, and cUPC standard requirements and listed by IAPMO and listed to ASSE 1061/NSF 58
- Demount clip allows for valve removal (included)
- Approved for behind-the-wall with no access and burial
- Corrosion resistant for greater longevity
- Maximum working pressure of 200 psi and maximum temperature of 250°F
Features
| Item Weight | 1.25 |
| Finish Family | Silver Metallic |
| Material | Stainless Steel and Brass |
| Includes | No Additional Items Included |
| Pack Size | 1 |
| Product Weight (lb.) | 1.25 lb |
| Returnable | 180-Day |
| For Use With | Electric Tank,Electric Tankless,Gas Tank,Gas Tankless |
| Vent Part Type | Flexible Connector Vent |
| Product Height (in.) | 2.79 in |
| Product Width (in.) | 18 in |
| Product Depth (in.) | 2.79 in |
| Manufacturer Warranty | 5 Years: Must be installed per published installation instructions. |
