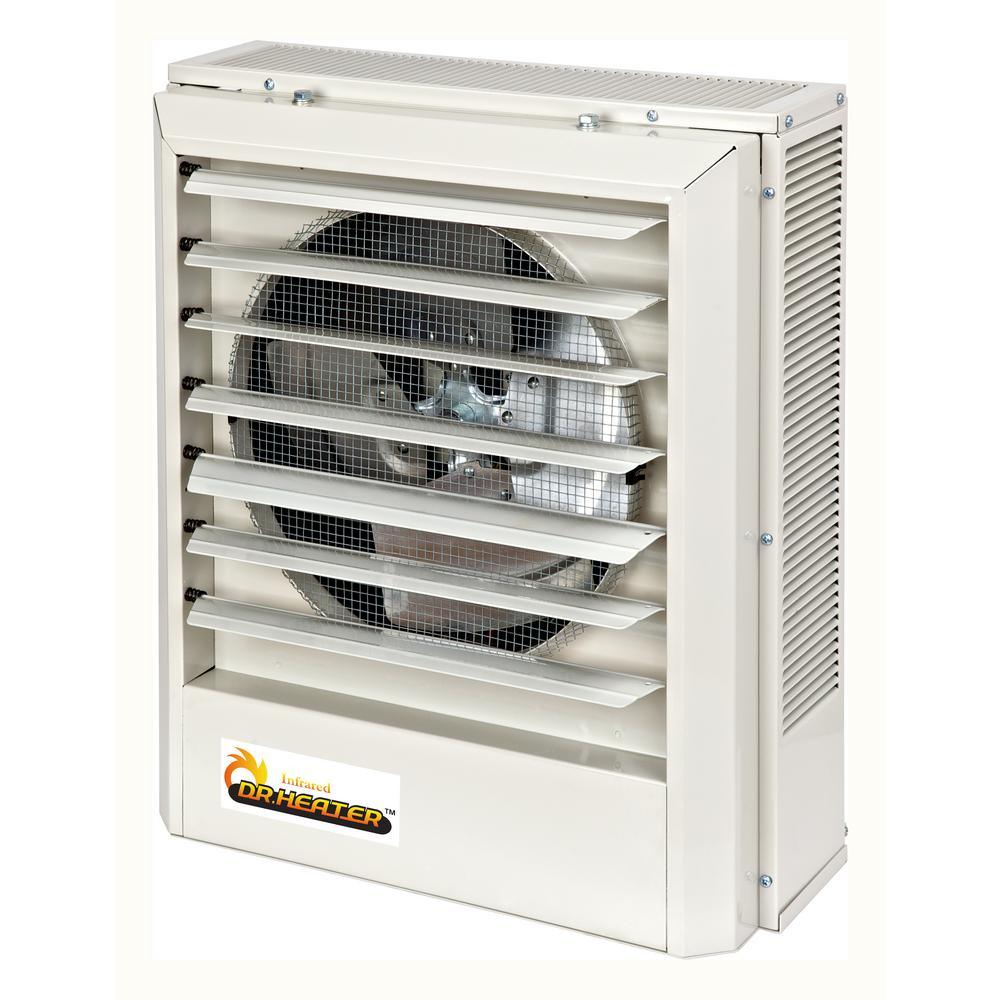

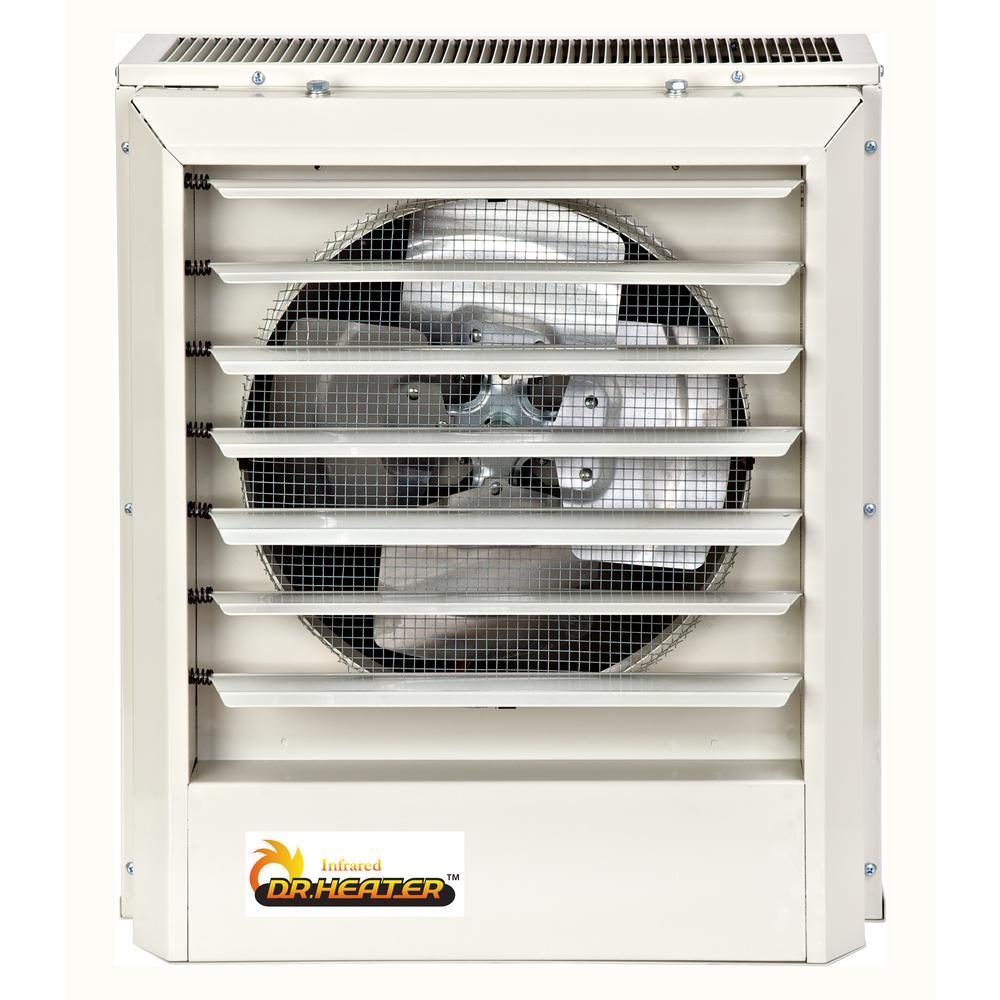

These heavy-duty electric fan forced unit heaters are best suited for factories, schools, service buildings, dormitories, hospitals, stock rooms and other public buildings. The heaters high capacity and wide range of voltages and phases selections meet most installation requirements. All units are equipped with overheat protection and a totally enclosed, permanently lubricated motor. Products can be installed for use in down flow or horizontal applications. These unit heater models are available in 208-Volt, 240-Volt, 480-Volt and from 3kW to 20kW; single-phase and/or 3-phase.
- Models within this series have inputs available from 208-Volt to 480-Volt
- Uniform air distribution evenly fills a large room
- Quick easy low-cost installation can be mounted horizontally or vertically
- Long lasting, high efficiency heating element
- Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing
- UL listed
Features
Item Weight |
41 |
Thermostat |
No |
Wattage (watts) |
10000 |
Area Heated (Sq. Ft.) |
1000 ft² |
Indoor/Outdoor |
Indoor |
Accessories Included |
No |
Anti-freeze setting |
No |
Heat Output (BTU/hour) |
34100 |
Style |
Industrial |
Heating Product Type |
Electric Wall Heater |
Product Weight (lb.) |
41 |
Number of Heat Settings |
3 Heat |
Room Size (sq. ft.) |
Greater than 1000 |
Fuel Type |
Electric |
ACLI Safety Plug |
No |
Automatic shutoff |
Yes |
Remote Control |
No |
Color Family |
Grays |
Heater Type |
Forced Air |
Voltage (volts) |
240 |
Oscillation |
No |
Installation |
Surface Mounted |
Timer Included |
No |
Returnable |
180-Day |
Color |
Gray |
Heater Controls |
Thermostat |
Heating Technology Type |
Forced Air |
Amperage (amps) |
42 |
Product Width (in.) |
9 |
Product Depth (in.) |
19 |
Product Height (in.) |
22 |
Manufacturer Warranty |
1 year limited parts and components |
Certifications and Listings |
UL Certified,UL Listed |
