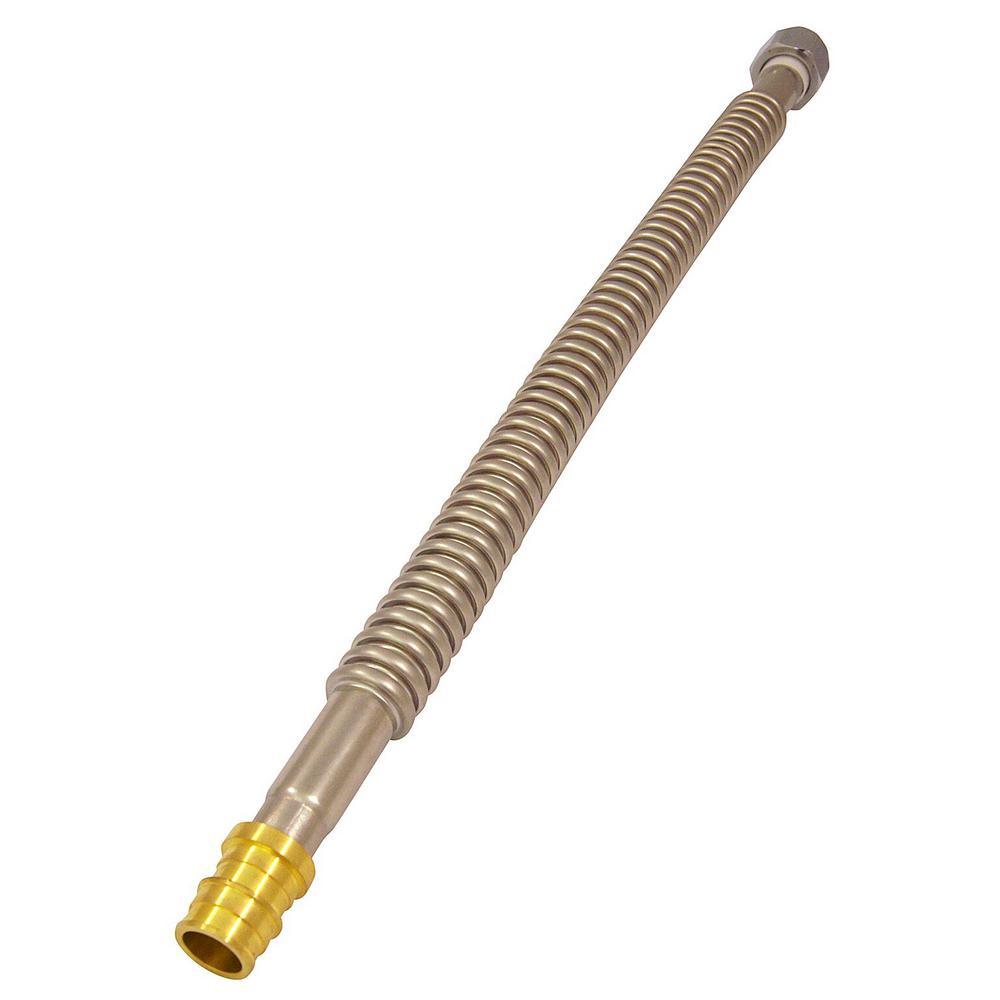

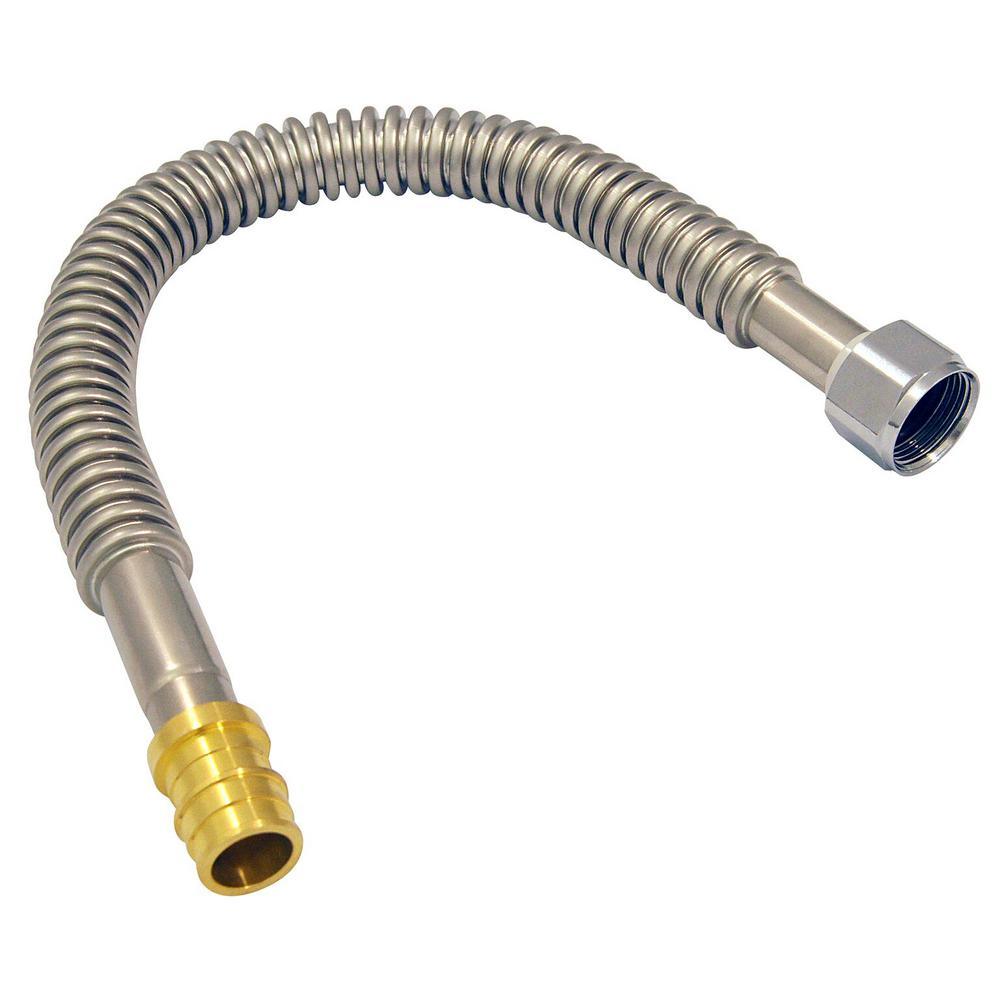

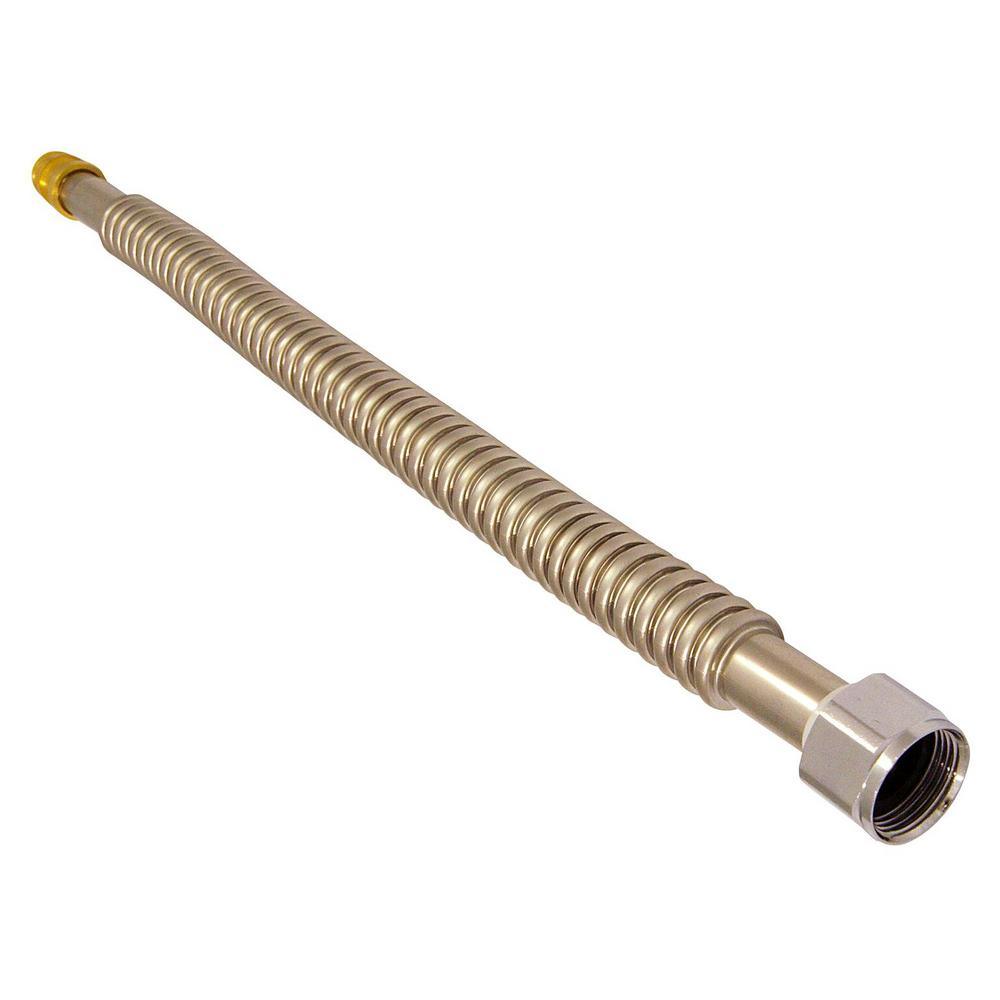

3/4 in. Brass PEX-A Expansion Barb x 3/4 in. FNPT x 18 in. Corrugated Stainless Steel Water Heater Connector

$10.60

/
Shipping calculated at checkout.

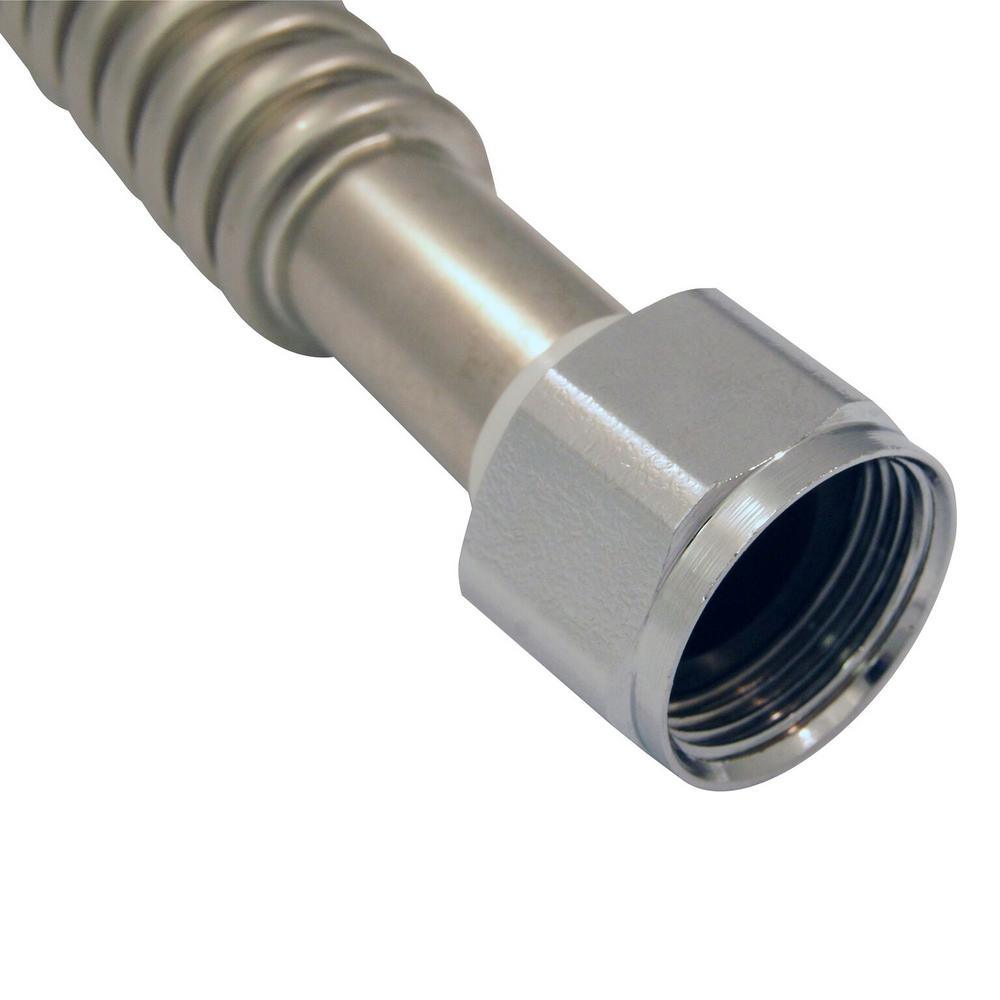

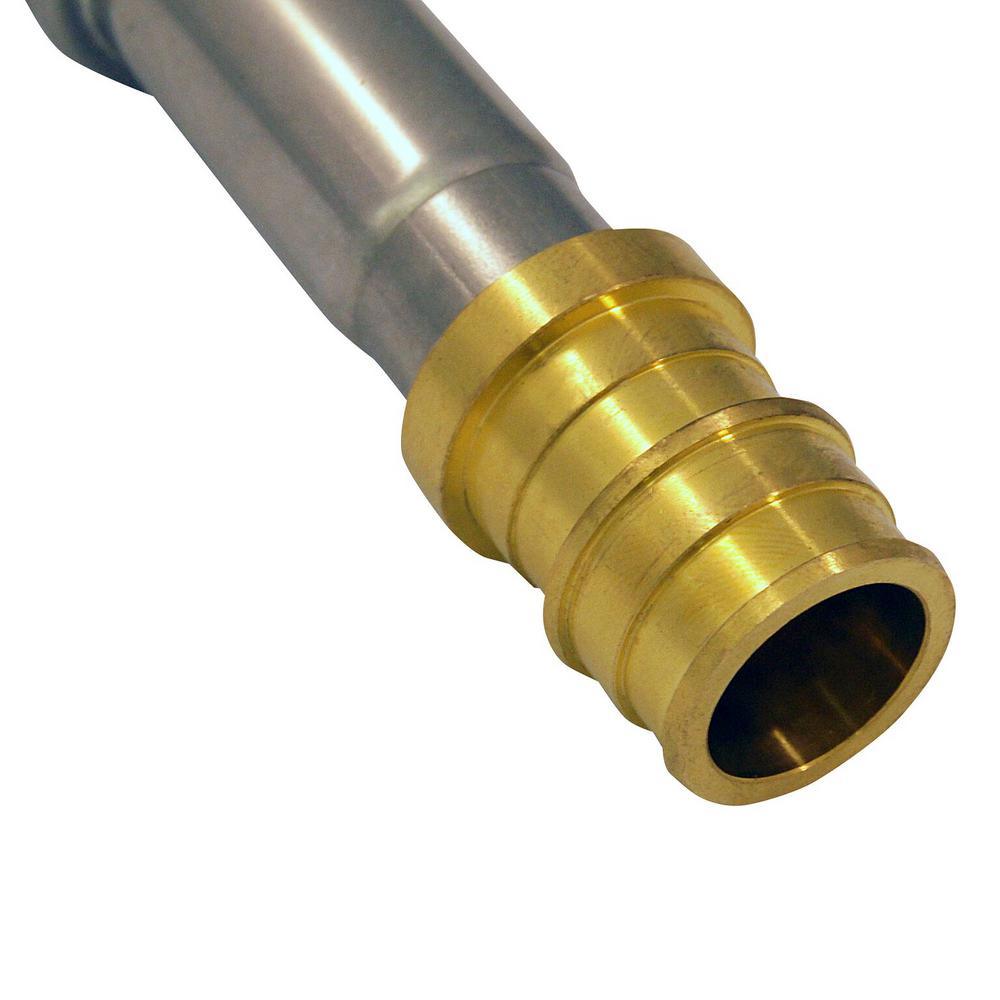

The Apollo ExpansionPEX 3/4 in. Brass PEX-A Barb x 3/4 in. FNPT x 18 in. Corrugated Stainless Steel Water Heater Connector was designed for the fast and simple installation of hot and cold water lines to water heaters. After applying pipe thread tape to the MNPT nipples on your water heater, thread the FNPT end of the water heater connector onto the tank and tighten with pliers. Then simply make the final connection to Apollo ExpansionPEX pipe or comparable cold expansion tubing using Apollo ExpansionPEX sleeves or comparable expansion-type sleeve or ring (all sold separately) and your water heater is connected.
  • California residents
  • No-kink corrugated stainless steel construction guarantees maximum flow rate even in tight radius bends
  • Corrosion resistant for greater longevity
  • Constructed of lead free dezincification resistant (DZR) brass and stainless steel for superior reliability and strength
  • Cold-expansion tool (sold separately) is required for installation
  • Listed by IAPMO and listed to NSF 61
  • Meets UPC, IPC, and cUPC standard requirements
  • Must secured in place using Apollo expansionPEX sleeves or other PEX-A expansion sleeves/rings
  • Maximum working pressure of 200 psi and maximum temperature of 250°F
  • Meets or exceeds ASTM F1960 standard
  • Go/no-go gauges are never required
  • To ensure secure connections every time, fittings cannot be dry fit
  • Larger internal diameter of Apollo ExpansionPEX fittings results in a 25% greater flow rate within the system
  • Rated to 200°F and 200 psi
  • Item is not compatible with PEXb pipe, crimp-style (ASTM 1807) or pinch clamp (ASTM F2098) piping systems


Features
Item Weight 0.42
Finish Family Silver Metallic
Includes No Additional Items Included
Product Weight (lb.) 0.42
Pack Size 1
Returnable 180-Day
For Use With Electric Tank,Electric Tankless,Gas Tank,Gas Tankless
Material Stainless Steel
Vent Part Type Flexible Connector Vent
Product Depth (in.) 1.14
Product Width (in.) 18.5
Product Height (in.) 1.14
Manufacturer Warranty 5 Years: Must be installed per published installation instructions.
