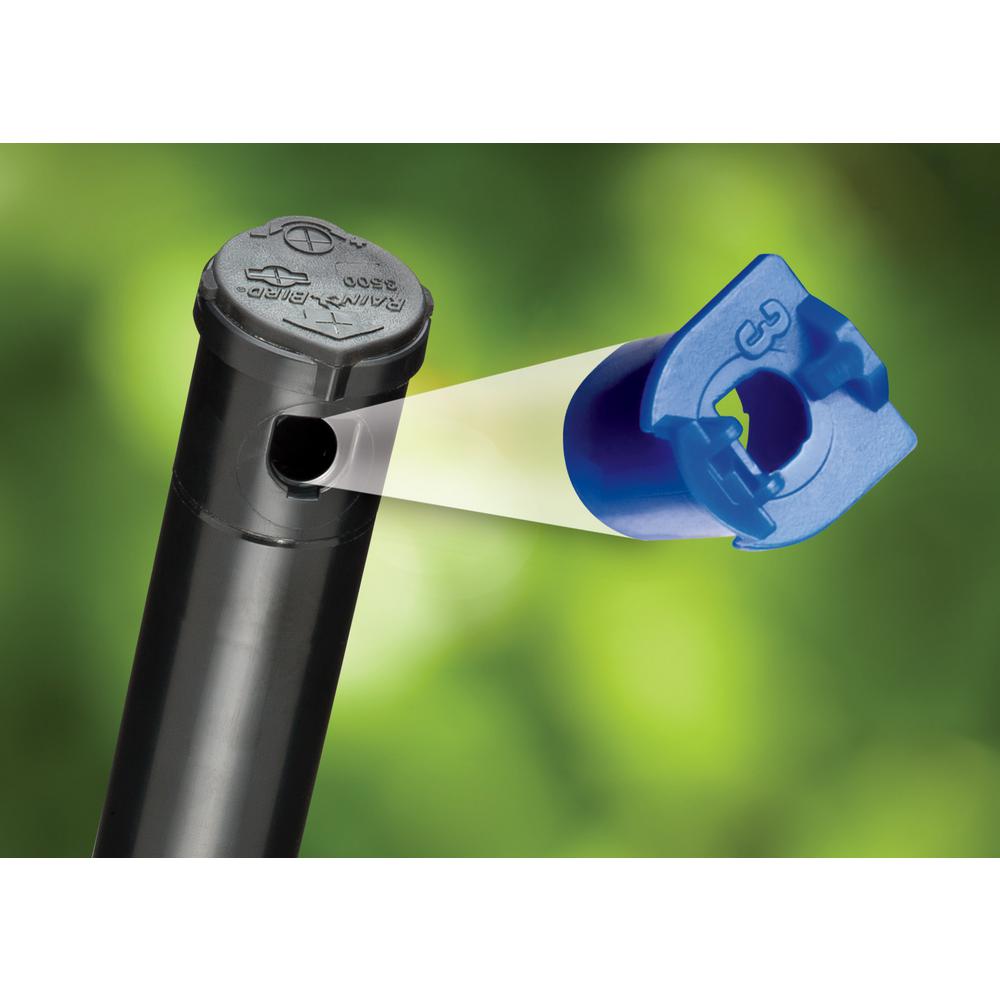

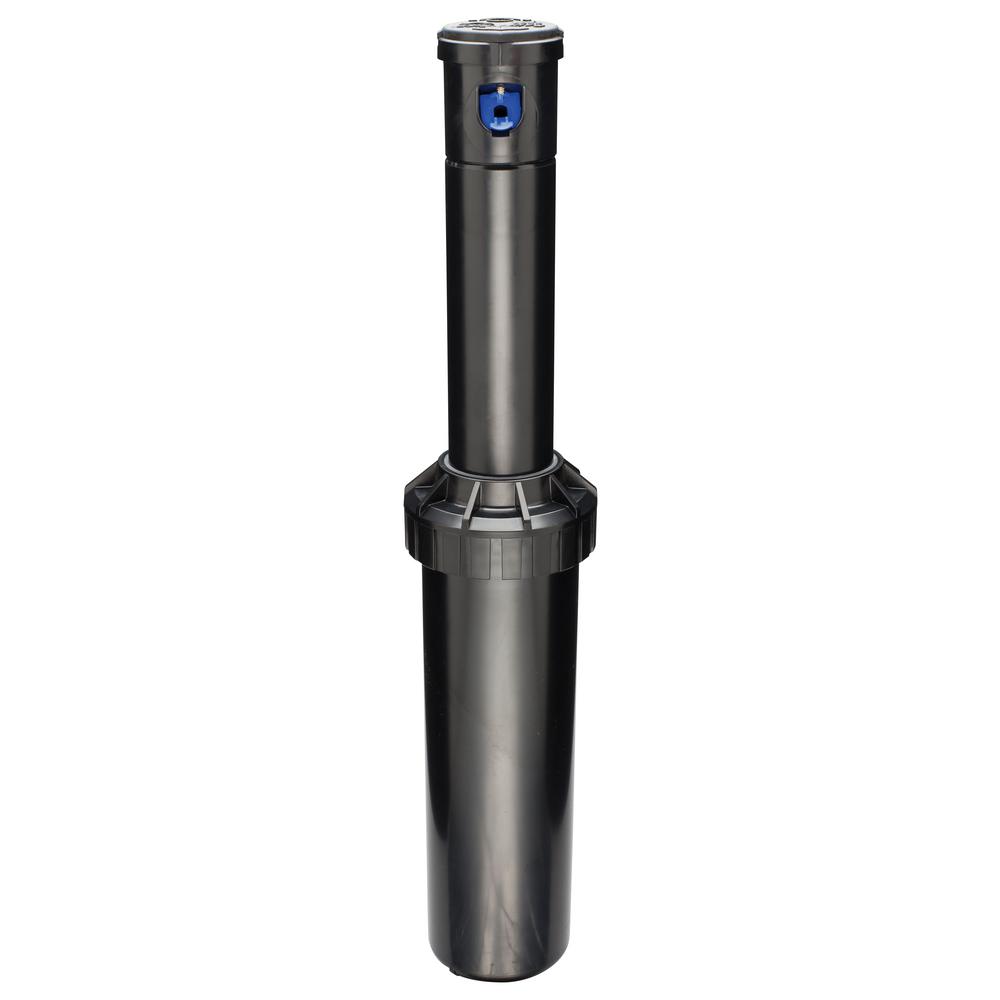

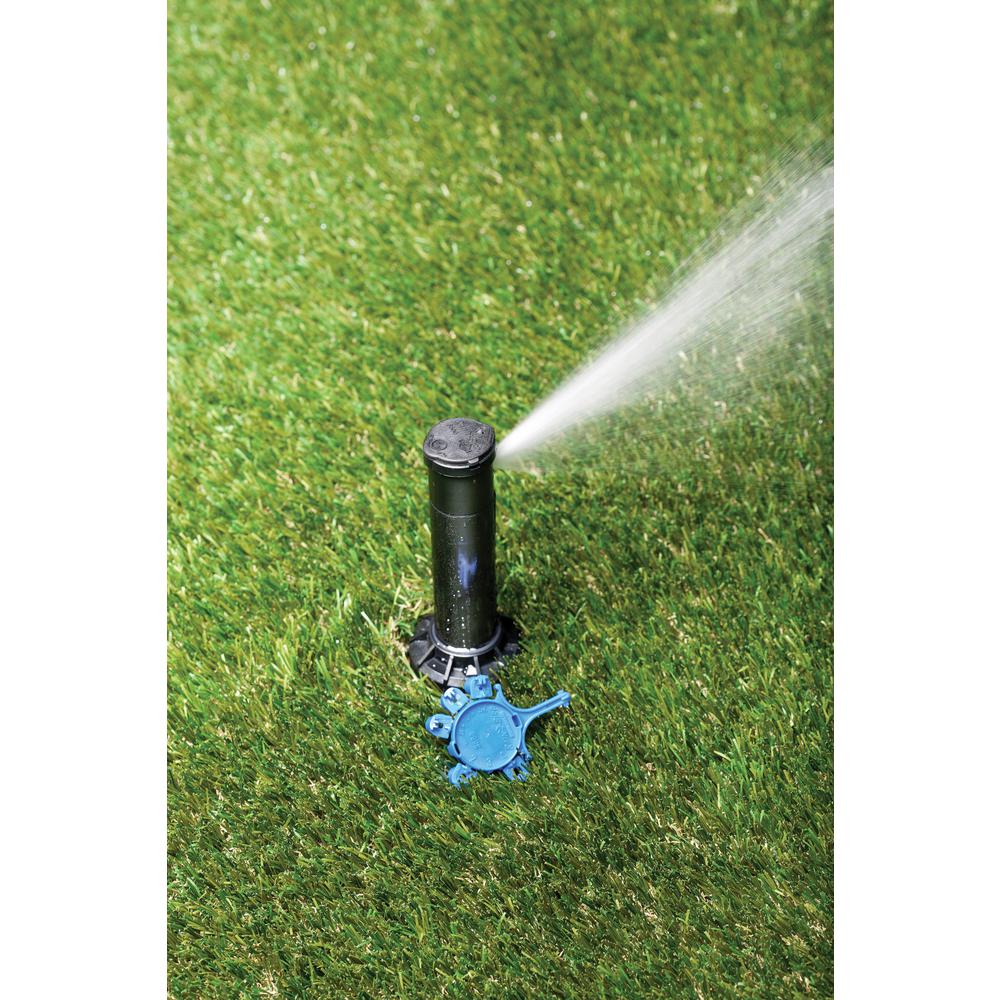

Rain Bird CP3504PC Pro Rotor with Rain Curtain Nozzle Set, 40 to 360 Pattern, 15 ft. to 35 ft. Spray Distance. With its intuitive adjustments and impressive coverage uniformity, the Rain Bird CP3504PC Pro Gear Drive Rotor will water all areas of your lawn evenly; reducing water use and providing greener, healthier grass. The many safeguards and trouble-free features built into this closed-case Pro Rotor sprinkler make it the perfect choice for any home landscape. Adjusts easily from 40 to 360 part-circle arc rotation, and reversing full-circle rotation to ensure you ft. watering only things that grow, not the house, sidewalk, or driveway. For installation convenience arc rotation is factory preset at 180. Radius adjustment screw allows up to 35% radius reduction without changing nozzles. This versatile rotor includes a Nozzle Tree with 6 superior performing Rain Curtain nozzles. A nozzle removal feature and easily removable filter screen makes maintenance a breeze. Rain Birds patented industry-leading Rain Curtain nozzle technology delivers a uniform, rotating curtain of large water droplets that fall exactly where you want and resist windblown overspray. The nozzles "micro ramps" also direct a portion of the spray close to the head eliminating dry brown spots common with other rotor brands. The nozzles superior coverage uniformity helps reduce watering time saving money on water bills.
- Easy to use Pro Grade gear-drive rotor offering value and convenience for residential applications
- Includes set of (6) rain curtain nozzles to customize precipitation rates and ensure maximum uniform coverage
- Superior rain curtain technology produces large water droplets that provide even distribution and resist wasteful windblown overspray
- Gentle close-in watering prevents dry spots around the rotor and seed washout; allows healthy turf growth with no matting or bending
- Water-lubricated gear-drive design for durable, reliable operation
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
- Radius adjustment screw allows up to 35% radius reduction without changing nozzles
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Easily removable filter screen
- Total satisfaction policy
Features
| Item Weight |
5.1 |
| Sprinkler Head Material |
ABS Plastic |
| Sprinkler Location |
Below ground |
| Irrigation System Component |
Sprinkler |
| Pressure Rating |
25-55PSI |
| Maximum Spray Distance (ft.) |
35 |
| Color Family |
Blacks |
| Sprinkler Type |
Portable,Rotary |
| Features |
Adjustable,Retraction Spring,Rotating |
| Package Quantity |
12 |
| Sprinkler Angle Maximum (Degrees) |
25 |
| Sprinkler Angle Minimum (Degrees) |
10 |
| Sprinkler Head Type |
Gear Drive |
| Maximum Rotation (Degrees) |
360 |
| Mounting |
In-Ground Install |
| Thread Type |
Pipe Thread |
| Pack Size |
12 |
| Inlet Type |
Female |
| Sprinkler Head Spray Pattern |
Adjustable |
| Material |
ABS Plastic |
| Riser |
Riser Not Required |
| Returnable |
180-Day |
| Nozzle Material |
ABS Plastic |
| Maximum Gallons Per Minute |
3 |
| Minimum Spray Distance (ft.) |
15 |
| Head Material |
Plastic |
| Maximum Coverage Area (sq ft.) |
3846 |
| Retracted Height (in.) |
6.6 |
| Product Height (in.) |
7.2 in |
| Product Depth (in.) |
9 in |
| Product Width (in.) |
7 in |
| Product Diameter (in.) |
1.16 in |
| Manufacturer Warranty |
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
