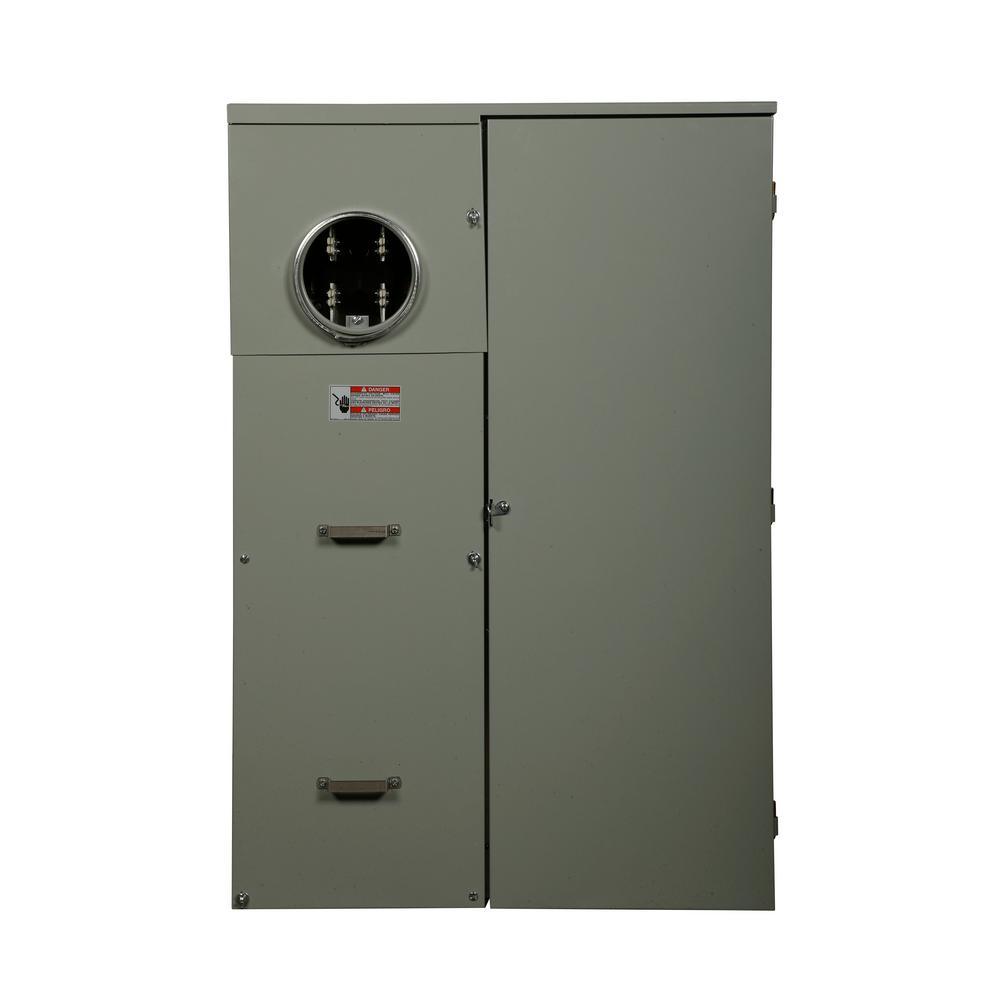

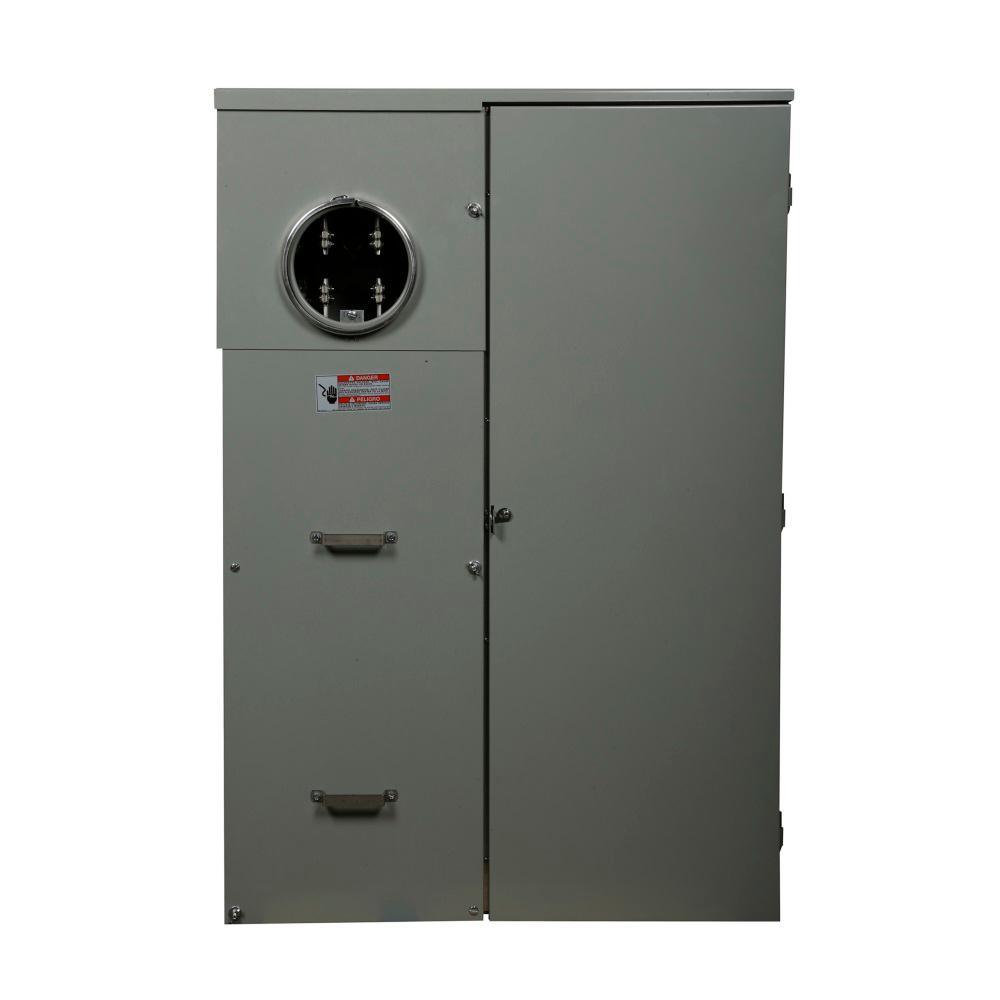

400 Amp 42-Space 42-Circuit Type CH Meter Socket and Main Breaker Load Center

$3,480.99

/
Shipping calculated at checkout.
The Eaton 400 Amp 42-Space 42-Circuit Type CH Meter Socket and Main Breaker Load Center is NEMA 3R rated for outdoor use with a rainproof design. This combination unit is intended for use as both a main breaker load center and as a meter socket and it is also rated for use as service entrance equipment. The center's load conductors can exit the top, bottom, side or back for application and installation flexibility and has a socket-to-distribution section that is connected via an insulated cable for safety.
  • For use as a combination main breaker load center and meter socket
  • Rated for service entrance equipment
  • NEMA 3R rated for outdoor use with a rainproof design
  • Copper buss


Features
Item Weight 114
Number of Circuits 42
Indoor/Outdoor Indoor,Outdoor
Mounting Type Bolt On
Maximum Amperage (amps) 400
Load Center Type Main Breaker
Electrical Product Type Load Center
Number of Spaces 42
Product Weight (lb.) 114 lb
Returnable 180-Day
Phase Type 1 Phase
Load Center Mounting Type Flush
Voltage (volts) 240/120
Load center width (in.) 32
Load center height (in.) 46
Load center depth (in.) 8
Manufacturer Warranty Limited lifetime
Certifications and Listings UL Listed
