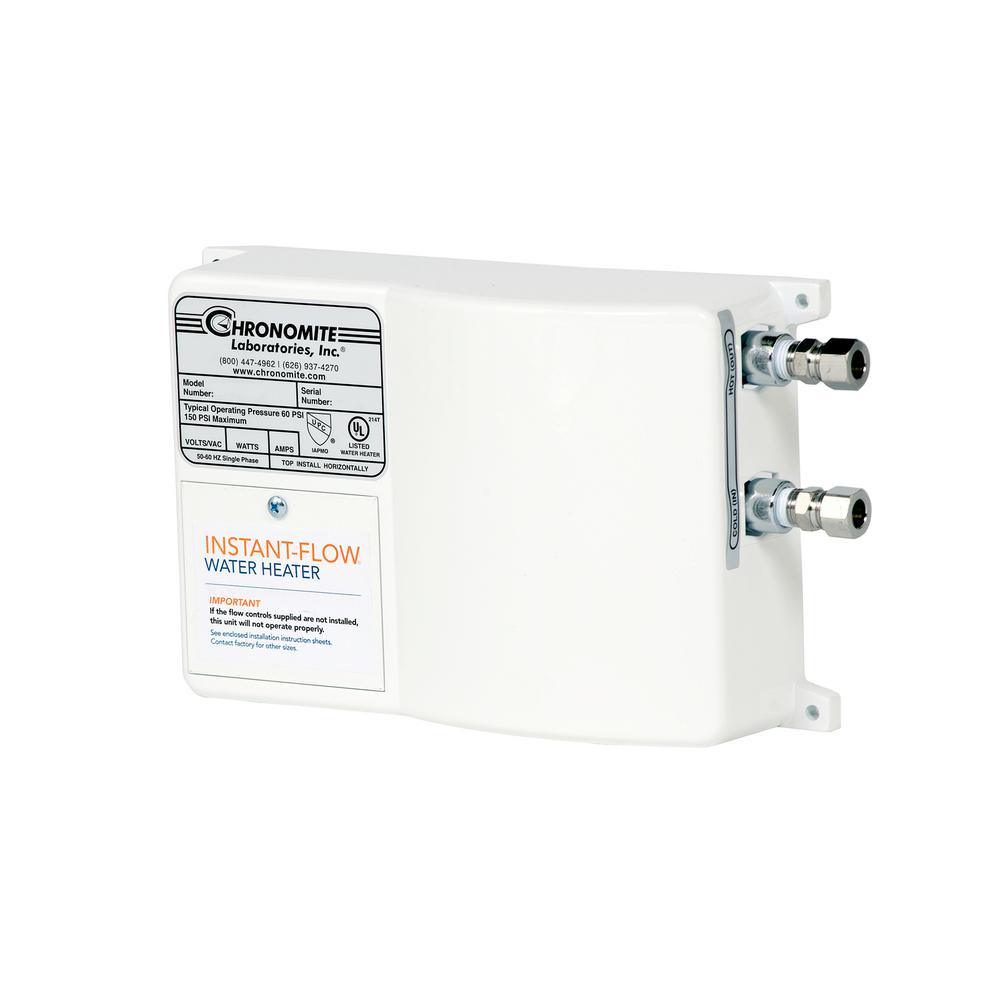

Instant-Flow Micro-Low Flow 0.35 GPM Point of Use Electric Tankless Water Heater, 30 Amp, 208-Volt, 6240-Watt, 104F
Regular price $245.85/
Shipping calculated at checkout.
The Instant-Flow Micro instant water heater features a factory preset temperature using digital microprocessor technology. This instant water heater responds to fluctuations in incoming water temperature, pressure, and flow rate regulating the water temp over 100 times per second. This eliminates the concern of scalding as well as the need for mixing valves. It offers the same compact size, easy installation, and unlimited hot water as heaters without microprocessors, while offering up to 50% more energy efficiency. Ideal for sensor/hands-free faucets with the 104°F factory preset setting. The Instant-Flow Micro is great for lavatories, sinks, and numerous other special applications.
Features
- California residents
- Ideal for sensor/hands-free faucets with the 104°F factory preset setting
- Compact design, easy installation, unlimited hot water
- Vandal resistant rugged cast aluminum housing
- Element assembly is fabricated from Celcon plastic, heating coils are chrome
- Meets ADA requirements and complies with standards for: water conserving product, IAPMO, UL, UPC
- Applications: commercial, industrial, residential, public lavatories, kitchen sink, bar sink
- Includes: compression fittings and faucet flow controls
- Certified for use in portable water applications
- Meets all CALGreen low flow requirements
- Microprocessor use is the most energy efficient means of heating water
- Unit must be hard wired
- Model number: M30L/208HTR 104F-I
- Single phase
Features
| Item Weight | 4.5 |
| Minimum Temperature (F) | 33 |
| Maximum Temperature (F) | 160 |
| Heat Exchanger Warranty | 1 Year |
| Wattage (watts) | 6240 |
| Application Type | Point of Use |
| Required Volt Connection | 208 volt |
| Efficiency Level | Super High |
| Pack Size | 1 |
| Flow Rate @ 35 F Rise (gallons/min) | 1.22 gal (US)/min |
| Finish Family | White |
| Returnable | 180-Day |
| Wattage (watts)2 | 6240 |
| Product Weight (lb.) | 4.5 |
| Commercial/Residential | Commercial,Residential |
| Amperage (amps) | 30 |
| Flow Rate @ 45 F Rise (gallons/min) | .95 |
| Flow Rate @ 55 F Rise (gallons/min) | .77 |
| Minimum Activation Rate (gpm) | 0.35 |
| Flow Rate @ 65 F Rise (gallons/min) | .66 |
| Fuel Type | Electric |
| Indoor/Outdoor | Indoor |
| Water Heater Features | No Additional Features |
| Uniform Energy Factor | .99 |
| Product Height (in.) | 6.25 |
| Product Width (in.) | 9.625 |
| Product Depth (in.) | 2.75 |
| Water Connection Size (in.) | 0.375 comp. x 0.25 MP |
| Part Warranty | No Warranty |
| Labor Warranty | No Warranty |
| Certifications and Listings | ADA Compliant,CSA Certified,ETL Classified,IAPMO Certified,UL Listed |
