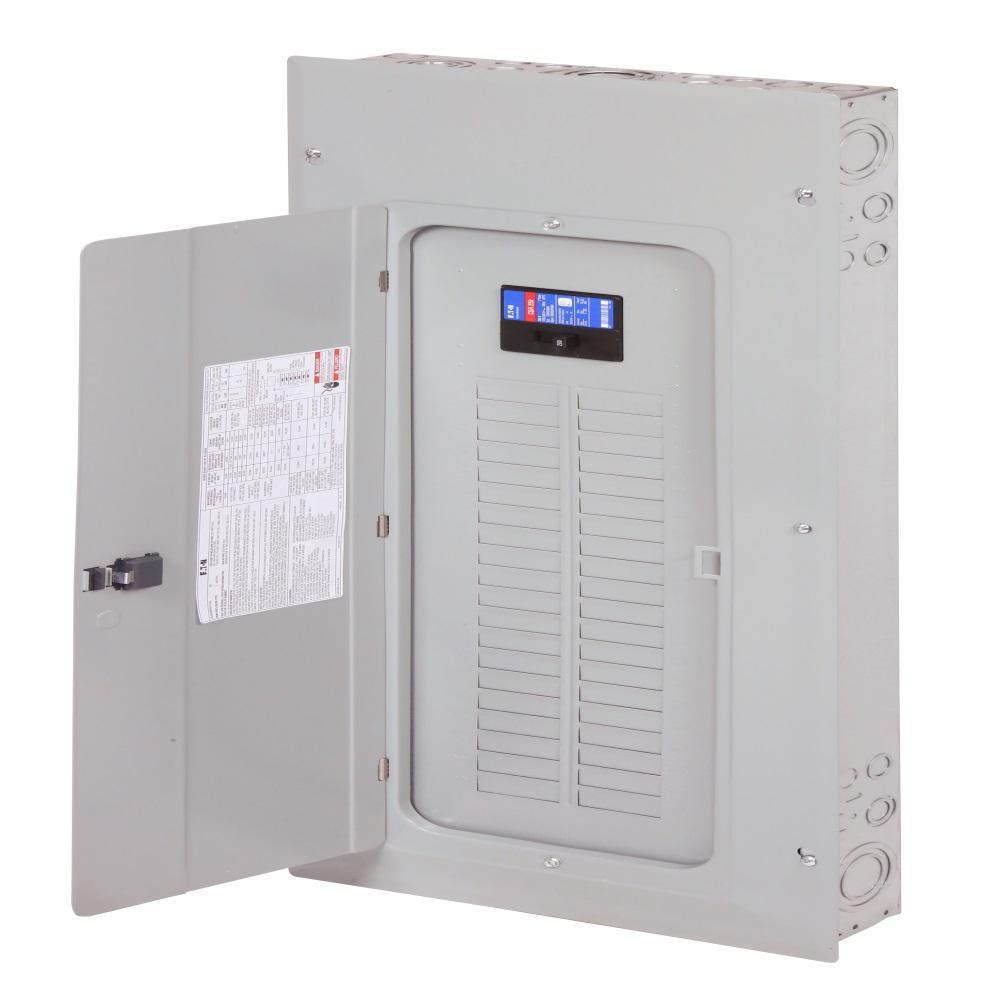

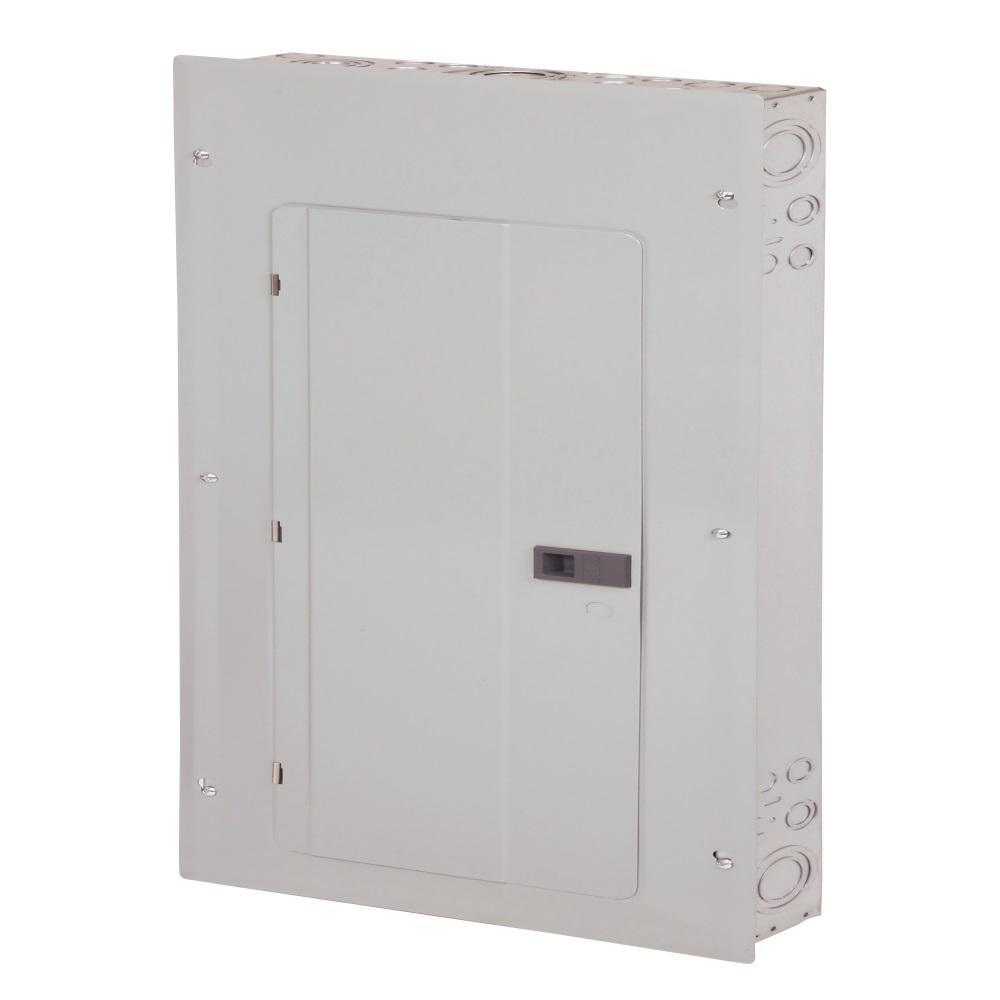

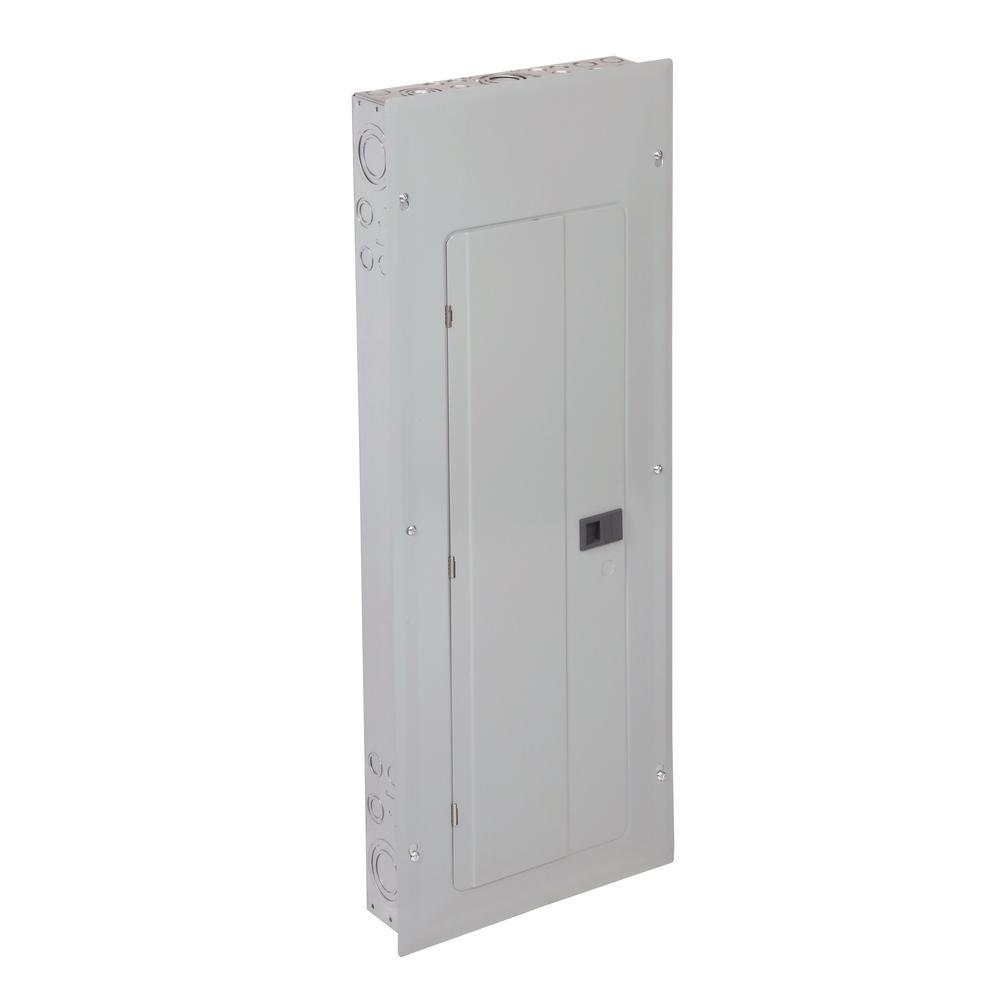

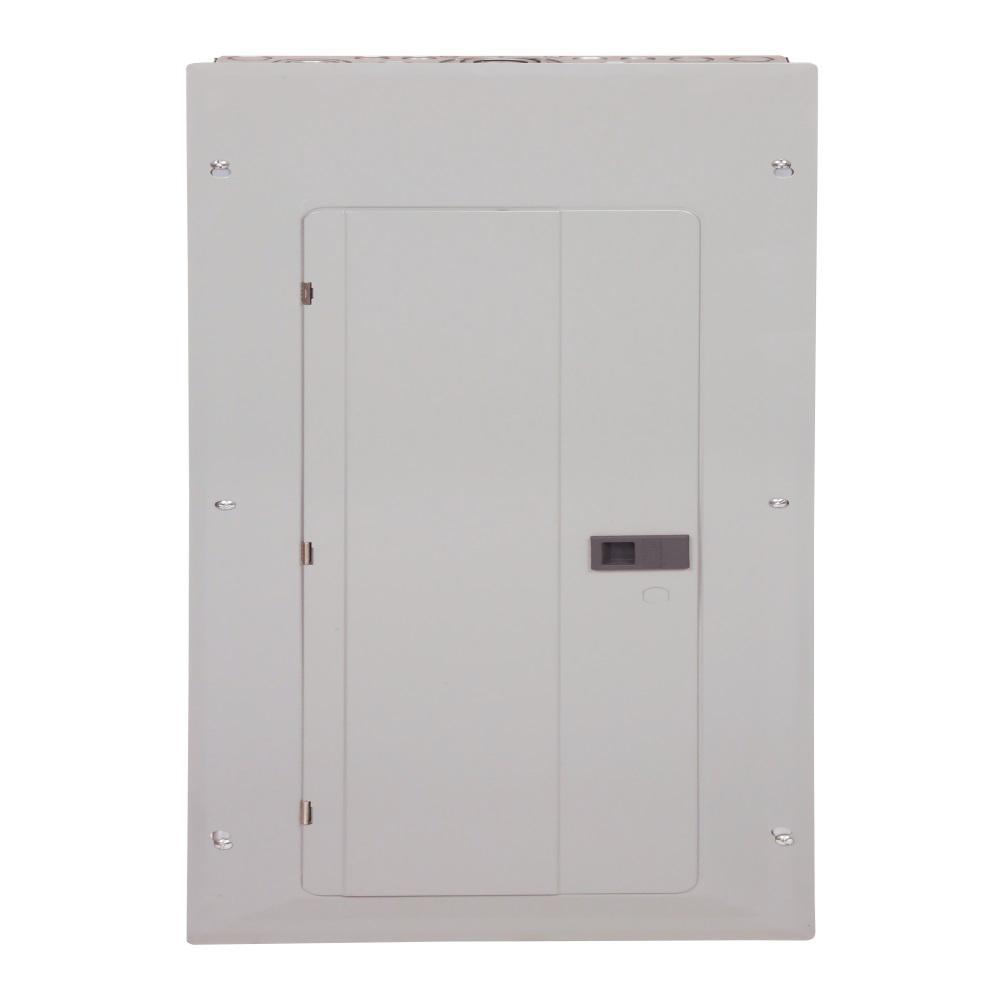

BR 200 Amp 80-Circuit Indoor Main Breaker Plug-On Neutral Load Center
Regular price $140.00Shipping calculated at checkout.
Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.
Features
- Amperage rating: 200 Amp
- Cover: cover included
- Enclosure: NEMA 1
- Interrupt rating: 25 kAIC
- Bus material: aluminum
- Used with: type BR 1 in. breakers
- BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings

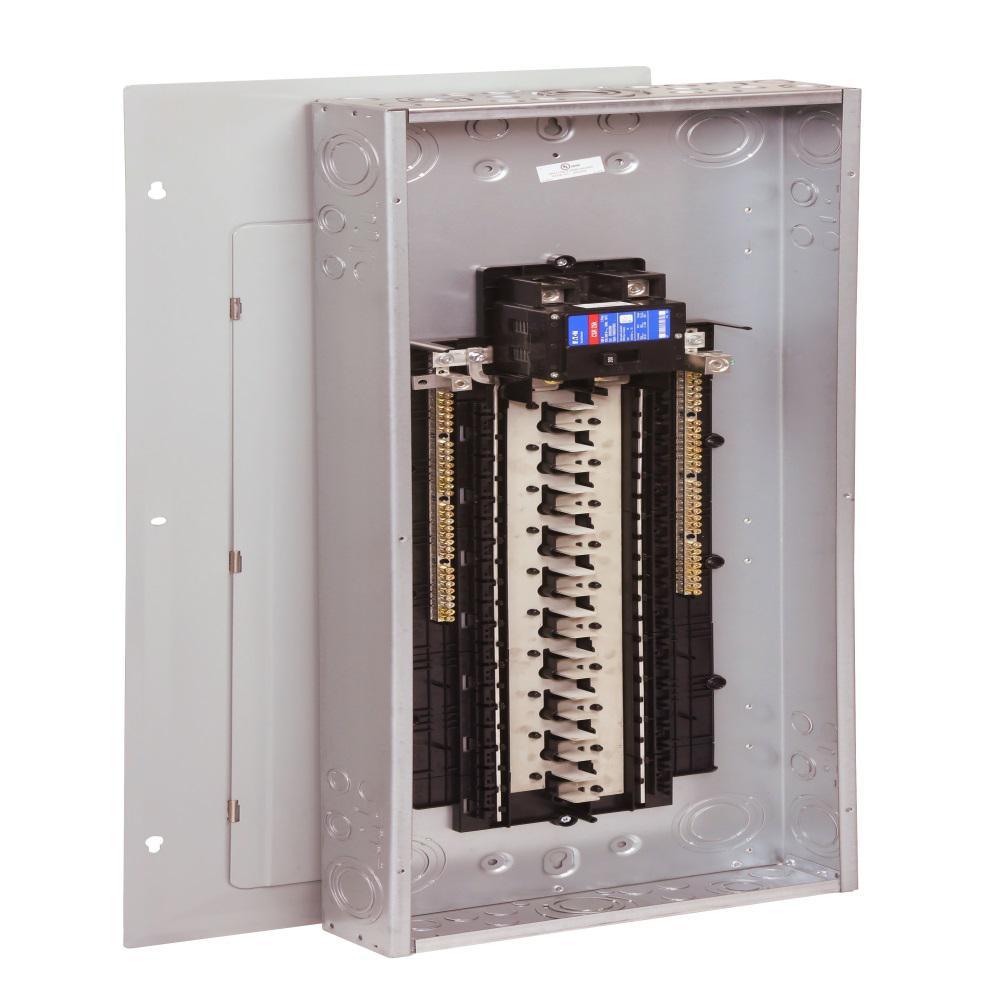

- Dedicated neutral bus for breaker connection
- In-board neutral bar increases gutter space to allow for professional installation of conductors

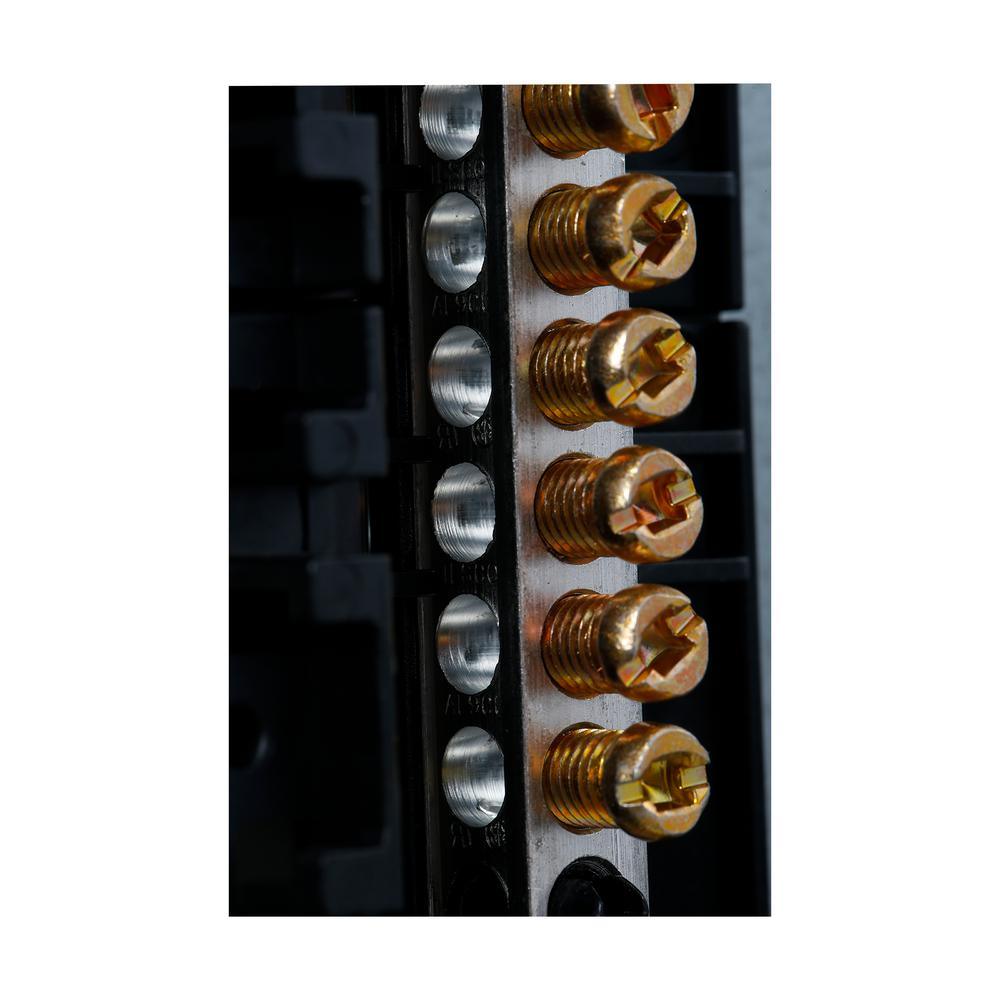

- Backed out neutral screws allows for quick connection of neutral and ground conductors

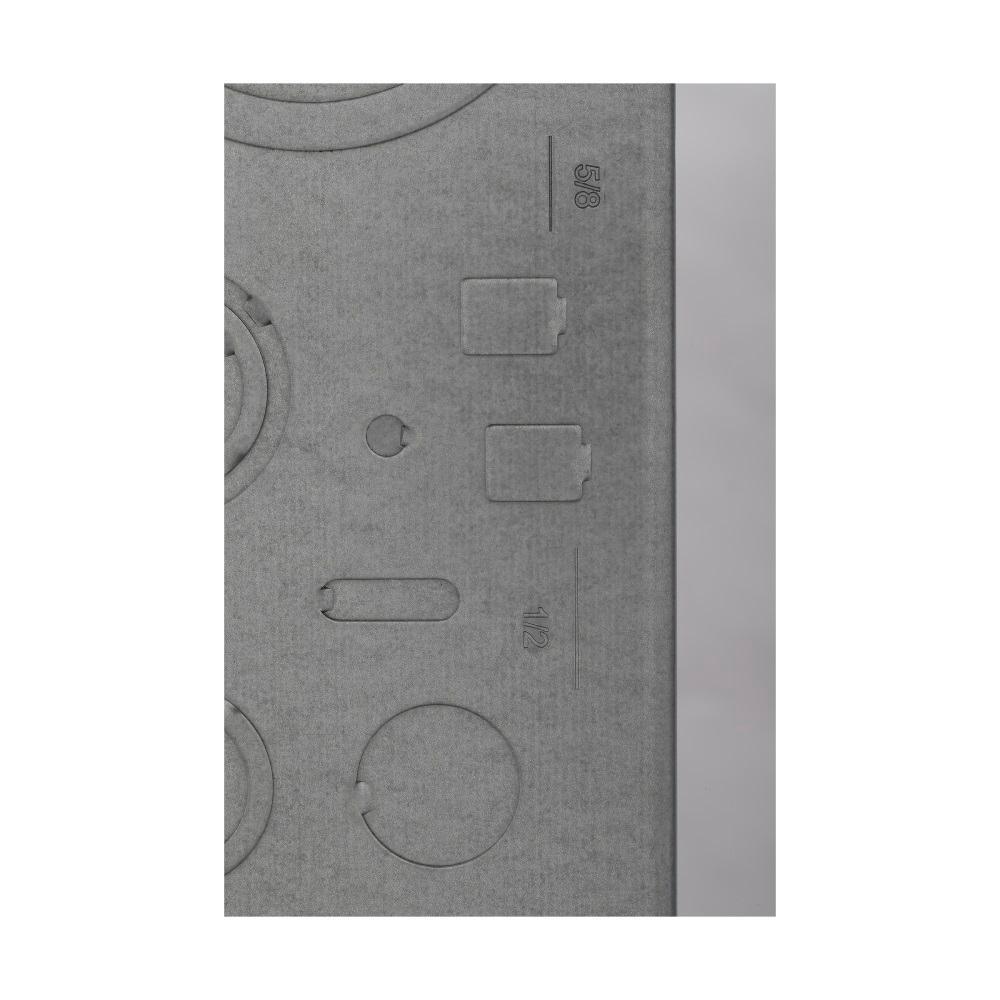

- Optimized knockout locations for additional access and easier to remove
- Self-leveling tabs allow for quick drywall offset and helps simplify installation
- Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications

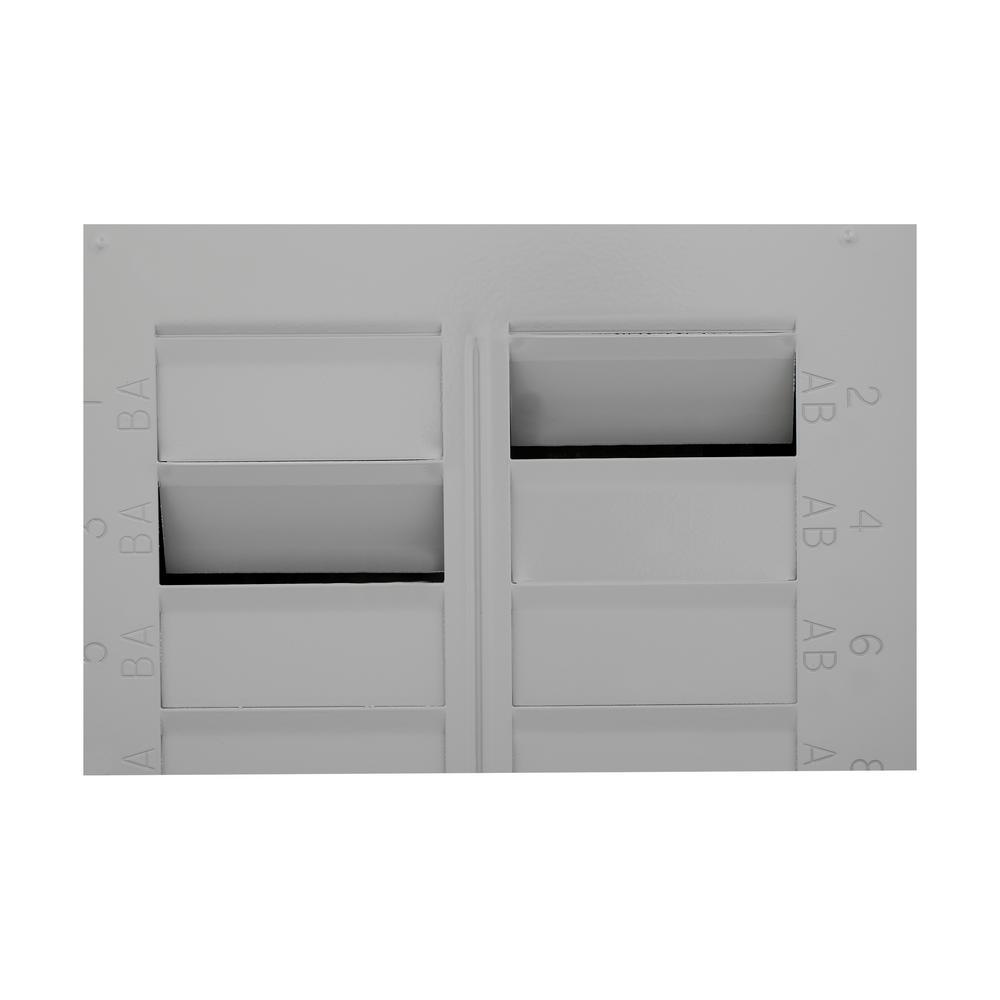

- Rigid cover spine provides strength when twist outs are removed allowing for easier removal
- Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
Features
| Item Weight | 37.5 |
| Mounting Type | Bolt On |
| Load Center Type | Main Breaker |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 40 |
| Returnable | 180-Day |
| Product Weight (lb.) | 37.5 |
| Voltage (volts) | 120/240 |
| Electrical Product Type | Load Center |
| Indoor/Outdoor2 | Indoor |
| Number of Phases | 1 |
| Number of Circuits | 80 |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |
| Load center depth (in.) | 40.75 |
| Load center width (in.) | 16 |
| Load center height (in.) | 4.5 |
| Manufacturer Warranty | 10 Year Per Warranty Statement |
| Certifications and Listings | UL Listed |
