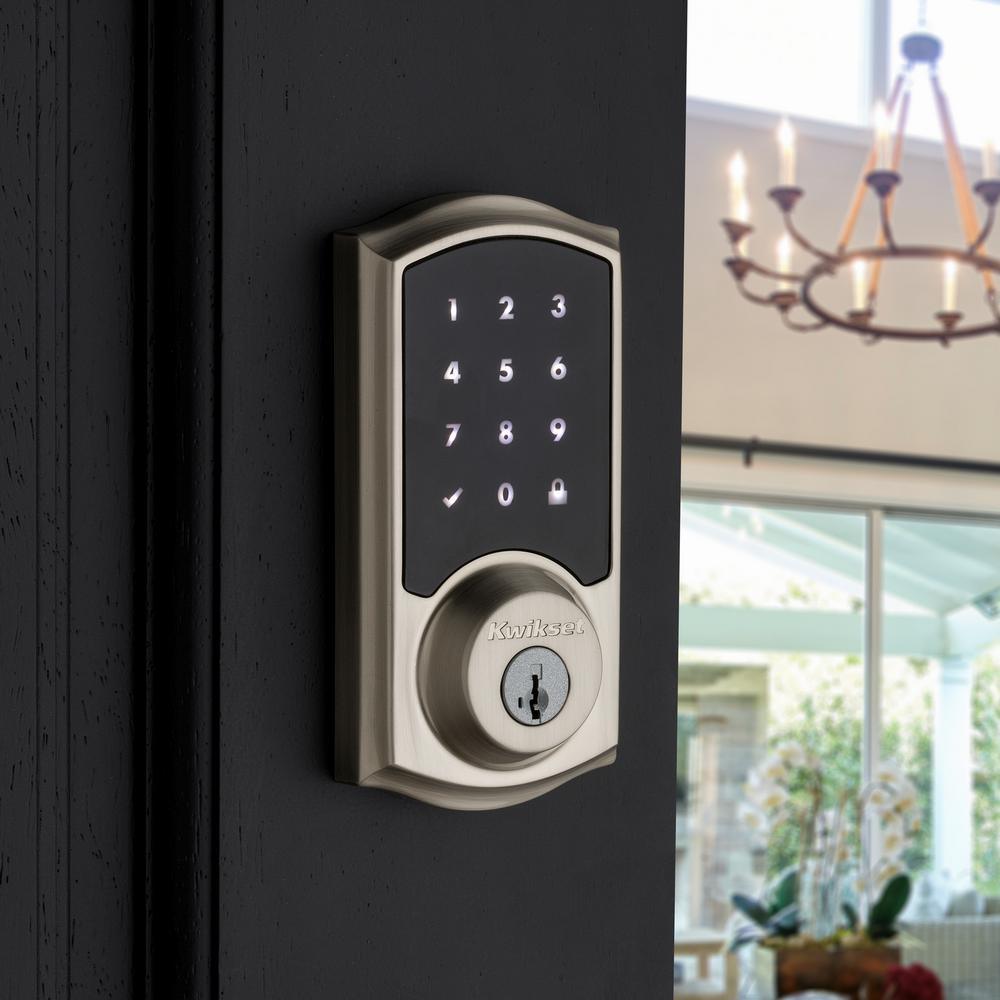

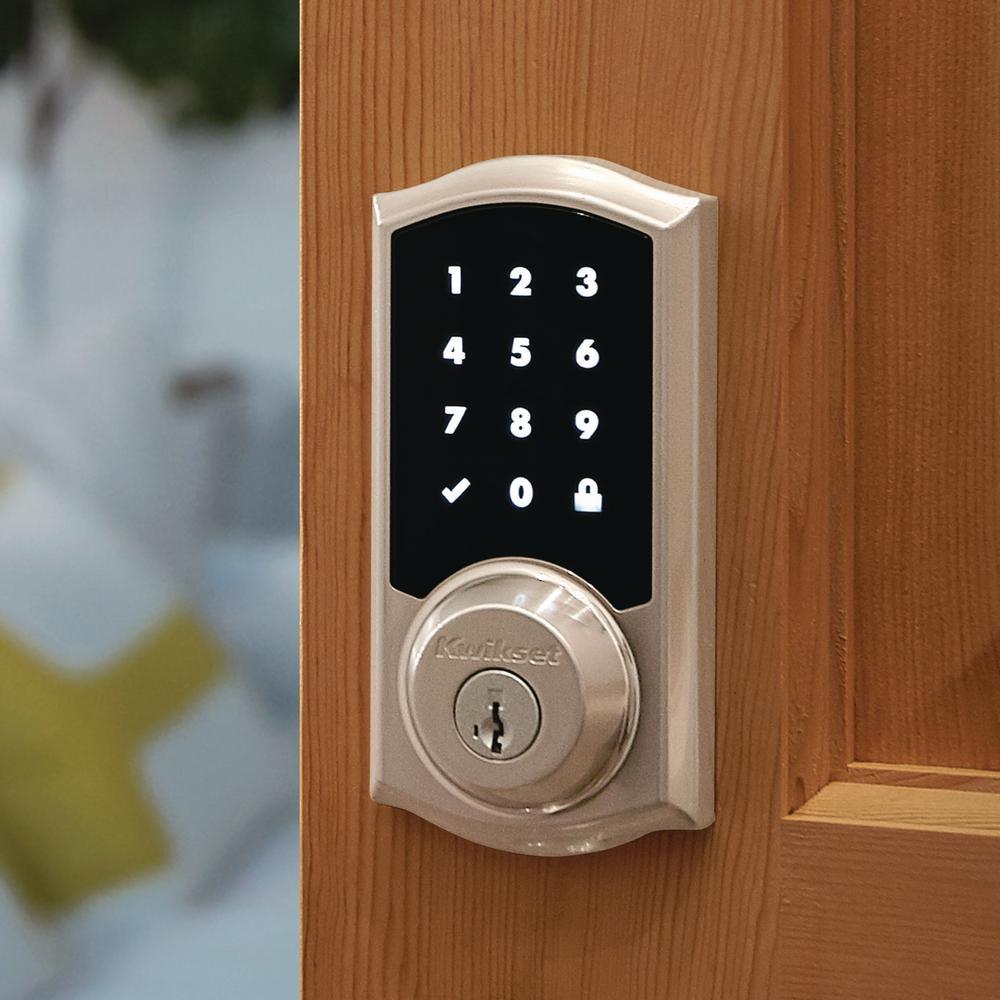

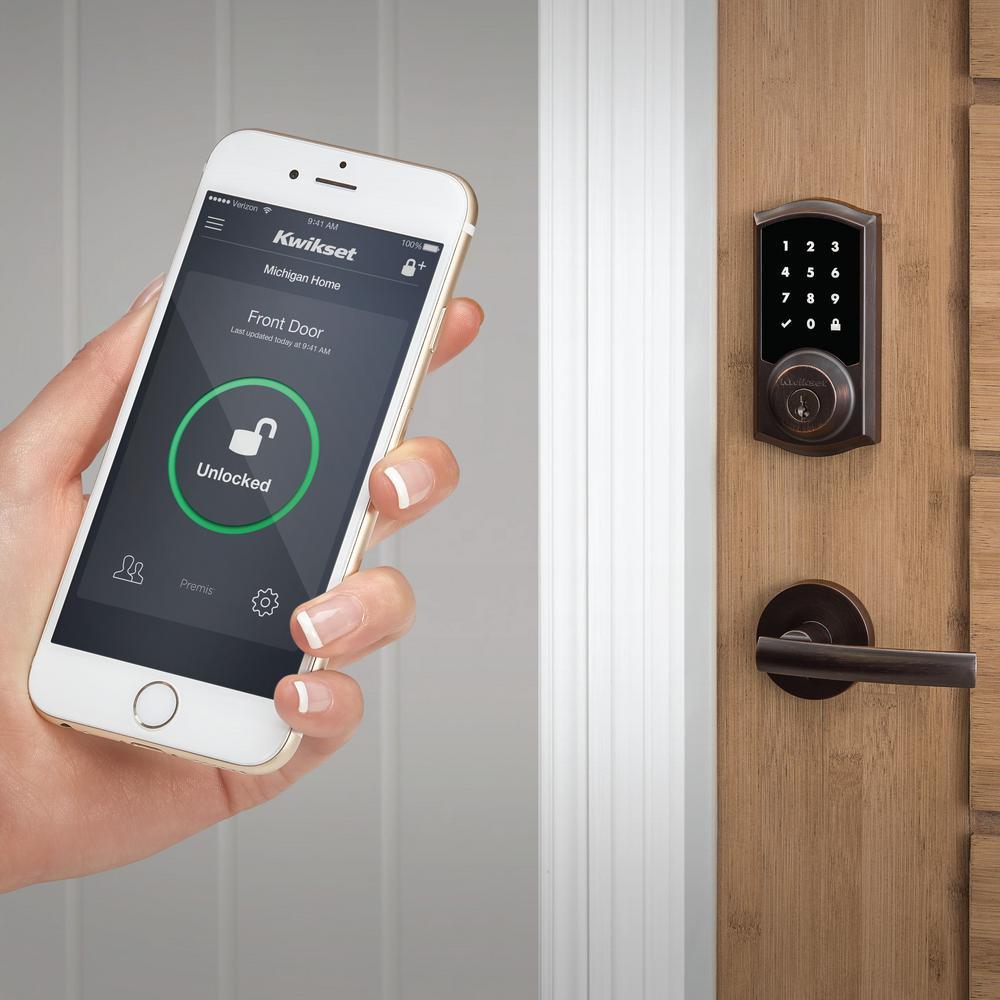

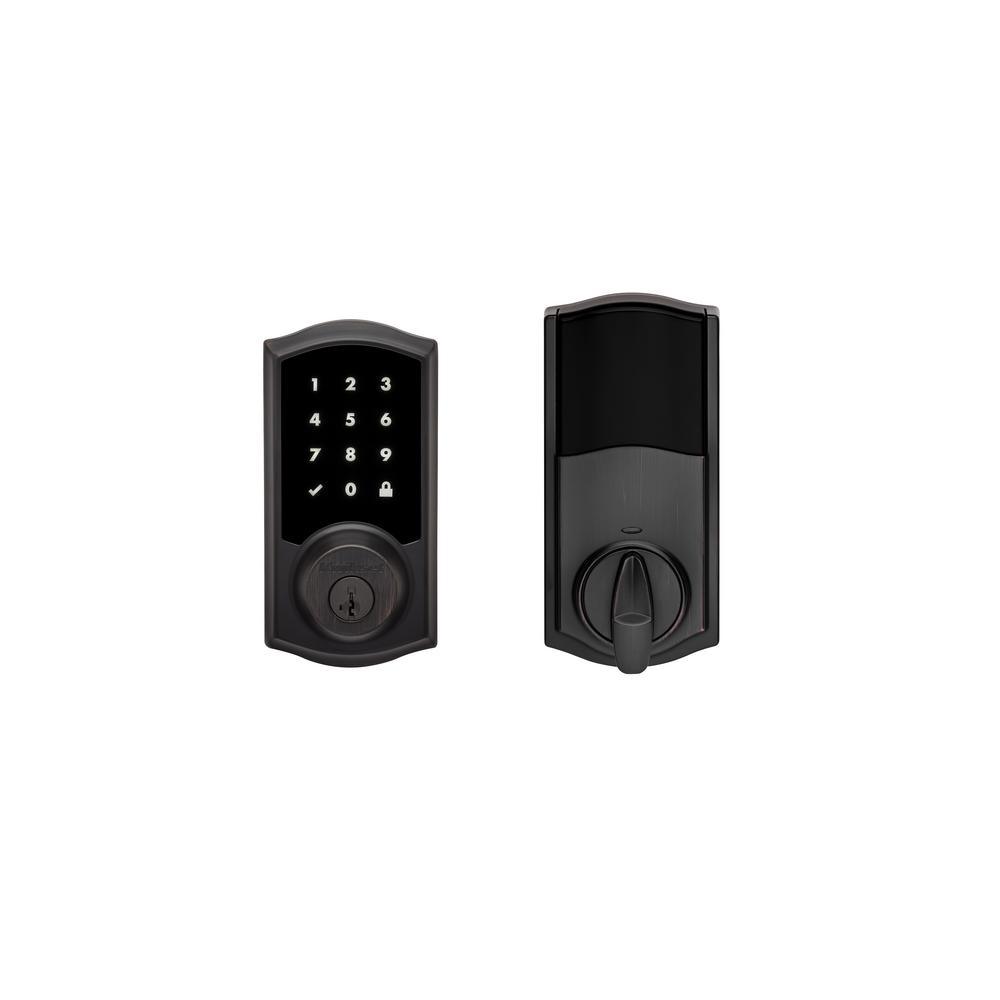

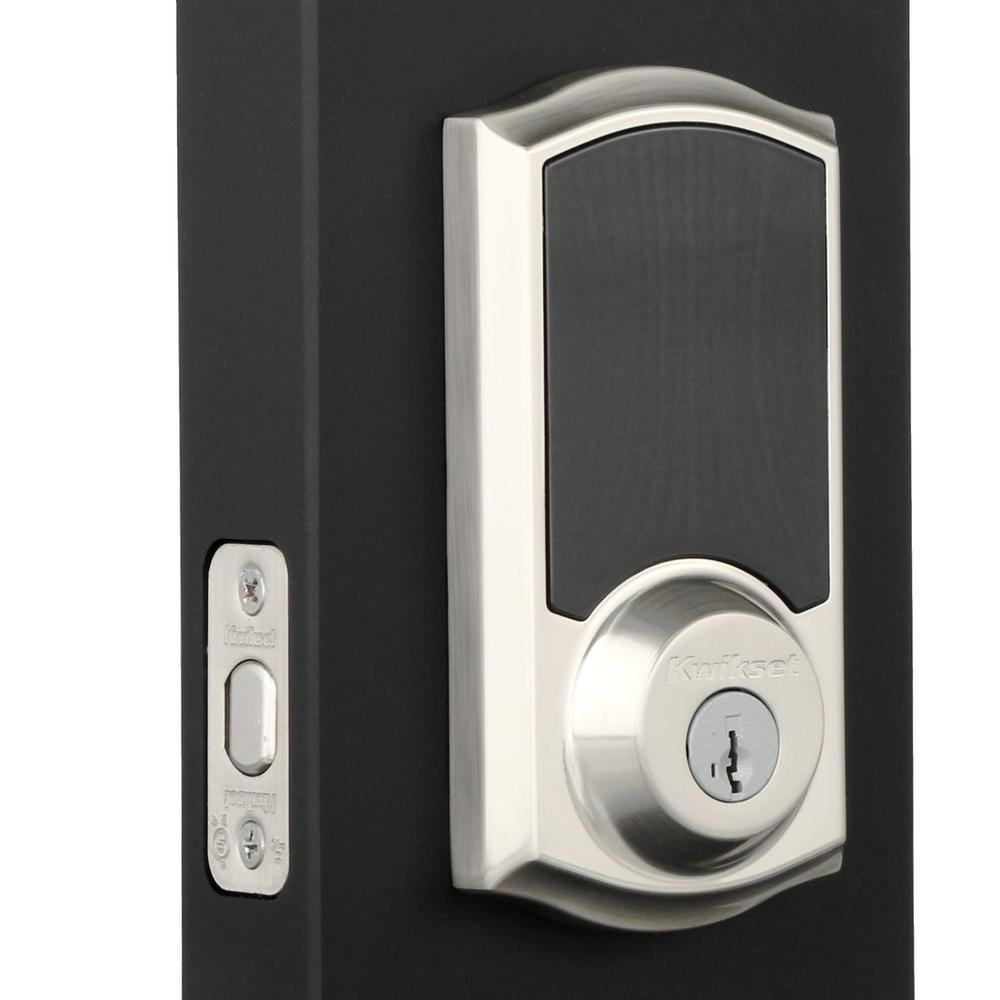

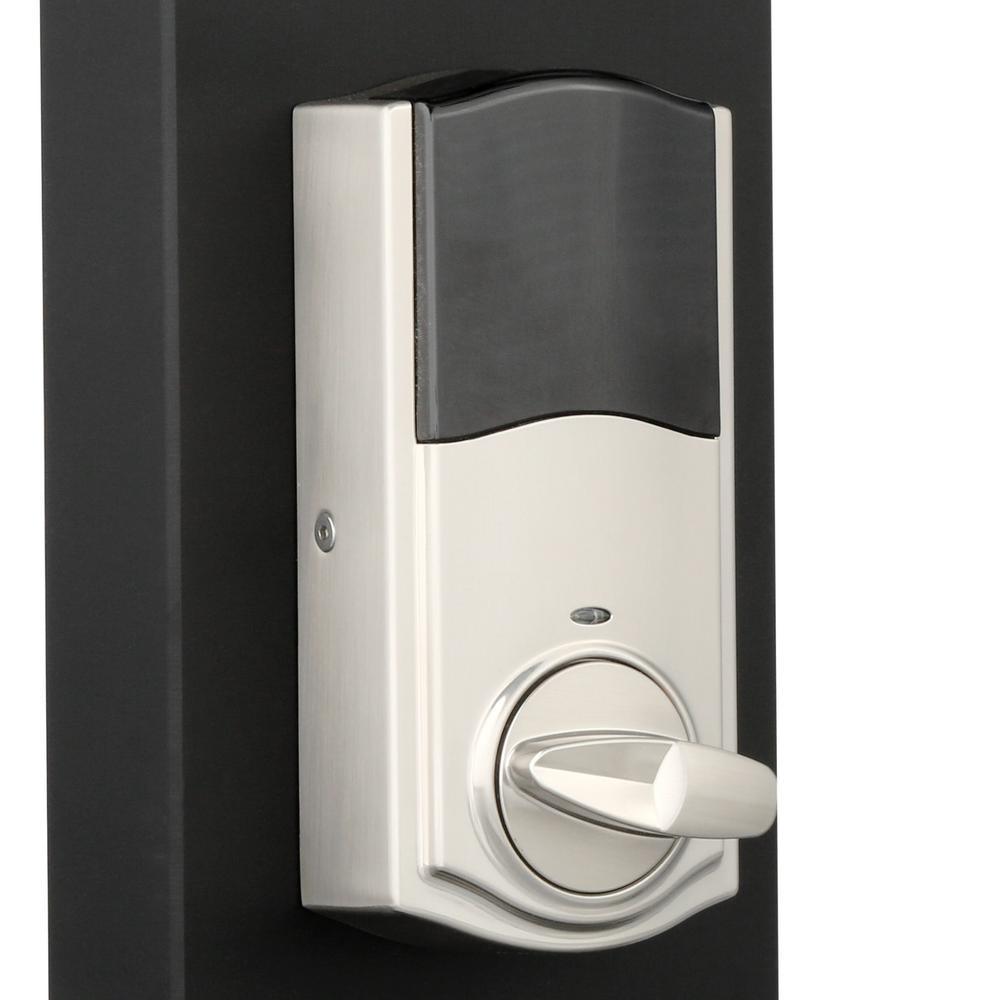

The SmartCode touchscreen smart lock with Home Connect technology enables the lock to wirelessly communicate with other devices in home. The lock allows the user (through a web enabled device) to remotely check the door lock status, lock or unlock the door and receive notifications. SmartCode is a 1-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. It features patented SecureScreen technology to prevent code detection from fingerprints on the touchscreen. SmartCode is easy to install, program and use and operates on 4 AA batteries. It also features SmartKey Security as the back-up keyway. This single cylinder deadbolt can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel.
Item Weight |
3.7 |

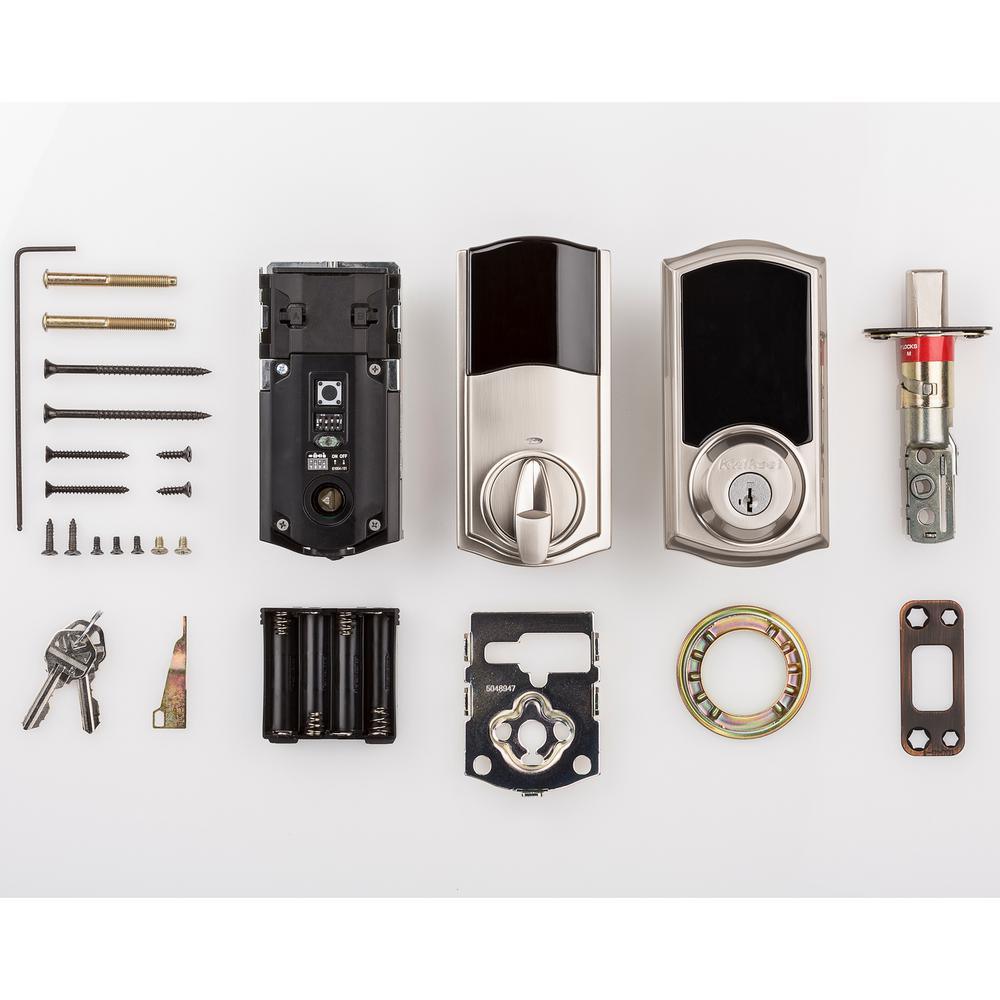

Included |
Drilling Template,Hardware,Installation Instructions |
Lock Type |
Single Cylinder Deadbolt |
Smart Home Protocol |
Z-Wave |
Battery Size |
AA Battery |
Holding force (lb.) |
0 |
Works With |
Alexa, Nexia, Samsung SmartThings, WeMo |
Door Handing |
Universal |
Door Locks & Knobs Product Type |
Deadbolts |
Door Lock Style |
Classic |
Product Weight (lb.) |
3.7 |
Commercial/Residential |
Residential |

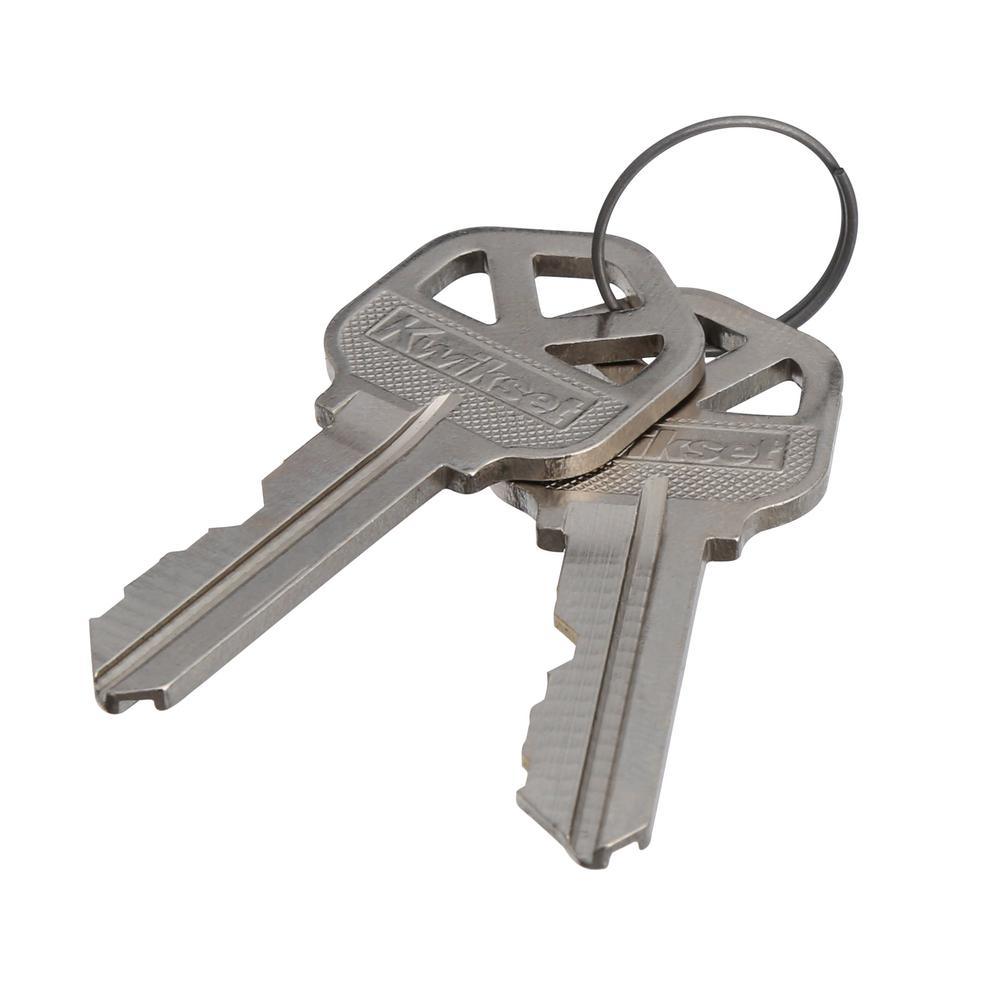

Total Number of Keys Included |
2 |
Requires Hub? |
Hub Required for Remote Access |
Keyway |
KW1 |
Finish |
Satin Nickel |
Deadbolt Type |
Single Cylinder Deadbolt |
Hardware Included |
Lock with Passage Lever |
Tools/Hardware Collections |
Kwikset SmartCode |
Hardware Finish Family |
Nickel |
Material |
Metal |
Power Source |
Self Powered |
Features |
Adjustable Backset,Automatic Relocking,Easy Installation,Fail-Safe,Kwikset SmartKey,Rekeyable |
Voice Control Hub Required |
Alexa via Proprietary Bridge/Gateway |
Returnable |
180-Day |
Power Options |
Battery |
Wired or Wireless |
Wireless |
Lock Type2 |
Keyed,Touchscreen,Z-Wave |
Smart Home |
Smart Home Enabled |
Electronic/Mechanical |
Electronic |
Interior/Exterior |
Interior/Exterior |
Remote Access |
Remote Access |
Number of Batteries Required |
4 |
Hub Required |
Nexia Gateway,Samsung SmartThings Hub,Staples Connect D-Link Hub,VeraEdge Hub,VeraSecure Hub,VersPlus Hub,Wink Hub |
Security/ANSI Grade |
ANSI Grade 2 (Better) |
Strike plate height (in.) |
2.75 |
Faceplate depth (in.) |
1.19 |
Faceplate width (in.) |
2.81 |
Faceplate height (in.) |
5.63 |
Projection (in.) |
1.19 |
Strike plate width (in.) |
1.125 |
Required door thickness (in.) |
1 3/8 to 2 |
Certifications and Listings |
ANSI Certified,UL Listed |
Manufacturer Warranty |
Lifetime Mechanical-Finish, 1 Year Electronics |
