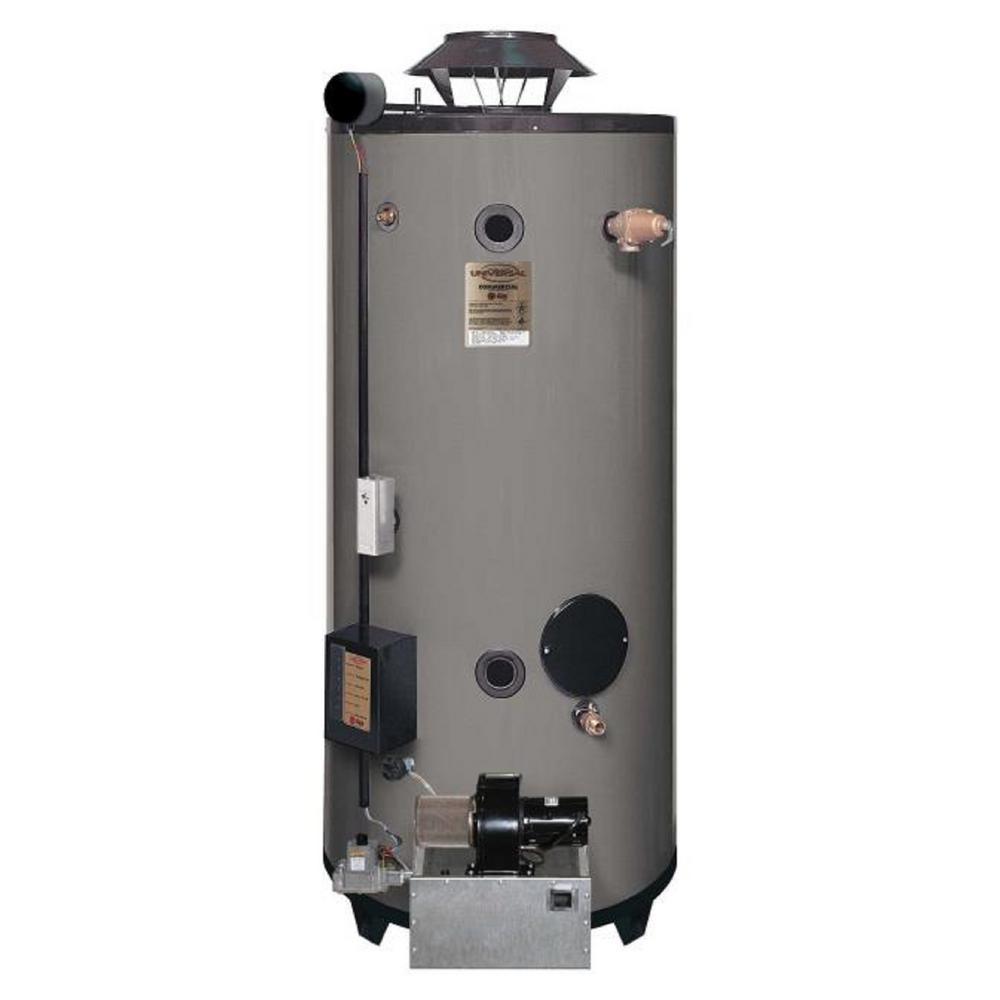

Universal Heavy Duty 100 gal. 270K BTU Ultra-Low NOx (ULN) Commercial Natural Gas Tank Water Heater
Regular price $4,669.99/
Shipping calculated at checkout.
Rheem Commercial Universal Ultra-Low NOx (ULN) Natural Gas Water Heaters are designed to fit into tight retrofit applications and have the features and capacity to meet heavy duty demands. The tighter the commercial retrofit, the more you will appreciate how the Universal's compact size and multiple water connections simplify installations. Top, Front and Rear water inlets/outlets offer installation flexibility giving this water heater the name: Universal. Please Note: This model requires a 120-Volt power source.
Features
- California residents
- California and Utah residents (Utah effective 7/1/18): this water heater model meets or exceeds Ultra-Low NOx (ULN) emissions requirements for all air quality management districts
- Texas residents: this water heater model meets or exceeds Low NOx (LN) emissions requirements for all air quality management districts
- Space saver design: the short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
- System sentinel LED diagnostic system: our exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
- Strong tank design: universals proprietary steel formulation, patented multi-flue design, combined with 2-coats of porcelain enamel, results in a superior heat exchanger design
- Stainless steel burners: precision burners, raised port design are formed from high chromium stainless steel; each burner assembly slides out like a drawer for quick inspection and maintenance
- Low profile automatic flue damper: low profile damper minimizes overall product height and heavy-duty vent hood supports are designed to withstand the rigors of installation
- Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing and hand-hole cleanout for easy removal of lime/sediment deposits
- Direct spark to pilot ignition system: saves energy by igniting only when there is a call for heat
- Built-in corrosion resistance: patented anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life
- Fully insulated: energy saving sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
- Insulation: sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
- Gas control system: thermostat adjusts from 100°F to 180°F, 24-Volt combination gas valve includes main gas pressure regulation, on-off manual valve, 120-Volt/24-Volt transformer and high limit temperature cut-out
- Call 1-855-400-2552 before noon for same-day installation service in most areas, or
Features
| Item Weight | 805 |
| Uniform Energy Factor | 0 |
| Tank Lining Material | Glass |
| Recovery Rate at 90F Rise (gallons/hour) | 291 |
| Commercial/Residential | Commercial |
| Application Type | Commercial |
| Returnable | 180-Day |
| Water Heater Features | Glass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve |
| Minimum Temperature (F) | 100 °F |
| Tank Warranty | 3 Year |
| BTU Rating | 270000 |
| Wattage (watts) | 0 |
| Maximum Temperature (F) | 180 |
| Water Heater Profile | Tall |
| Finish Family | Gray |
| Indoor/Outdoor | Indoor |
| Fuel Type | Gas |
| Pack Size | 1 |
| Vent Type | Atmospheric |
| Product Weight (lb.) | 805 lb |
| Nominal Tank Capacity (gallons) | 100 |
| Household Size | 5+ |
| Product Width (in.) | 30.25 in |
| Product Depth (in.) | 30.25 in |
| Product Height (in.) | 73.875 in |
| Water Connection Size (in.) | 2 |
| Tank Valve Size (in.) | 0.75 |
| Part Warranty | 1 Year |
| Labor Warranty | No Warranty |
| Certifications and Listings | CSA Listed,UL Listed |
