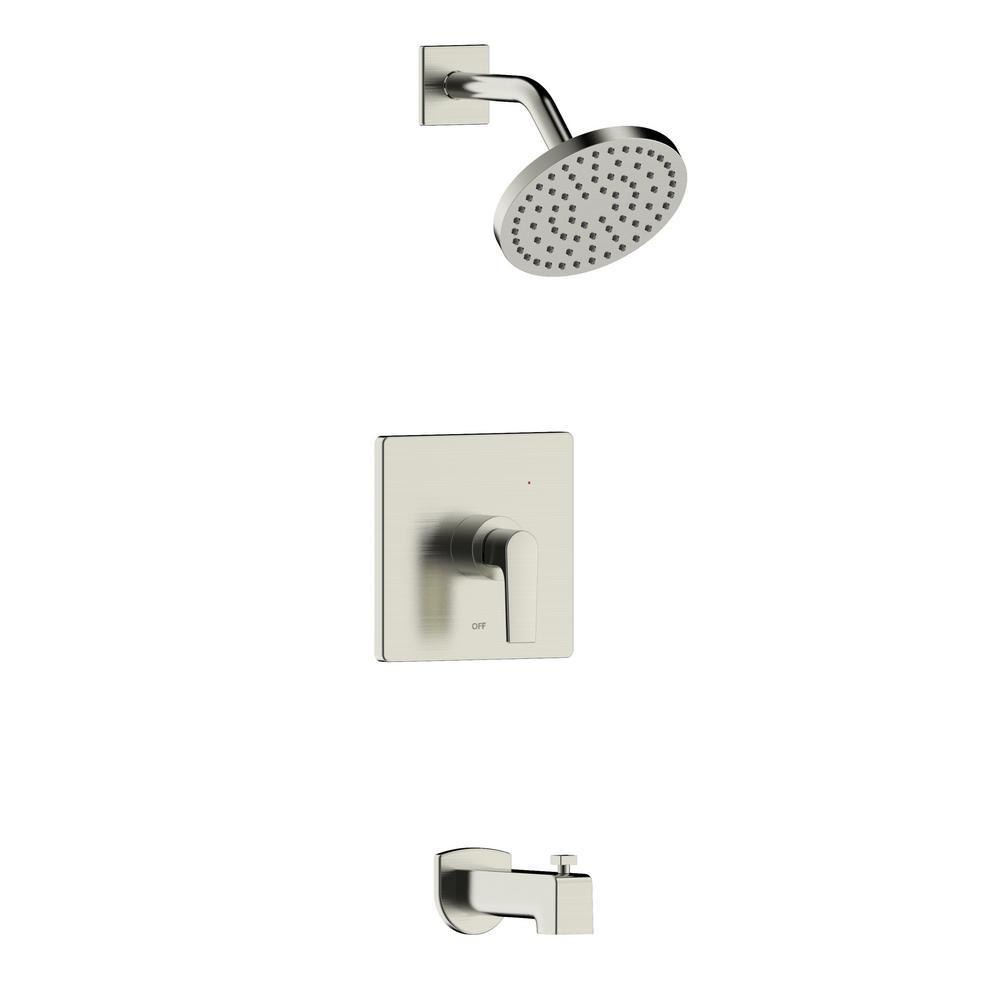

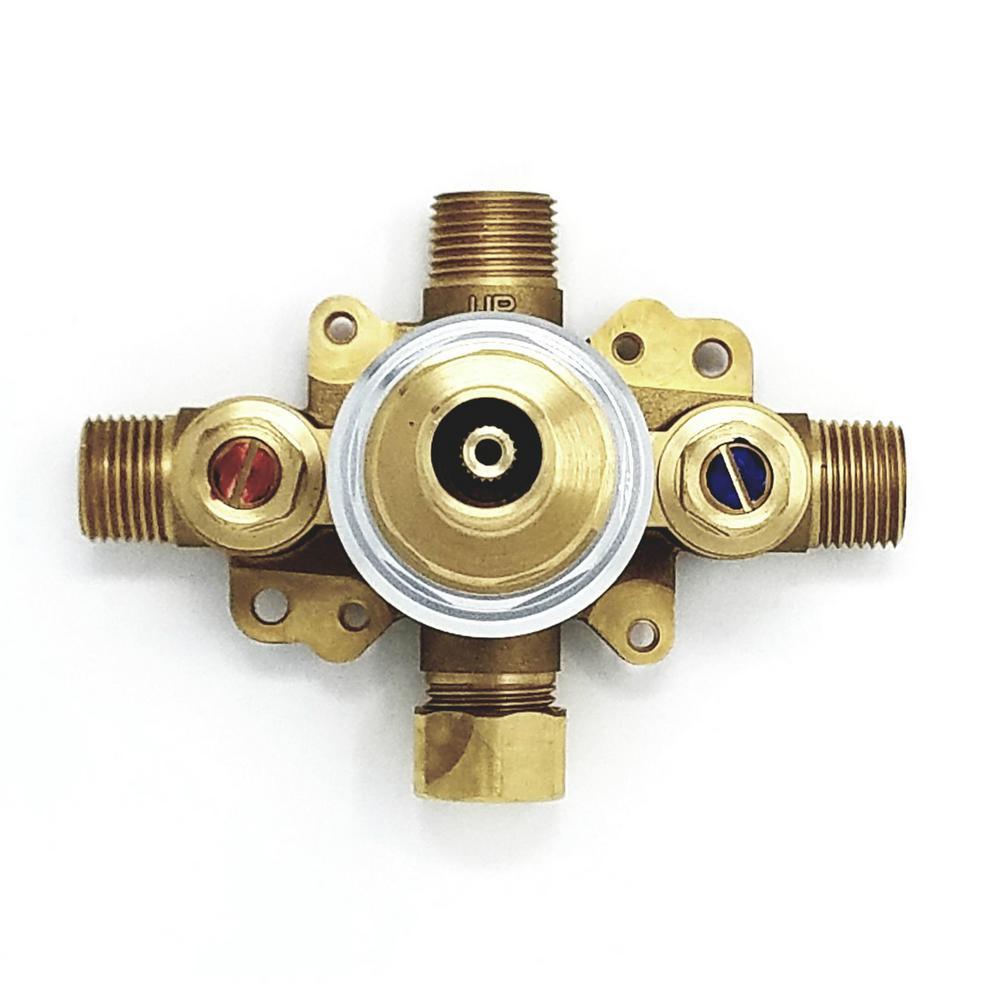

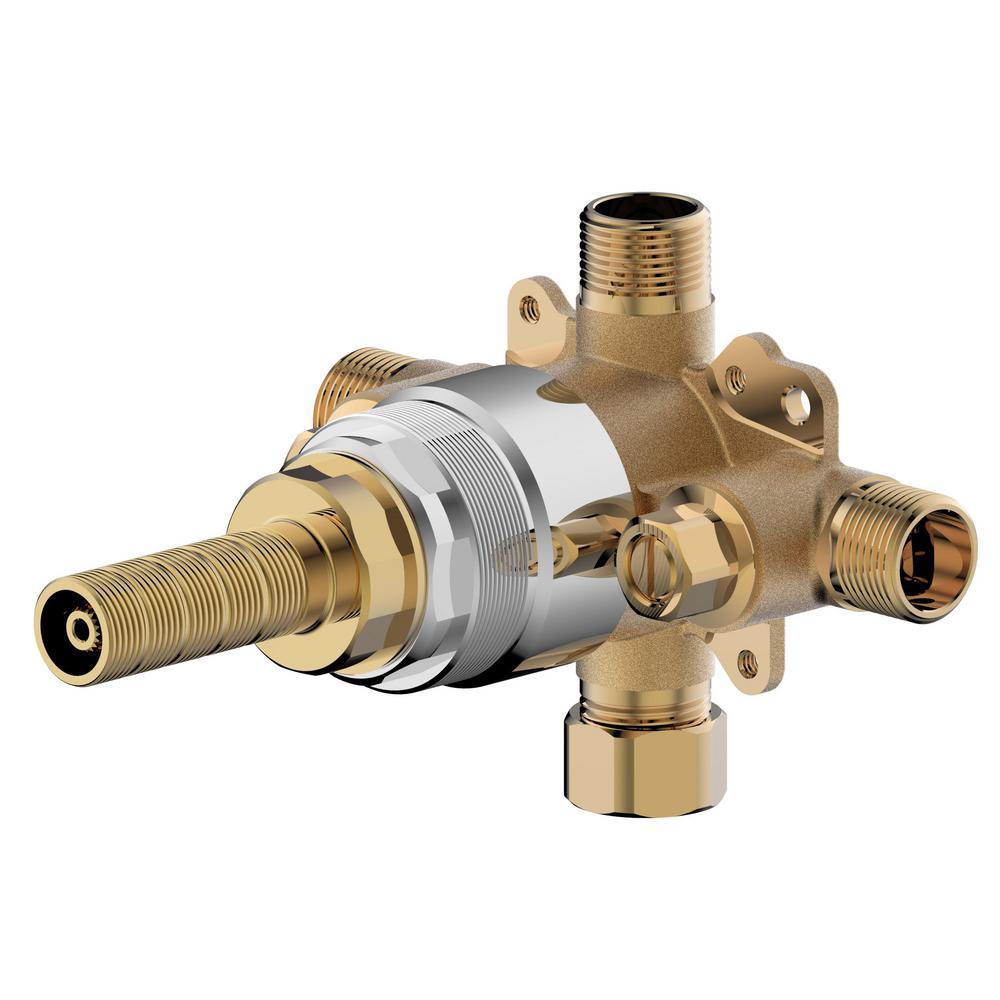

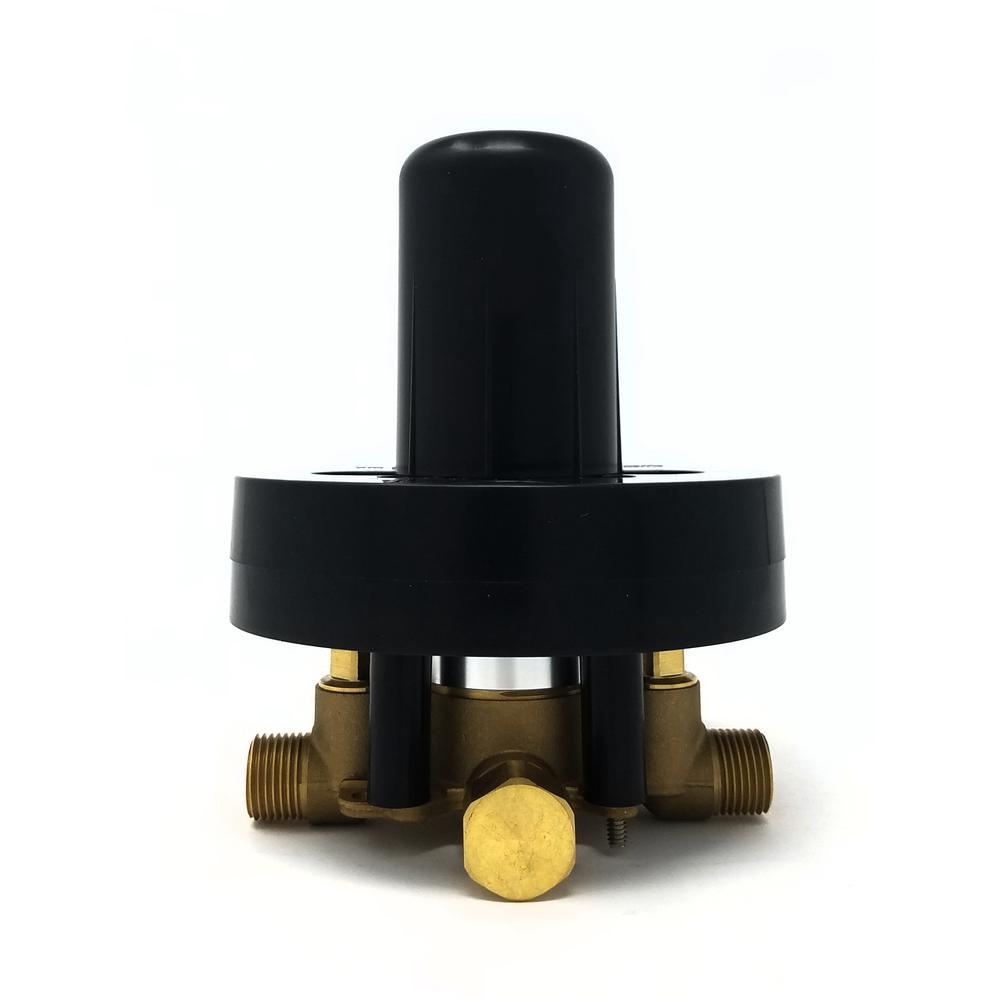

Italia Faucets is proud to present its new "Chatelet" Series. This single handle, tub and shower trim set with rough-in valve comes in four finishes; chrome, brushed nickel, oil rubbed bronze, matte black. The set includes: 1) 6 inch diameter Round Rain Shower Head with Self-Cleaning Tips, 2) Shower Arm with Wall Flange, 3) Escutcheon Plate with "Hot" and "C" indicators, 4) Decorative Control Handle, 5) tub spout, 6) Pressure Balance Rough-In Valve. The rough-in valve has a disposable plaster guard assisting in setting the depth of the valve in the wall and to protect the valve from tile plaster. Simply remove 2 screws once set. The valve has 4 ports: 1) Hot Water, 2) Cold Water, 3) Tub and 4) Shower. A cap is provided to plug the tub port. The solid cast brass valve body has convenient mounting holes. Integral stops allow you to isolate valve so that water main can be left on during valve maintenance. The square shower head with self-cleaning rubber tips prevents and removes build-up of scale.
- Single function 6" rain shower head
- Drip-Free Ceramic Disc Cartridge
- includes: Pressure Balance Valve with Ceramic Disc Cartridge, escutcheon/valve plate, valve handle and sleeve
- IAPMO certified, ANSI/ASME A112.18.1; CSA B125; ANSI/NSF 61-Sec. 9; IAPMO/UPC; ADA; California AB1953 and ADA compliant
- .5 in. IPS inlet connection
- Tub spout with slip fit for easy installation
-
Features
| Item Weight |
5.8 |
| Flow rate (gallons per minute) |
1.8 |
| Spray Pattern |
Full |
| Included Components |
All Mounting Hardware,Anti-Scald Valve,Handles,Pressure Balance/Scald Guard |
| Color Family |
Satin Nickel |
| Shower Head Size |
Large |
| Spout Reach (in.) |
6 in |
| Diverter type |
1 way |
| Color/Finish |
Brushed Nickel |
| Returnable |
180-Day |
| Shower Head Shape |
Round |
| Number of Faucet Handles |
Single Handle |
| Mounting Type |
Wall Mount |
| Number of Spray Patterns |
1 |
| Number of Spray Settings |
1 |
| Handle Type |
Lever |
| Spout Type |
Shower/tub diverter |
| Features |
Ceramic Disc Valves,Pressure Balance |
| Connection size (in.) |
1/2 In. |
| Showerhead face diameter (in.) |
6 |
| Manufacturer Warranty |
10-Year Limited |
| Certifications and Listings |
ADA Compliant,CSA Certified,IAPMO Certified |
