CH 20 Amp 1-Pole Circuit Breaker with Trip Flag - Super Arbor

CH 20 Amp 1-Pole Circuit Breaker with Trip Flag

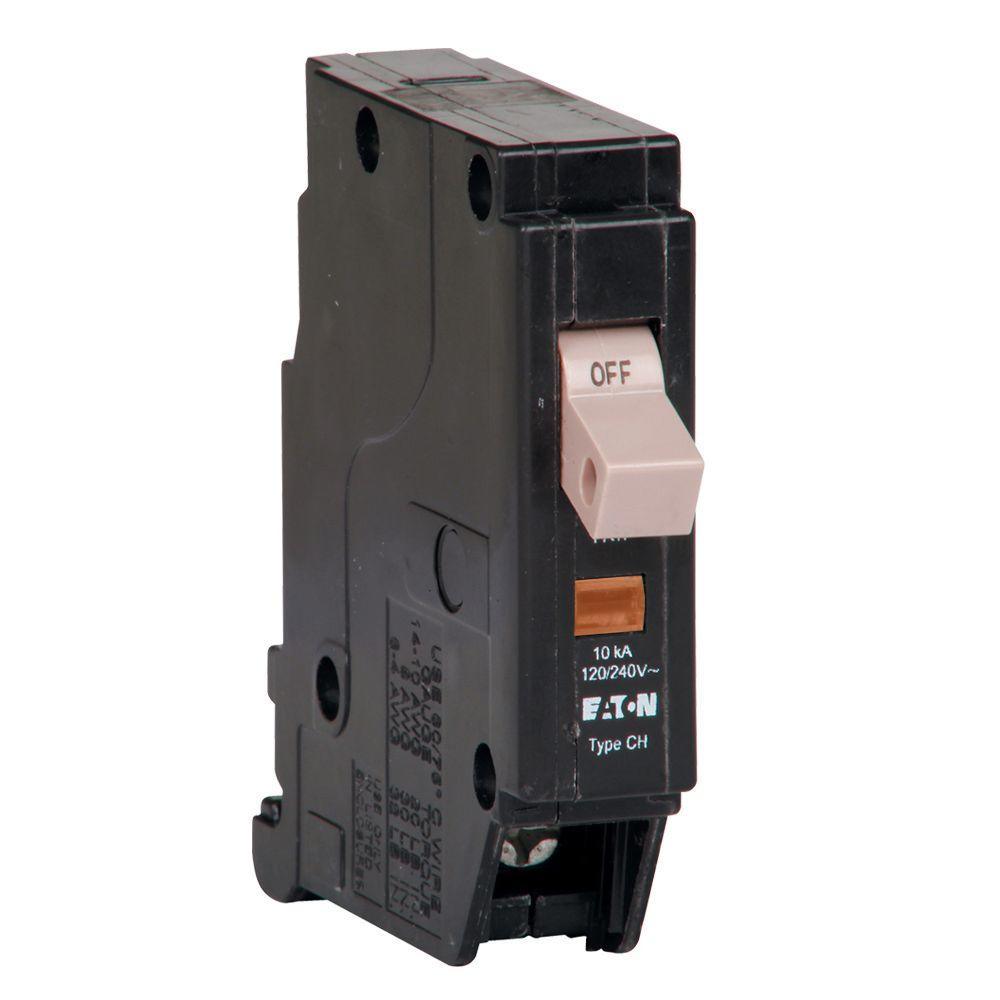

Name: CH 20 Amp 1-Pole Circuit Breaker with Trip Flag
Brand: In Stock Hardwarestore Delivery
SKU: 204223325
Price: 7.99 USD
Availability: InStock

$7.99

Shipping calculated at checkout.

[{"id":43332298506398,"title":"Standard Trip \/ .3 \/ 20","option1":"Standard Trip","option2":".3","option3":"20","sku":"204223325","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CH 20 Amp 1-Pole Circuit Breaker with Trip Flag - Standard Trip \/ .3 \/ 20","public_title":"Standard Trip \/ .3 \/ 20","options":["Standard Trip",".3","20"],"price":799,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"578384","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43332298539166,"title":"Standard Trip \/ .3 \/ 15","option1":"Standard Trip","option2":".3","option3":"15","sku":"204223323","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CH 20 Amp 1-Pole Circuit Breaker with Trip Flag - Standard Trip \/ .3 \/ 15","public_title":"Standard Trip \/ .3 \/ 15","options":["Standard Trip",".3","15"],"price":799,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"578383","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43332298604702,"title":"Standard Trip \/ .3 \/ 30","option1":"Standard Trip","option2":".3","option3":"30","sku":"204223328","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CH 20 Amp 1-Pole Circuit Breaker with Trip Flag - Standard Trip \/ .3 \/ 30","public_title":"Standard Trip \/ .3 \/ 30","options":["Standard Trip",".3","30"],"price":798,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"578385","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive "Trip to OFF" and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.

Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
Amperage rating: 20 Amp
3/4 in. single pole breaker

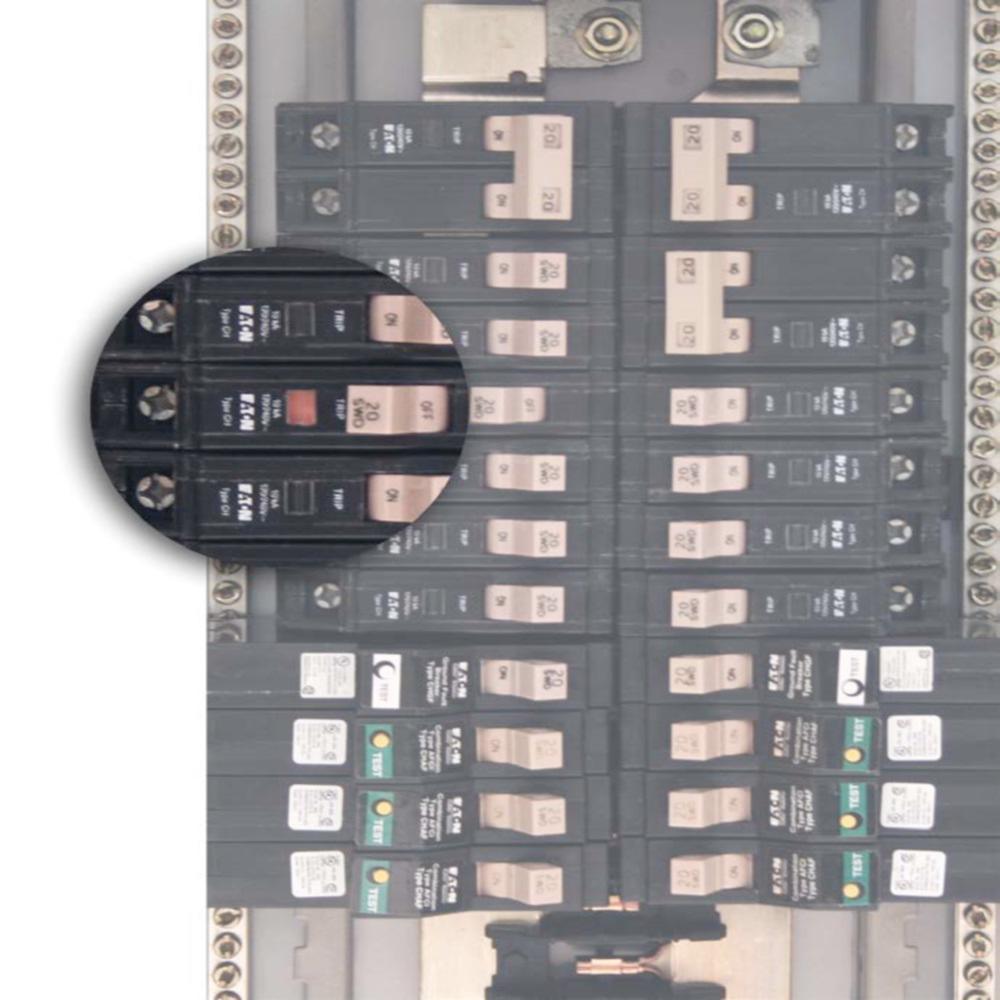

Flag visually confirms tripped status, making it easy for the homeowner to identify

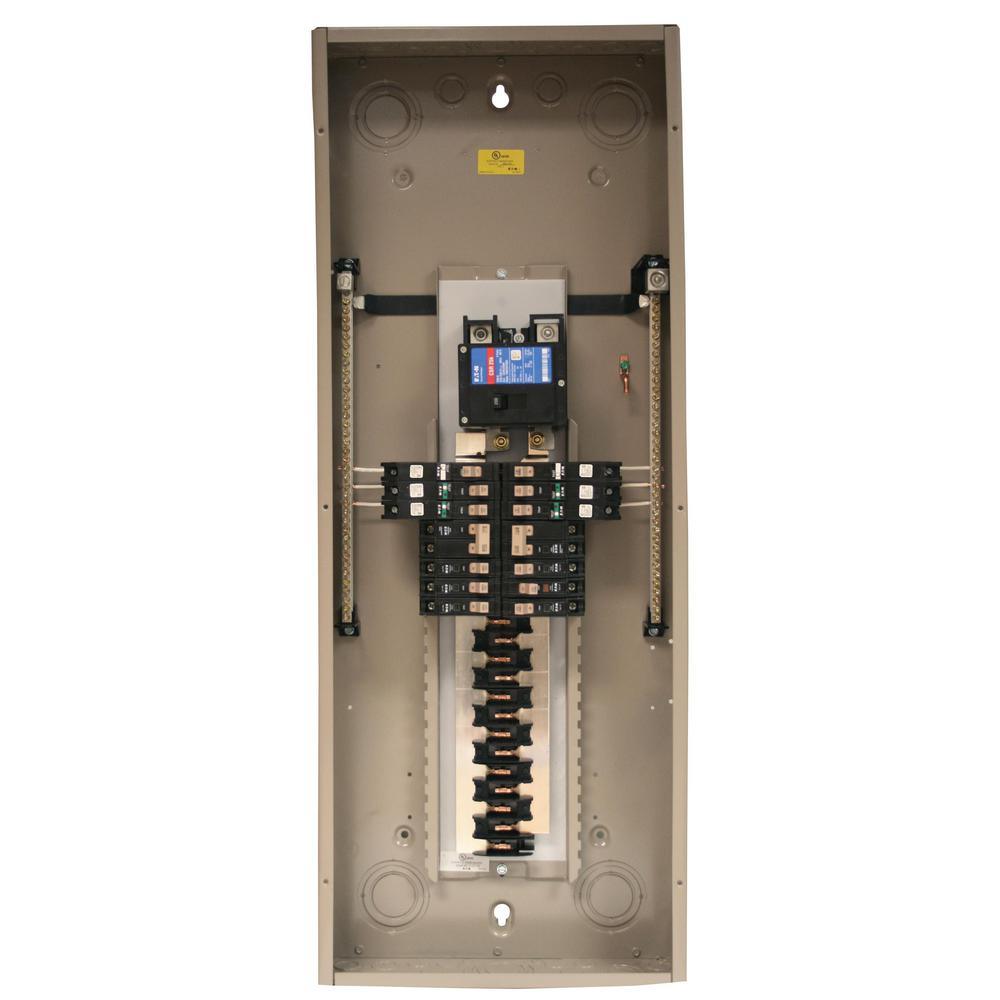

For use in type CH load centers only
Interrupt rating - 10 kAIC
Voltage rating is 120/240-Volt
(1) #14-8, (2) #14-10 AWG Cu/Al 60°C or 75°C
HACR rated

Features

Item Weight	.3
Voltage (volts)	240
Product Weight (lb.)	0.3
Power Distribution Features	Trip Indicator
Pack Size	1
Number of Poles	1
Mounting Type	Plug In
Returnable	180-Day
Interruption Type	Standard Trip
Breaker Type	Single Pole
Maximum Amperage (amps)	20
Electrical Product Type	Breaker
Product Depth (in.)	3.50
Product Width (in.)	0.75
Product Height (in.)	3.25
Certifications and Listings	ANSI Certified,UL Listed
Manufacturer Warranty	Limited Lifetime Warranty according to the Warranty Policy
