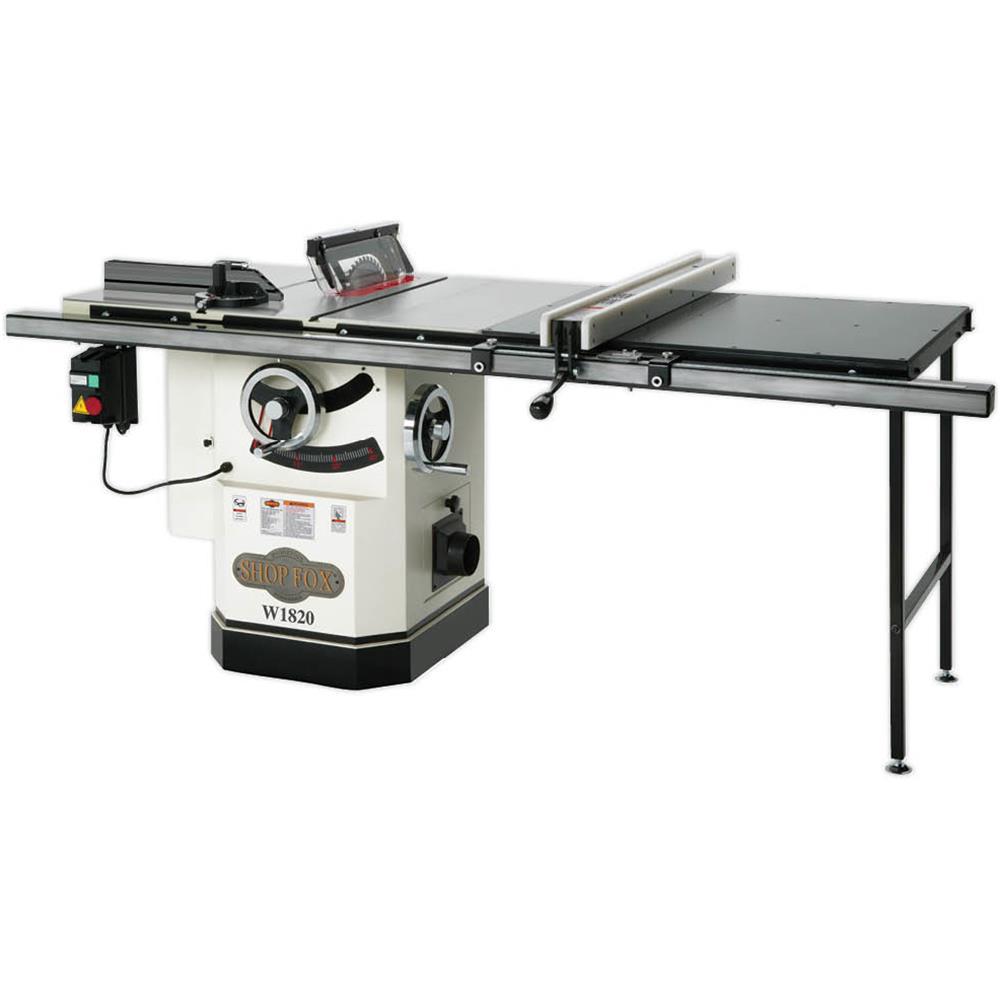

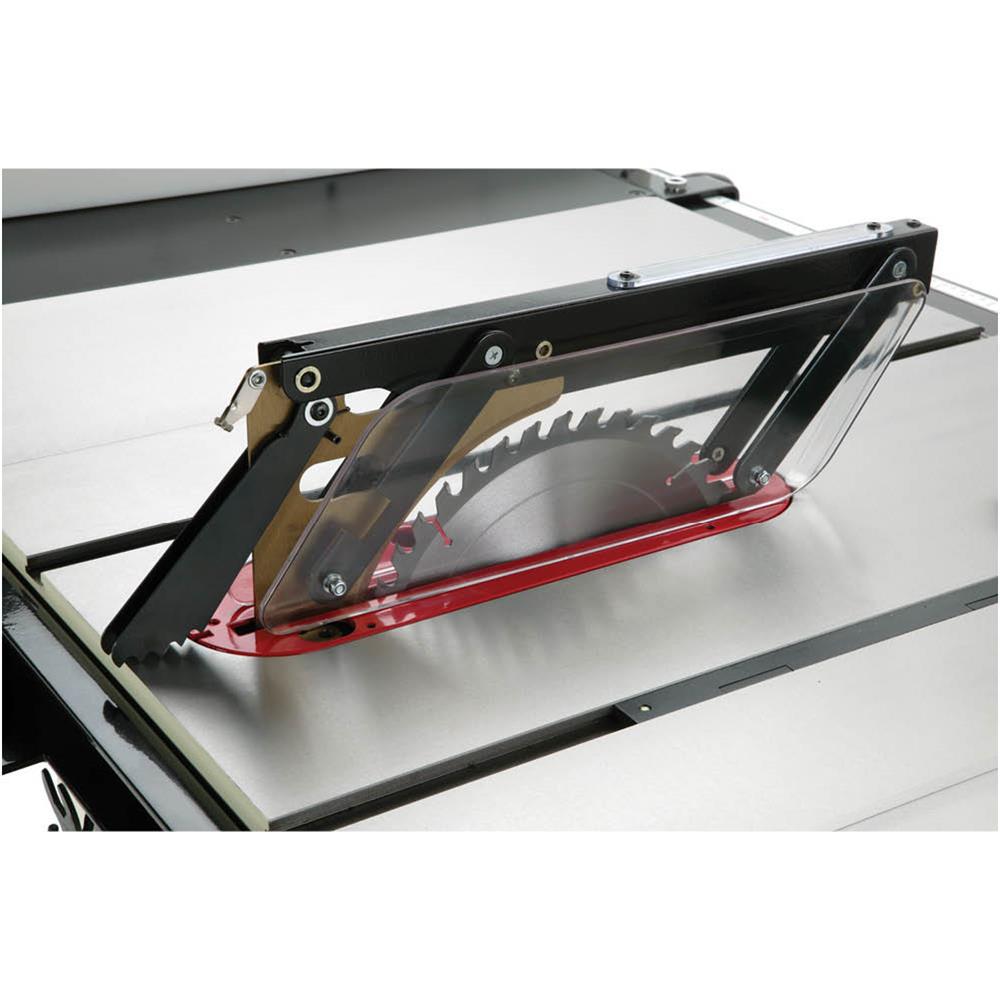

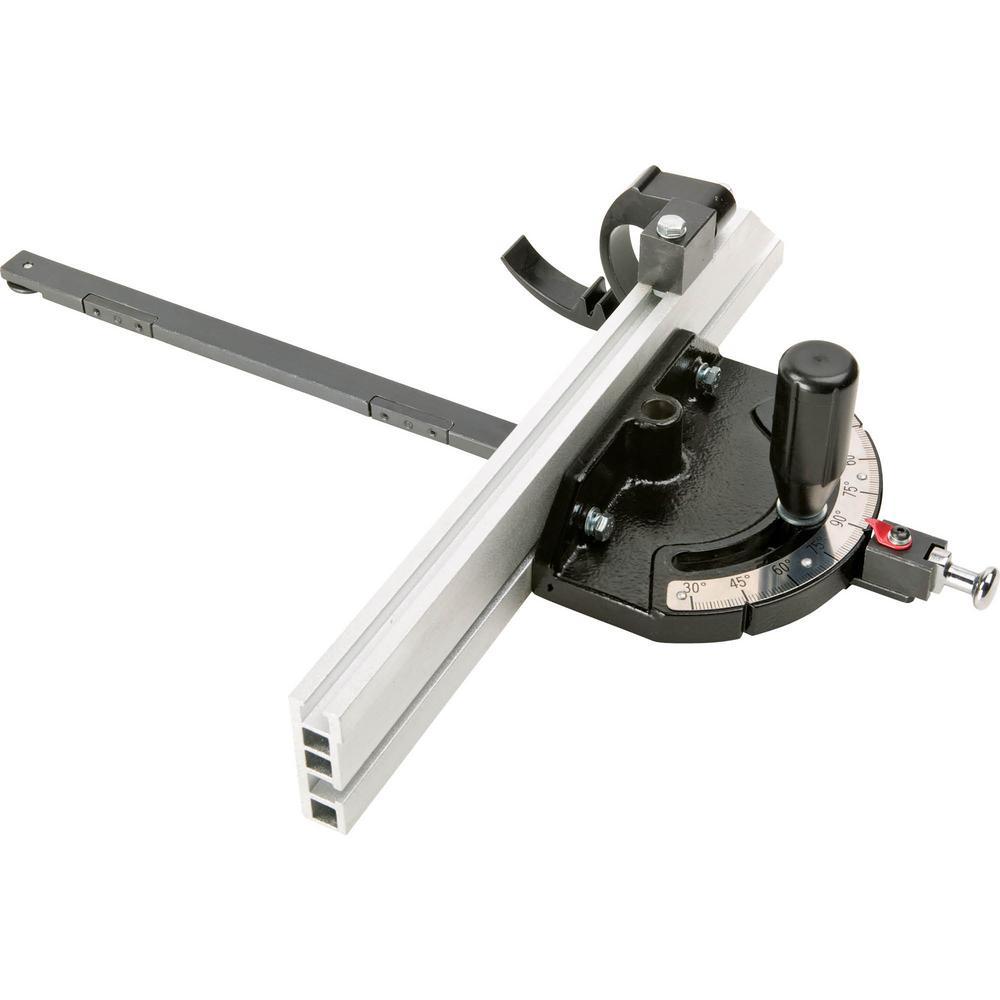

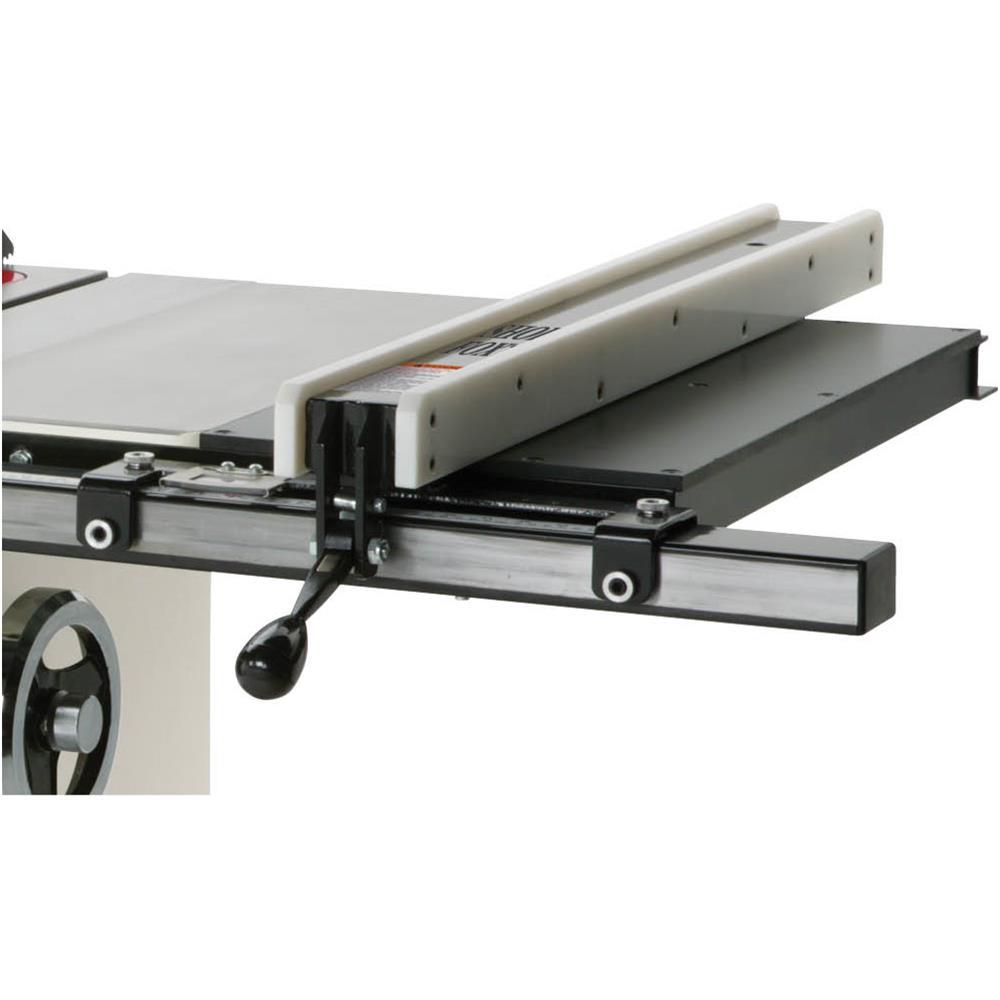

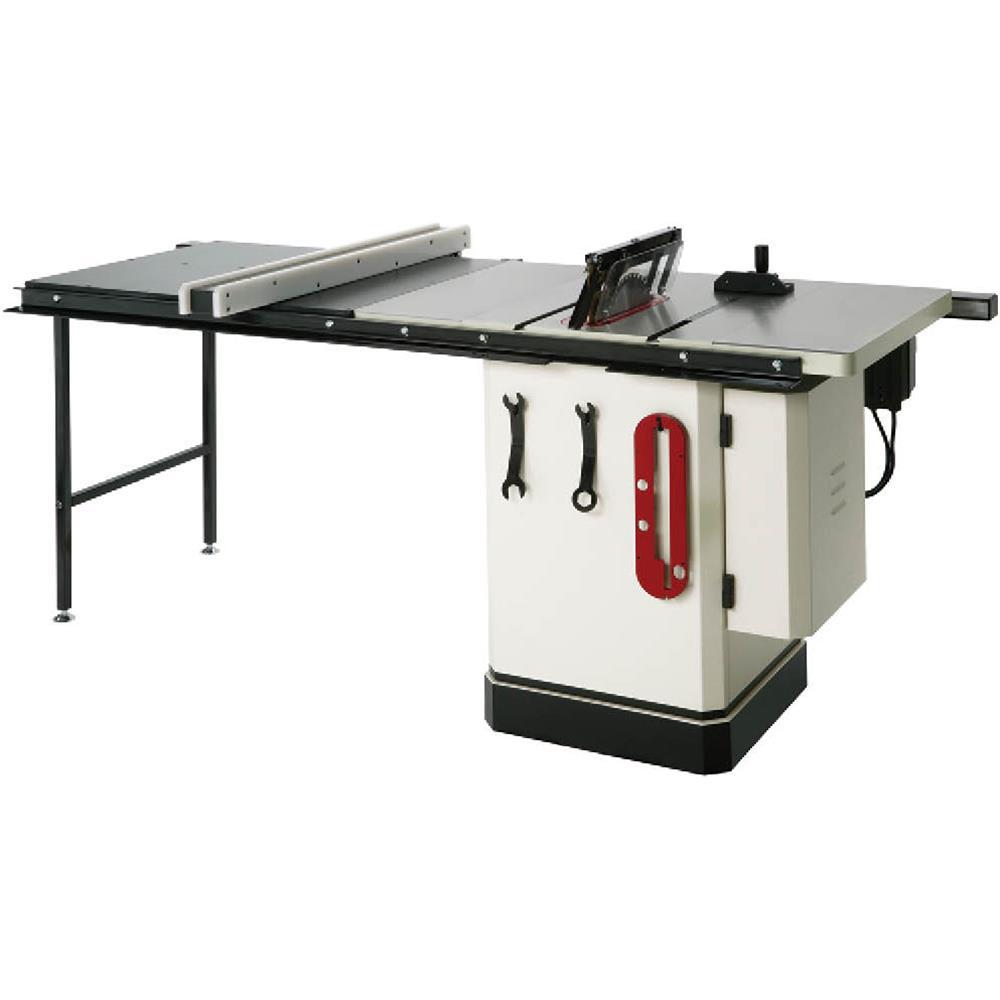

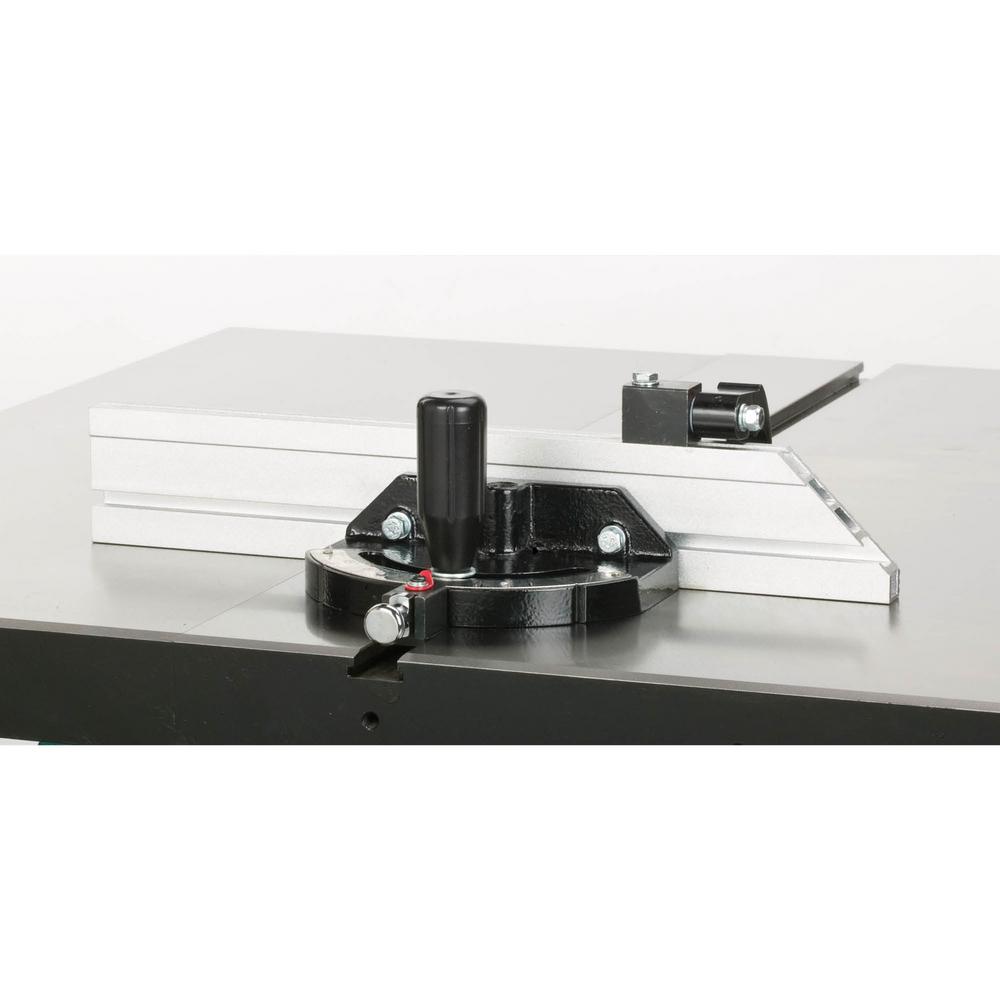

Every part of this saw says quality and performance. From the heavy-duty cast-iron trunnions, 3 HP motor and triple-belt drive to the massive cast-iron table and wings, this table saw is built to last a lifetime. You'll also appreciate the camlock T-fence, included riving knife, heavy cast handwheels, magnetic switch, T-slot miter gauge with fence extension and flip stop and 4 in. dust collection port. Features an extra-wide 49 in. rip capacity more than enough to rip to the center of a standard sheet of plywood, a long extension table with adjustable legs, square steel tubing frame and dimensionally stable extension table.
California residents
Motor: 3 HP, 230-Volt, single-phase, 12.8 Amp
Blade tilt: 0° to 45° left
Arbor size: 5/8 in.
Arbor speed: 4300 RPM
Cast-iron table size: 27 in. x 40-1/4 in.
Table size with extension: 27 in. x 74 in.
Features
Item Weight
507
Maximum Speed (rpm)
4300
Table Tilt Right Max (degrees)
0
Blade Diameter (in.)
10
Blade Speed
4300 RPM
Included Accessories
Stand
Cordless/ Corded
Corded
PT Horsepower (Hp)
3
Bench & Stationary Tool Type
Table Saw
Blade Location
Centered
Condition
New
Product Weight (lb.)
507 lb
Horsepower (hp)
3 hp
Cord Length (ft.)
6
Depth Control
Adjustable
Portability
Stationary
Cuts Through
Wood
Power Tool Features
Lockout Power Switch
Construction Material
Cast Iron
Returnable
180-Day
Dust Collection Method
4 in. Dust Port
Rip Capacity - Right
29.5 in
Maximum Cut Depth @ 45 Deg.
2.19 in
Tools Product Type
Power Tool
Rip Capacity - Left
13.5 in
Table Tilt Left Max (degrees)
0
Color Family
White
Amperage (amps)
12.8 A
Table Length (in.)
27
Product Height (in.)
40 in
Product Depth (in.)
45.5 in
Work Table Surface
27 in. x 53.38 in.
Table Width (in.)
53.38
Product Width (in.)
62 in
Maximum Cut Depth @ 90 Deg.
3.13 in
Manufacturer Warranty
2
Certifications and Listings
CSA Certified,UL Certified
