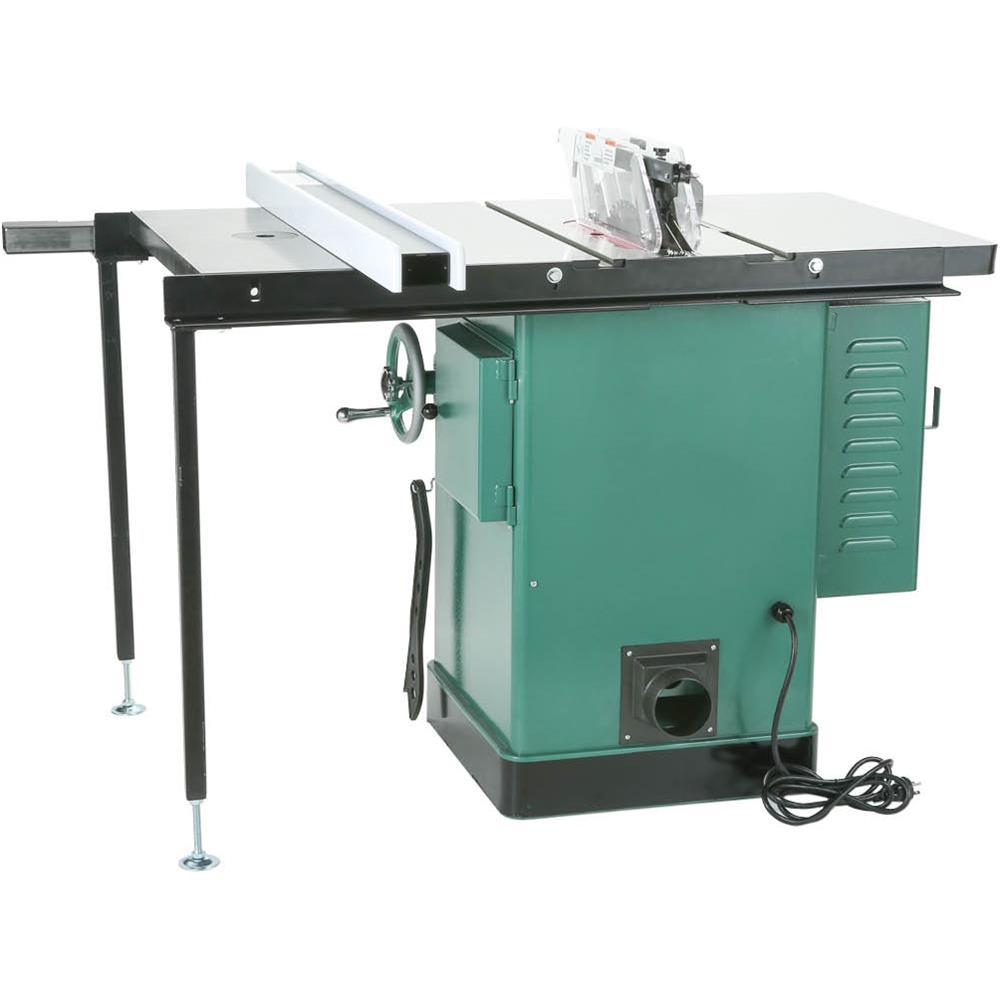

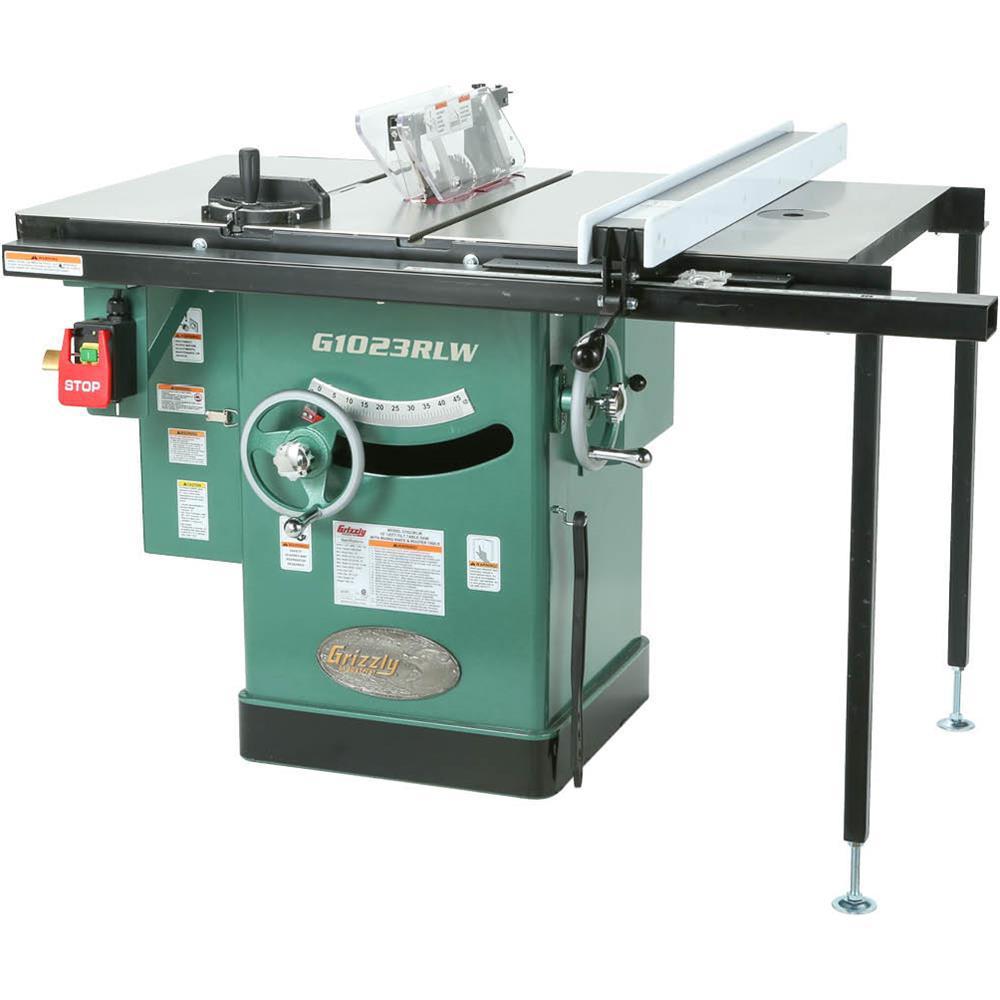

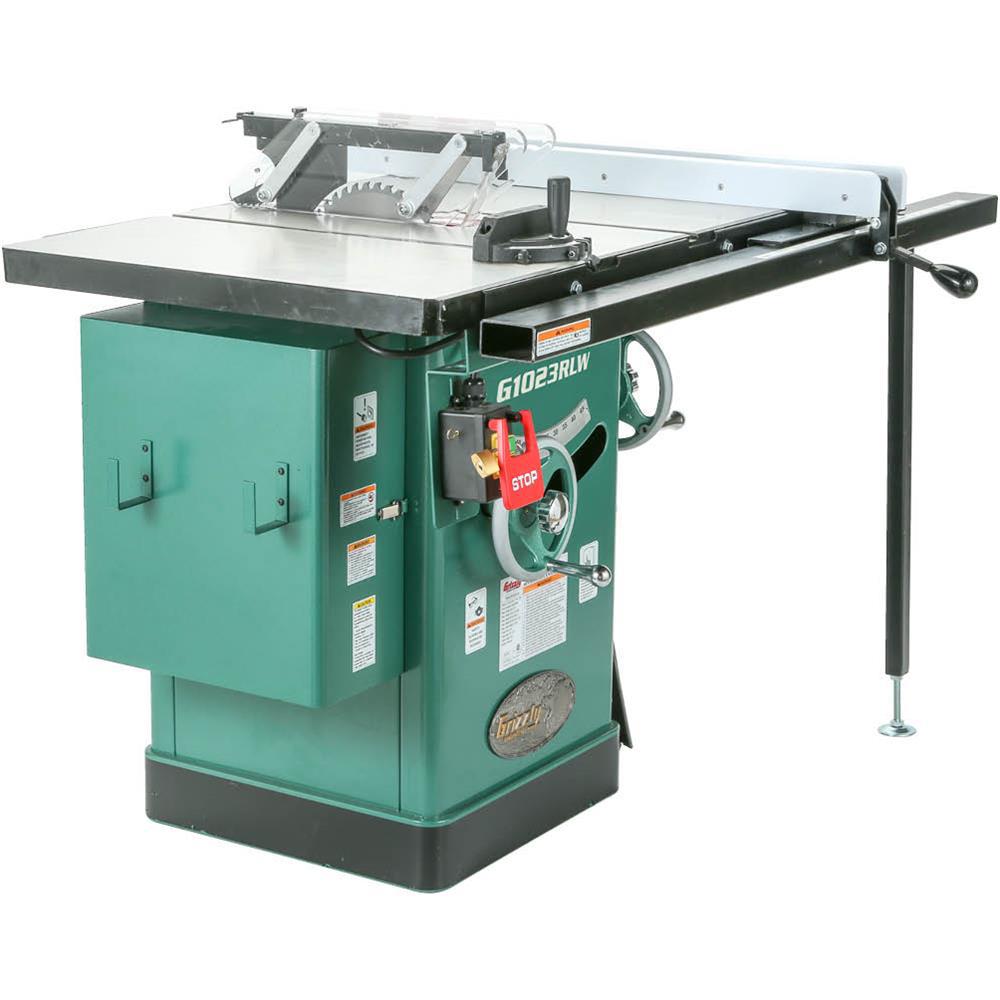

10 in. 3 HP 240-Volt Cabinet Left-Tilting Table Saw

$1,800.00

/
Shipping calculated at checkout.

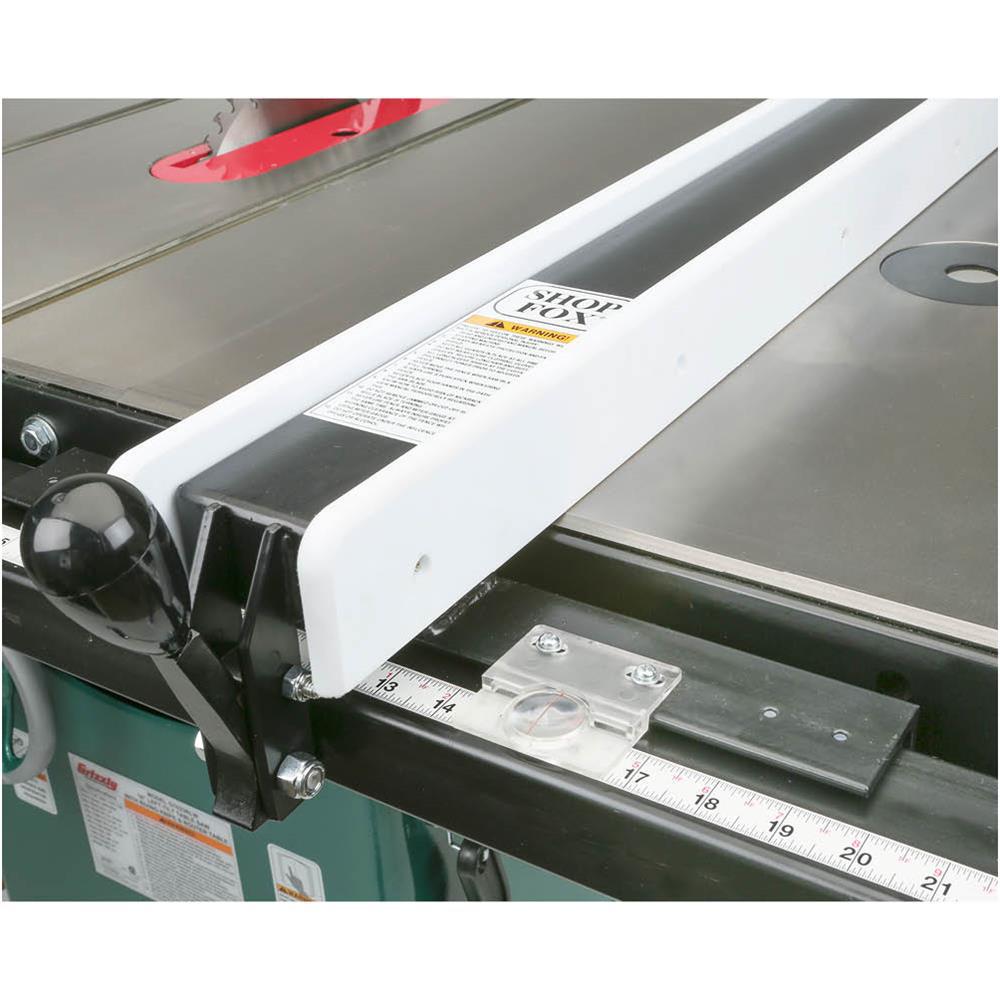

We took our new G1023RL table saw with riving knife and made it even better by including a built-in router table that doubles as a table extension wing. The router table includes support legs and universal T-track router clamping system and the Shop Fox Classic Fence included for the table saw doubles as a router table fence. You'll find that using this system is actually much nicer and more convenient than using a typical router table or hand held router for those cuts where the fence is not required to be offset, especially if the table saw is set up with large outfeed tables. Another great advantage is being able to make laser straight dadoes without having to change table saw blades. CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards. Features: Motor: 3 HP, 240-Volt, single-phase, 14 Amp. Solid cast-iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror like finish. Fully assembled table size: 48 in. W x 27 in. D. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up 7/8 in. Extra large handwheels are the heaviest in the industry and really ease arbor movement. Includes 10 in. x 40T blade.
  • California residents
  • 1-piece steel cabinet type stand

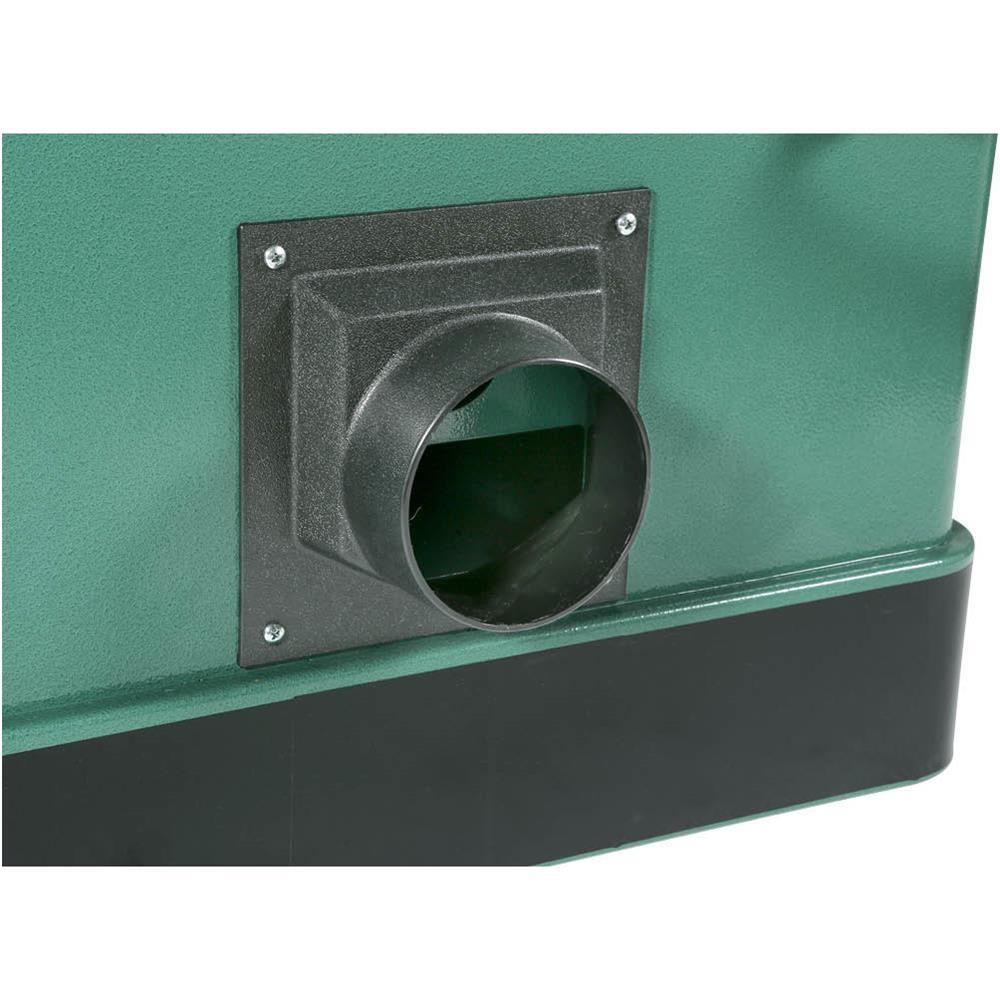

  • 4 in. dust port
  • Extra-large cast-iron handwheels and lock
  • Heavy-duty miter gauge
  • Smooth and quiet poly-V serpentine belt system
  • Precision-ground cast-iron table with beveled edge

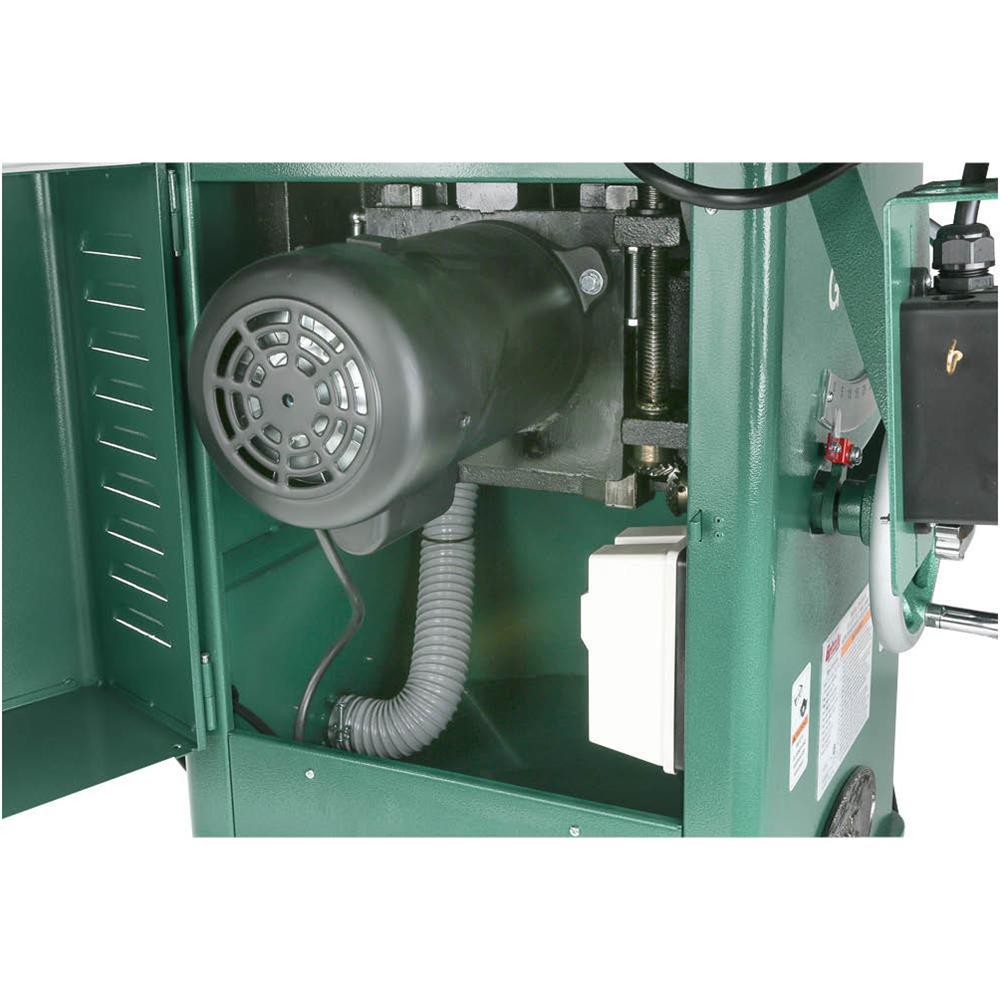

  • Hinged motor cover
  • All machined cast-iron internal structure
  • Quick-release blade guard and spreader
  • Powder coated paint
  • Magnetic safety switch protects motor and operator
  • Angled dust chute in bottom of stand
  • All sealed ball bearing construction
  • Table has T-slots so your miter gauge will not fall off the table when retracted

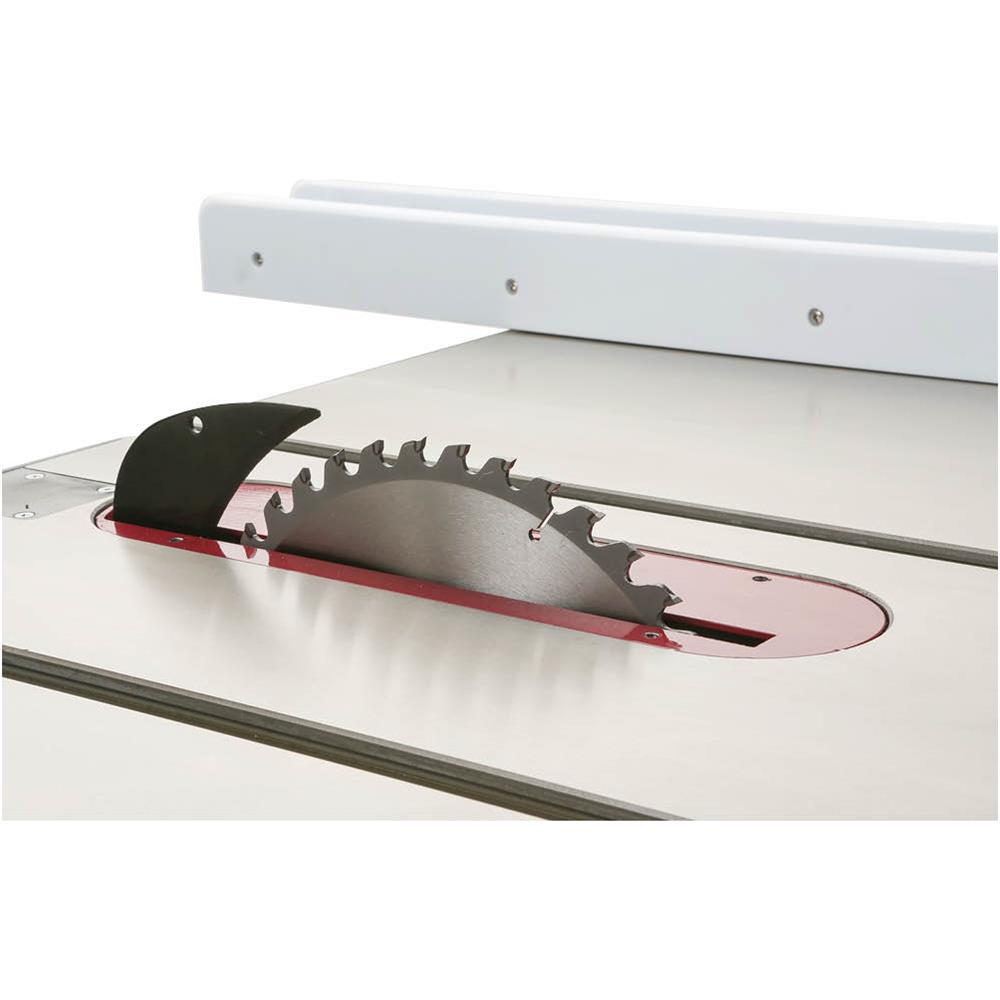

  • Riving knife included
  • Inboard and outboard arbor bearing
  • 2 table inserts for blade and dado
  • Cast-iron router table extension


Features
Item Weight 509
Rip Capacity - Right 32
Maximum Cut Depth @ 45 Deg. 2.13
Blade Speed 4200
Table Tilt Right Max (degrees) 0
Blade Diameter (in.) 10
Table Tilt Left Max (degrees) 45
Horsepower (hp) 3
Cordless/ Corded Corded
PT Horsepower (Hp) 3
Bench & Stationary Tool Type Table Saw
Blade Location Centered
Color Family Multi-Colored
Condition New
Product Weight (lb.) 509
Depth Control Adjustable
Portability Stationary
Cuts Through Wood
Maximum Speed (rpm) 4200
Amperage (amps) 14 A
Power Tool Features Blade Guard System,Stand Included
Construction Material Cast Iron
Cord Length (ft.) 10
Returnable 180-Day
Dust Collection Method 4 in. Dust Port
Included Accessories Blade Guard System,Blades
Tools Product Type Power Tool
Rip Capacity - Left 8
Maximum Cut Depth @ 90 Deg. 3
Table Length (in.) 48
Product Height (in.) 39.75
Product Depth (in.) 47
Table Width (in.) 48
Product Width (in.) 47
Work Table Surface 48 in. x 48 in.
Manufacturer Warranty 1 Year
