Prime-Line White Steel Left Single-Arm Casement Window Operator For Steel Framed Windows
Regular price $17.99/
Shipping calculated at checkout.

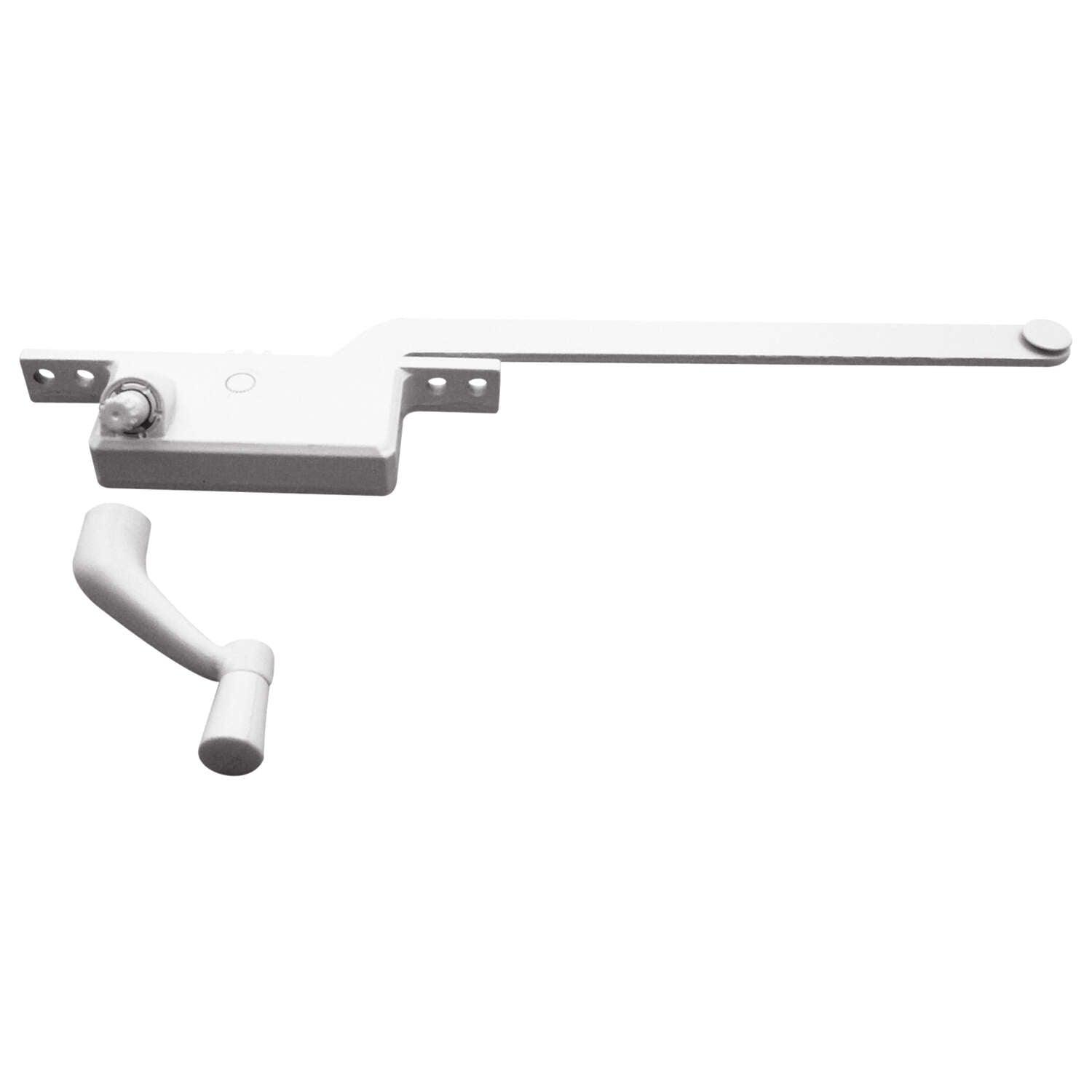

This casement window operator is a left-handed bronze square body type. It has a 9 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. apart.
- Left handed square body crank handle (viewed from inside looking out)
- Mounting holes are 3-7/8 in. and 4-3/4 in. on center
- Arm is 9 in. from middle of the guide button to the middle of the crank operator while closed
- Heavy duty diecast zinc construction with a white finish
- Steel worm drive gear for durability
- Matching crank handle is included
- A Phillips head screwdriver is required for installation

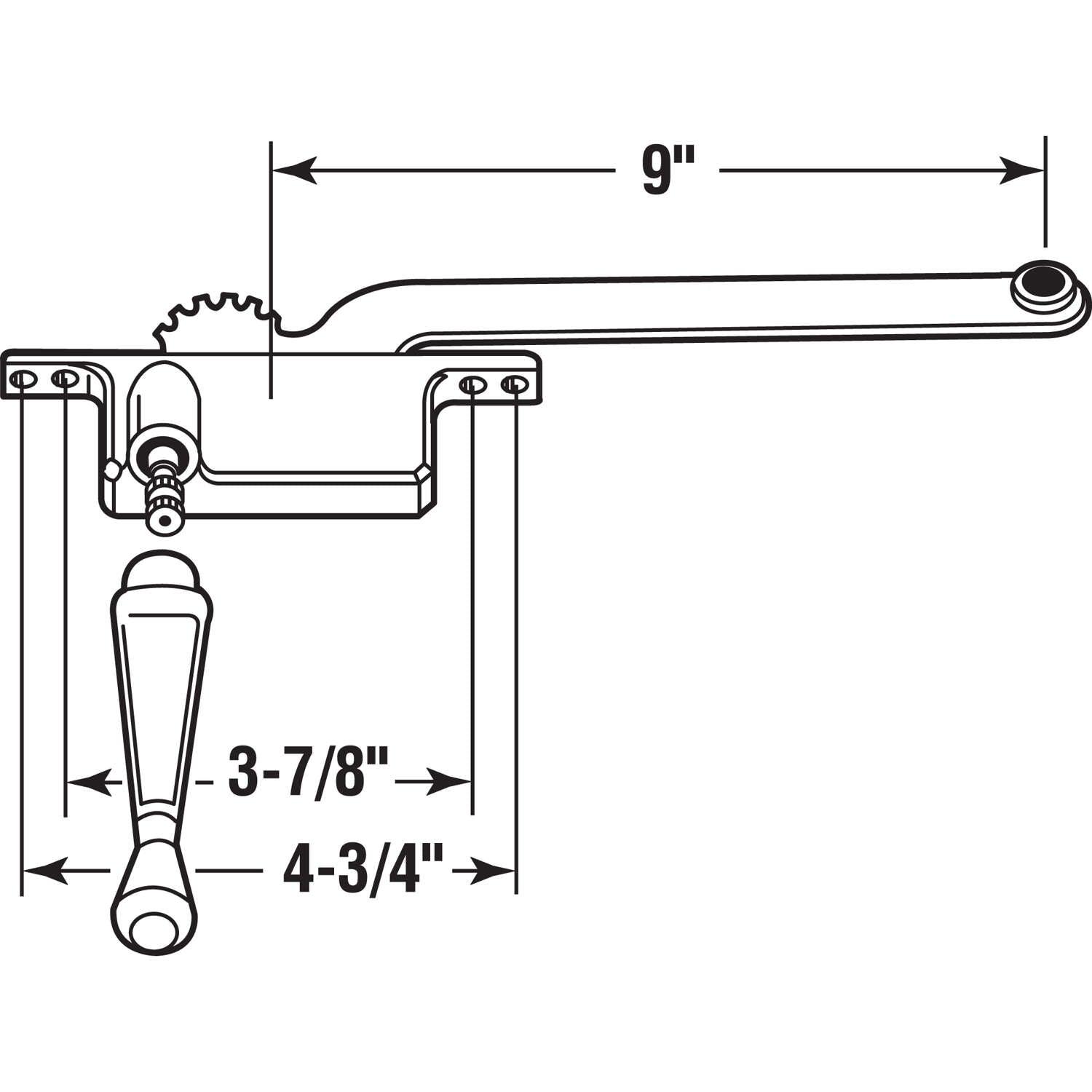

- For further dimensional information, please see the line drawing
Features
| Country Of Origin | TW |
| Department Number | 5 |
| Feature 10 Text | |
| Feature 1 Text | Left handed square body crank handle (viewed from |
| Feature 2 Text | Mounting holes are 3-7/8 in. and 4-3/4 in. on cent |
| Feature 3 Text | Arm is 9 in. from middle of the guide button to th |
| Feature 4 Text | Heavy duty diecast zinc construction with a white |
| Feature 5 Text | Steel worm drive gear for durability |
| Feature 6 Text | Matching crank handle is included |
| Feature 7 Text | A Phillips head screwdriver is required for instal |
| Feature 8 Text | For further dimensional information, please see th |
| Feature 9 Text | |
| Item Restriction Flag | N |
| Product Source Code | B |
| Product Type | Window Operator |
| Sub-category | Window Operators and Cranks |
| Shipping Code | Y |
| Vendor Name | PRIME-LINE PRODUCTS/SLIDE-CO |
| Vendor Number | 05746 |
| Web Order Multiple | 1 |
| ISPU Only Item Flag | N |
| Category | Window and Screen Hardware |
| Merchandise Class Description | WINDOW HARDWARE |
| Product Group Description | CASEMENT/JALOUSIE HDWE |
| Product Type Noun | Operator |
| Search Field | Prime-Line White Steel Left Single-Arm Casement Wi |
| Sales Rank | 034 |
| Assembly Code | N |
| Delivery Offered | Y |
| Display Only Item | N |
| Dollar Velocity Code | D |
| Product Type Code | 005012001011 |
| Proposition 65 Flag | N |
| Retail Velocity Code | D |
| Store Availability Rank | 08 |
| Unit Velocity Code | X |
| Proposition 65 Warning | |
| What's Included | |
| DIFM Service Code | N |
| Warranty Code | N |
| Old Default Base SKU | |
| Paint Code | N |
| Default Base SKU | |
| Accessory SKUs | |
| Replacement Part SKUs | |
| Brand Name | Prime-Line |
| Local SKU Available Stores | ALL |
| Local SKU Store SKUs | 5197942 |
| Reviews | 1 |
| Customer Rating | 1 |
| Brand Compatibility | steel-framed-windows |
| Color | white |
| Diameter | 3/8-inch |
| Handle Type | single-arm-casement |
| Length | 9-inch |
| Material | steel |
| Number in Package | 1-pack |
| Orientation | left |
| Packaging Type | carded |
