Prime-Line Steel Universal Roller Assembly For Guaranteed Products
Regular price $17.99/
Shipping calculated at checkout.

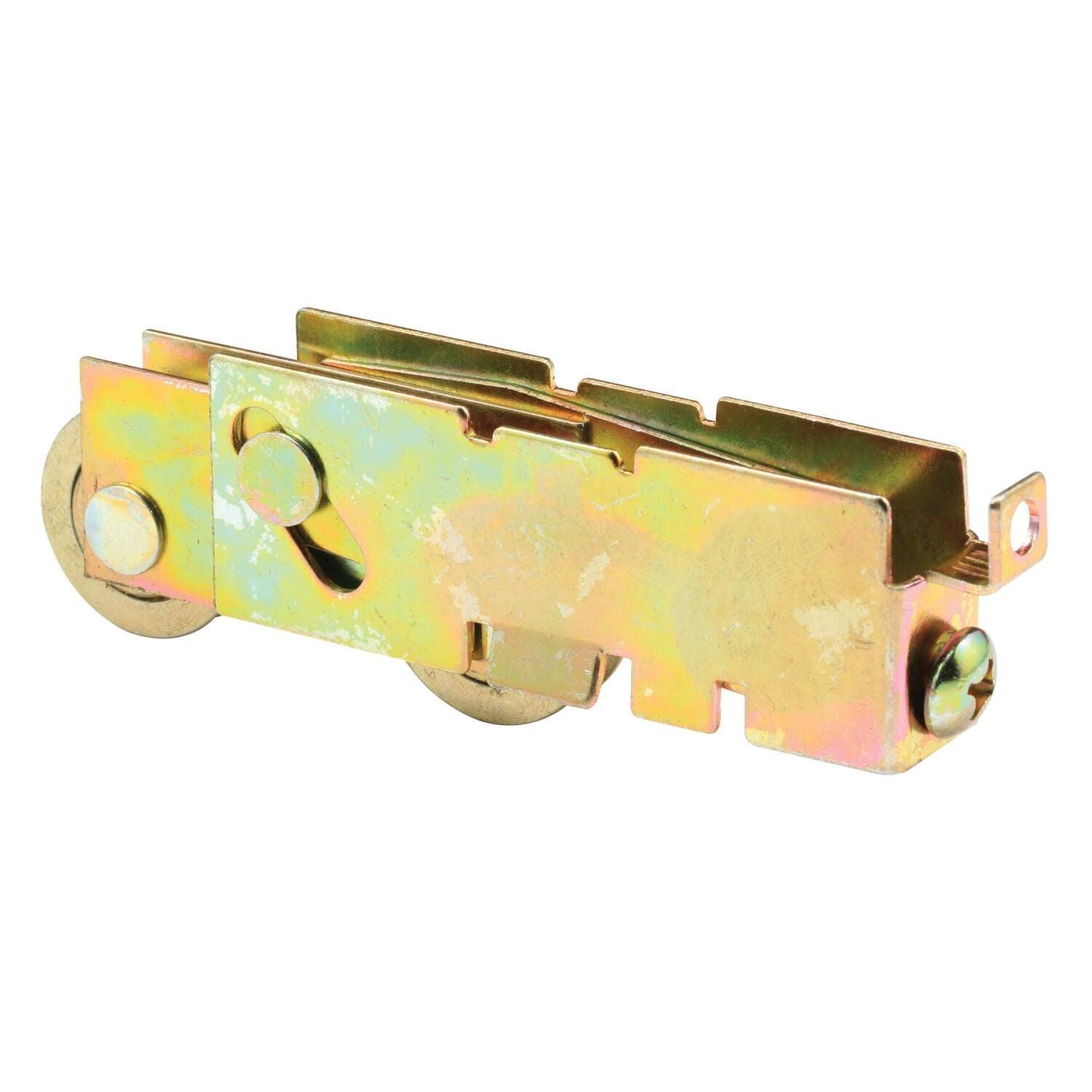

This is a F-tab tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 in. wide with a 13/16 in. flare, 1-1/8 in. tall and 3-1/8 in. long. Used by a variety of sliding patio door manufacturers.
- Used by a variety of sliding patio door manufacturers
- When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/8 in. diameter tandem concave rollers
- Stamped steel with steel ball bearing
- Rear adjustment screw
- Allows the door to roll smoothly
- A Phillips head screwdriver is required for installation

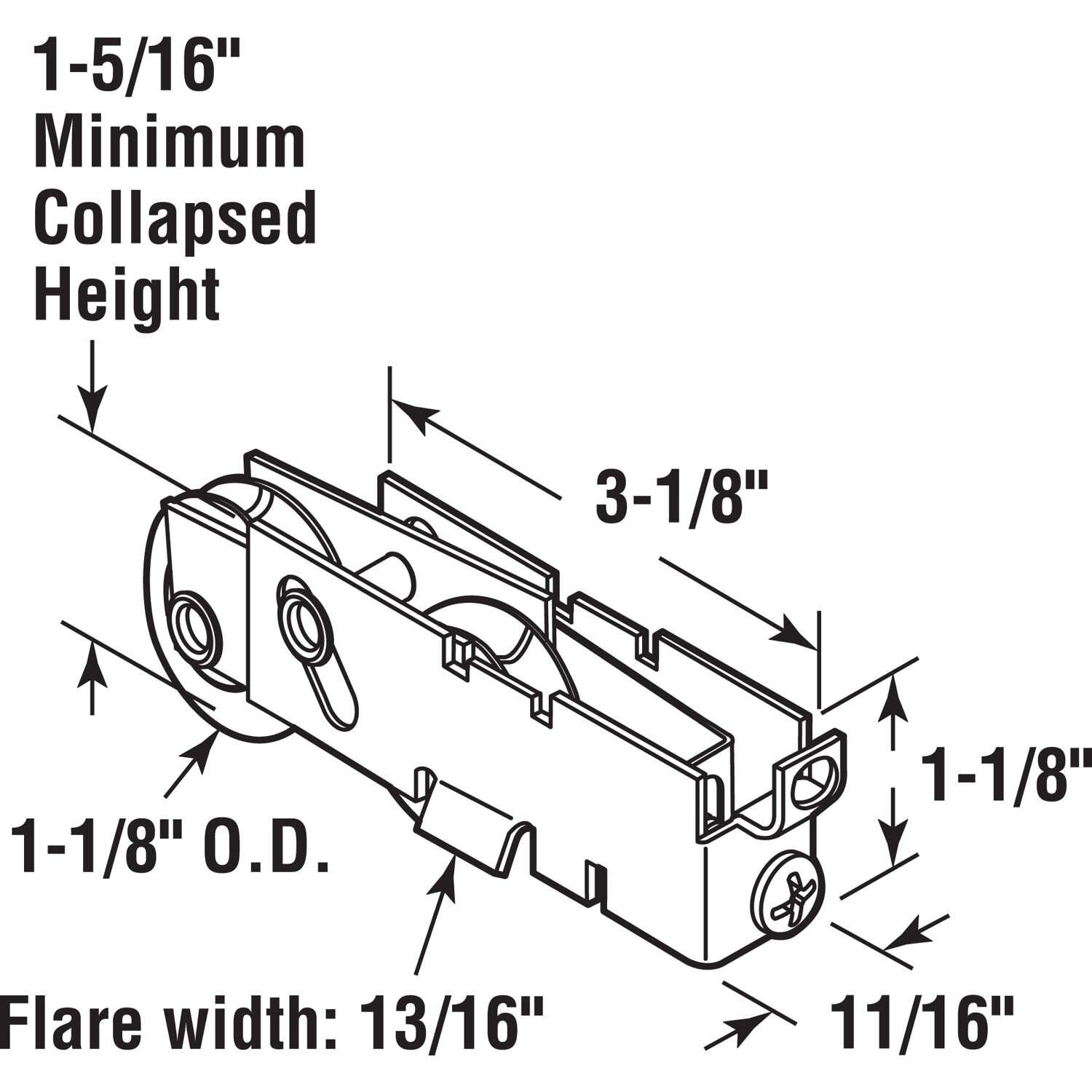

- For further dimensional information, please see the line drawing
Features
| Assembly Code | N |
| Country Of Origin | CN |
| Delivery Offered | Y |
| Department Number | 5 |
| Display Only Item | N |
| Dollar Velocity Code | X |
| Feature 10 Text | |
| Feature 1 Text | Used by a variety of sliding patio door manufactur |
| Feature 2 Text | When the corner screw passes through the F-tab the |
| Feature 3 Text | 1-1/8 in. diameter tandem concave rollers |
| Feature 4 Text | Stamped steel with steel ball bearing |
| Feature 5 Text | Rear adjustment screw |
| Feature 6 Text | Allows the door to roll smoothly |
| Feature 7 Text | A Phillips head screwdriver is required for instal |
| Feature 8 Text | For further dimensional information, please see th |
| Feature 9 Text | |
| Item Restriction Flag | N |
| Product Source Code | B |
| Product Type | Roller Assembly |
| Product Type Code | 005012001011 |
| Sub-category | Window Operators and Cranks |
| Proposition 65 Flag | N |
| Retail Velocity Code | D |
| Shipping Code | Y |
| Store Availability Rank | 10 |
| Unit Velocity Code | X |
| Vendor Name | PRIME-LINE PRODUCTS/SLIDE-CO |
| Vendor Number | 05746 |
| Web Order Multiple | 1 |
| Proposition 65 Warning | |
| ISPU Only Item Flag | N |
| Category | Window and Screen Hardware |
| Merchandise Class Description | DOOR HARDWARE |
| Product Group Description | PATIO DOOR ROLLERS |
| Product Type Noun | Assembly |
| Search Field | Prime-Line Steel Universal Roller Assembly For Gua |
| Sales Rank | 035 |
| What's Included | |
| DIFM Service Code | N |
| Warranty Code | N |
| Old Default Base SKU | |
| Paint Code | N |
| Default Base SKU | |
| Accessory SKUs | |
| Replacement Part SKUs | |
| Brand Name | Prime-Line |
| Local SKU Available Stores | ALL |
| Local SKU Store SKUs | 5887351 |
| Brand Compatibility | guaranteed-products |
| Diameter | 1.13-inch |
| Handle Type | universal |
| Length | 3-1/8-inch |
| Material | steel |
| Number in Package | 1-pack |
| Packaging Type | carded |
| Width | 0.31-inch |
